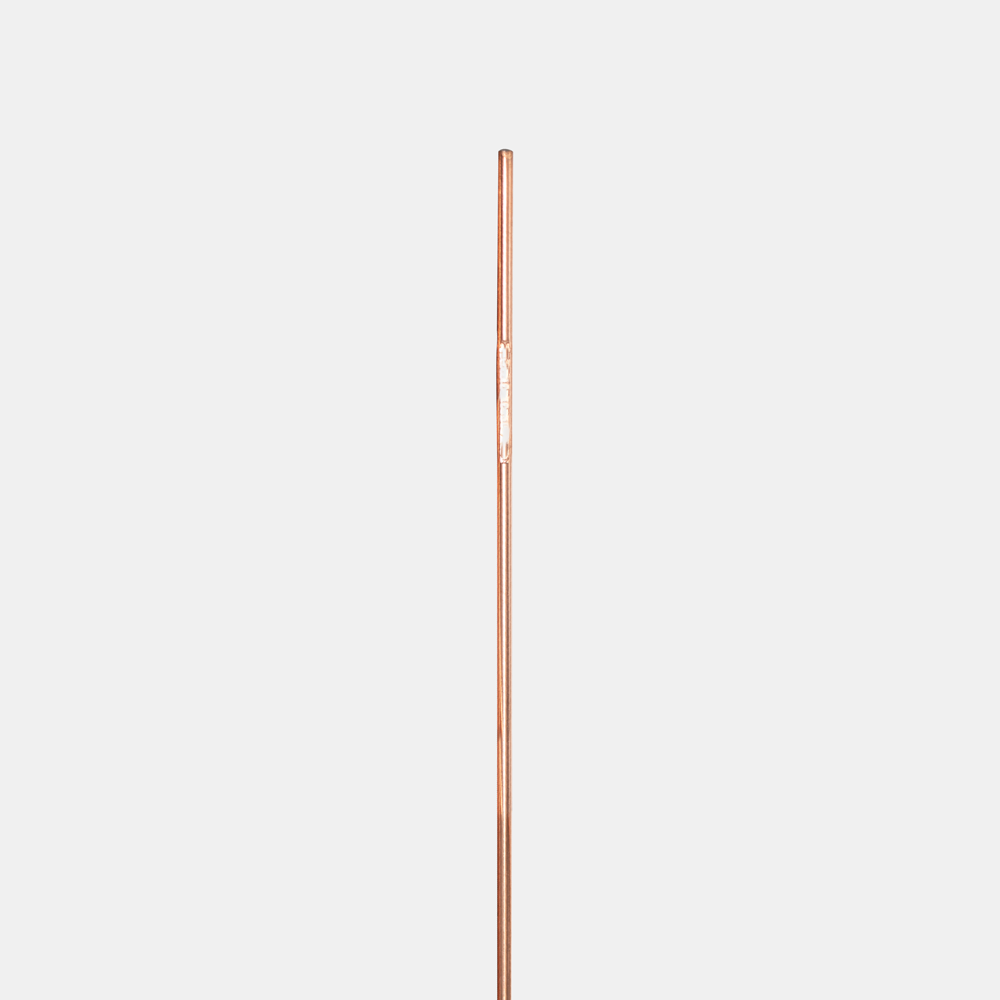

80S-B6 is a low alloy Cr-Mo filler commonly used in the oil and chemical industries where base metal such as 5% Cr, 1/2% Mo steels are found. Typical base metals found in this group are ASTM grades: A182-F5/F5a, A336-F5/F5a, A199-T-5, A200-T5, A213-T5, A335-P5, A369-FP5, A426-CP5, A217-C5, and A387-Gr5. Controlled preheat, interpass and postheat treatment may be needed. 80S-B6 is similar to the previously classified ER502 in AWS A5.9-93. USA 80S-B6 (502) is used for welding AISI type 502 stainless steels and 5% chrome moly steels.
-
Tensile Strength: 80,000 psi min.
-
Yield Strength: 68,000 psi min.
-
Elongation: 17% in 2 in
-
Diameter: 0.045 in.
-
Length: 36 in
-
Weight: 10 lb
-
Material Composition: Chromium 4.5-6.0%, Molybdenum 0.45-0.65%, Carbon 0.10% max, Manganese 0.40-0.70%, Silicon 0.50% max, Phosphorus 0.025% max, Sulfur 0.025% max, Nickel 0.60% max, Copper 0.35% max
-
Welding Process Compatibility: GMAW, GTAW
-
Typical Base Metals: ASTM A182-F5/F5a, A336-F5/F5a, A199-T-5, A200-T5, A213-T5, A335-P5, A369-FP5, A426-CP5, A217-C5, A387-Gr5
-
Compliance: AWS A5.28 ER80S-B6, ASME SFA 5.28 ER 80S-B6
-
ISO Certification: ISO 9001:2008
Downloads
Product sheetSafety Data SheetCertificate
