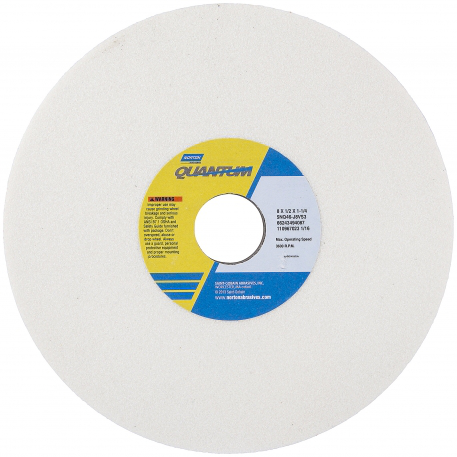

Norton Abrasives, 66253387219, Toolroom Grinding Wheel, Type 01; 14 in; Ceramic Alumina; 5 In. Arbor; 1-1/2 In. Thickness

Finish parts accurately with the Quantum Vitrium3 5NQ CA Type 01 toolroom wheel, which provides a low cycle and process time for precise production grinding. The straight wheel has a proprietary engineered ceramic grain suitable for low- to high-force applications on hard-to-grind metals. A high-performance Vitrium3 bond cuts coolly at high speeds, providing excellent form holding during toolroom, cylindrical or surface grinding on metals as diverse as cast iron, stainless steel, titanium and Inconel. Replace your grinding wheel less frequently thanks to a 33 to 100 percent longer life and 15 percent lower threshold power compared to competitive ceramic products.

Markets

• Manufacturing & Industry
• Metal Fabrication/Welding
• Energy & Environment
• Transportation
• Home & Leisure
• Medical Industry
• Collision Repair
• Paint & Drywall

Applications

• Stock Removal
• Tool and Cutter Grinding
• Tool Sharpening
• Surface Grinding

Materials

• Hard Carbon Steels
• Cast Iron
• 400 Series Stainless
• Tool Steels
• Super Alloys
• Ductile Iron
• Gray Iron
• Titanium

Machines

• CNC Cutting Tool Machine
• Surface Grinder
• Cylindrical Grinder

Features

• Type 01 straight wheels with revolutionary, proprietary, engineered ceramic grain shape and chemistry for all low-, medium- and high-force applications ranging from cast iron, to stainless steel, and hard-to-grind Inconel and titanium
• 33% to 100% longer life, 30% higher MRR, and 15% lower threshold power vs. competitive ceramic products
• High-performance Vitrium3 bond is a high-speed, cool cutting bond with exceptional form holding; recommended for toolroom, cylindrical, and surface grinding
• Best choice for precision production grinding; achieve highest productivity, lowest cycle and process time, and most accurate finished parts, at the lowest total costs

• Diameter: 14 in.
• Max Operating Speed: 2320 RPM
• Wheel Type: Type 01 straight
• Thickness: 1-1/2 in.
• Arbor Hole: 5 in.
• Material: Ceramic Alumina with Engineered Ceramic Grain
• Bond Type: Vitrium3
• Specifications: 5NQ46-IVS3
