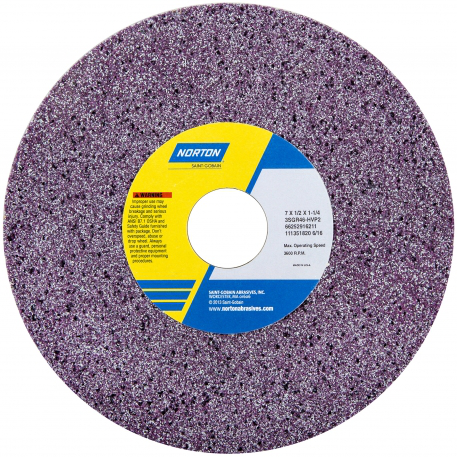

Norton Abrasives, 66252911717, Toolroom Grinding Wheel, 7 in; Ceramic Alumina, Type 01, 1/2 in thick, 1-1/4 in arbor, 3600 RPM

Work efficiently with the SG 3SGP CA Type 01 toolroom wheel, which has a self-sharpening abrasive to minimize burn and dressing and ensure a long wheel life. Made from a blend of ceramic alumina and friable aluminum oxide, this abrasive blend lasts three to five times longer than standard aluminum oxide wheels. A porous vitrified bond pairs with the abrasive for fast stock removal and precise cutting, ideal for grinding heat-sensitive materials, as well as tough-to-grind steels with a very high tensile strength or hardness.

Markets

• Transportation
• Collision Repair
• Energy & Environment
• Medical Industry
• Manufacturing & Industry
• Metal Fabrication/Welding
• Home & Leisure
• Paint & Drywall

Applications

• Stock Removal
• Surface Grinding
• Tool and Cutter Grinding
• Tool Sharpening

Materials

• Gray Iron
• Cast Iron
• 400 Series Stainless
• Hard Carbon Steels
• Tool Steels
• Super Alloys
• Titanium
• Ductile Iron

Features

• Type 01 straight wheels with high-performance ceramic alumina and friable aluminum oxide blend for fast stock removal and cool, superior cutting; last 3 - 5X longer than aluminum oxide wheels; 2X rough stock removal vs. conventional abrasives
• Recommended for: narrow area of contact, high grinding forces and very difficult to grind steels that have a very high hardness or tensile strength
• Proven porous vitrified bond, especially recommended for toolroom and surface grinding on medium to wide areas of contact and heat sensitive materials
• Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production

Machines

• CNC Cutting Tool Machine
• Surface Grinder
• Cylindrical Grinder

• Diameter: 7 in.
• Thickness: 1/2 in.
• Arbor Hole: 1-1/4 in.
• Max Operating Speed RPM: 3600
• Abrasive: Ceramic Alumina, Aluminum Oxide
• Bond Type: Porous vitrified
• Wheel Type: Type 01 straight wheel
• Specifications: 3SGP46-GVSP
• Application: Stock removal
• Suitable For: Heat-sensitive materials, high hardness or tensile strength steels
