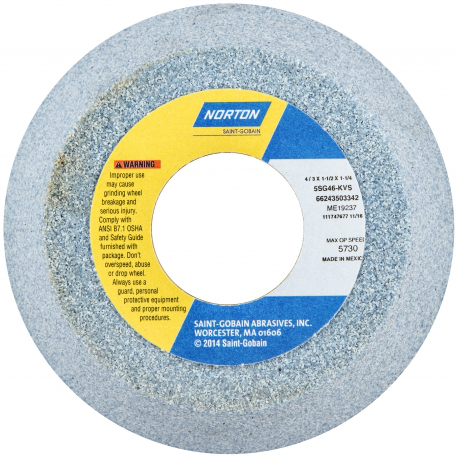

Norton Abrasives, 66243530417, Toolroom Grinding Wheel, Type 11; 4 in; Arbor 1-1/4 in; Ceramic Alumina; 1-1/2 In Thick

Featuring a high-performance, self-sharpening blend of seeded-gel ceramic alumina and friable aluminum oxide abrasives, this cool-running SG 5SG CA Type 11 >4" tool room flaring cup wheel cuts and removes stock at up to twice the rate and with three to five times the life of conventional abrasive wheels, with minimum burn and dressing. A superior bond provides exceptional form holding and allows this versatile wheel to grind a wide range of materials, including super alloys and titanium; cast, ductile and gray iron; and tool, hard carbon and 400-series stainless steels using your CNC and other tool and cutter machines.

Markets

• Manufacturing & Industry
• Medical Industry
• Transportation
• Energy & Environment
• Metal Fabrication/Welding
• Paint & Drywall
• Home & Leisure
• Collision Repair

Materials

• 400 Series Stainless
• Super Alloys
• Hard Carbon Steels
• Gray Iron
• Cast Iron
• Tool Steels
• Titanium
• Ductile Iron

Features

• Type 11 flaring cup wheels with high-performance proprietary ceramic alumina and friable aluminum oxide abrasive blend for cool superior cutting; 3 - 5X more life than aluminum oxide wheels; 2X rough stock removal vs conventional abrasives
• Outstanding choice for high productivity, low total per-part grinding cost on CNC cutting tool and tool and cutter machines
• High performance bond for versatility (for grinding high sped tool steels, hardened and soft steels, and aerospace alloys) and exceptional form holding
• Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production

Applications

• Tool and Cutter Grinding
• Surface Grinding
• Stock Removal
• Tool Sharpening

Machines

• CNC Cutting Tool Machine
• Tool and Cutter Machine

• Wheel type: Type 11 flaring cup
• Diameter: 4 in.
• Arbor hole: 1-1/4 in.
• Thickness: 1-1/2 in.
• Back thickness: 1/2 in.
• Rim: 1/4 in.
• Face profile: Z Face
• Abrasive: Seeded-gel ceramic alumina, Aluminum oxide
• Max Operating Speed RPM: 5730
