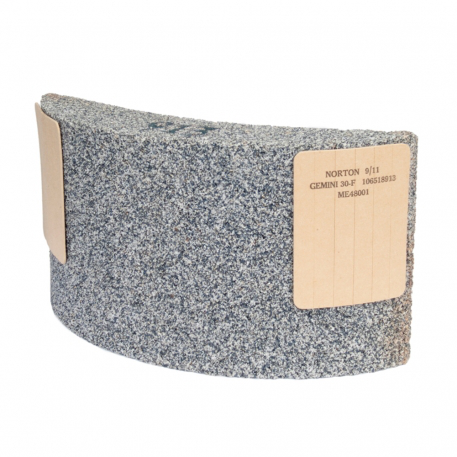

Norton Abrasives, 66243447591, Surface Grinding Segment, Type 31; 8 in Length; 11-1/4 in Width; 2-1/4 in Thickness; Aluminum Oxide

Harness the grinding power of specially blended aluminum oxide abrasive on the Gemini 53A AO surface grinding segment to handle versatile surface grinding jobs. Thanks to a porous vitrified bond, this segment allows for cool cuts on your heat-sensitive applications with increased chip clearance, maximized coolant flow and reduced loading for quality results. You get good performance at an economical value for your grinding surface machines with Hanchett, Mattison, Norton, Cortland and Cortland Bonus Grind chucks. This grinding segment works on a variety of materials, especially soft carbon steels and tool steels, to tackle a range of jobs.

Markets

• Energy & Environment
• Paint & Drywall
• Medical Industry
• Manufacturing & Industry
• Home & Leisure
• Collision Repair
• Metal Fabrication/Welding
• Transportation

Applications

• Stock Removal
• Surface Grinding

Materials

• Brass
• Cast Iron
• Gray Iron
• Tool Steels
• Ductile Iron
• Bronze
• Soft Carbon Steels

Features

• Good performance and economical value when a broad variety of parts are ground on one machine, particularly soft carbon steels and tool steels
• Specially blended aluminum oxide abrasive for many surface grinding applications
• For use in Hanchett, Mattison, and Norton, and Cortland and Cortland Bonus Grind chucks on surface grinding machines
• The porous vitrified bond increases chip clearance and maximizes coolant flow, reduces loading, and is cool cutting in heat-sensitive applications

Machines

• Vertical Spindle Surface Grinder

• Length: 8 in.
• Width: 11-1/4 in.
• Thickness: 2-1/4 in.
• Wheel Type: Type 31
• Abrasive Material: Aluminum Oxide
• Bond Type: Porous Vitrified
• Amperage: 53A
• Material Compatibility: Soft Carbon Steel, Tool Steel, Brass, Cast Iron, Gray Iron, Ductile Iron, Bronze
• Compatible Machines: Hanchett, Mattison, Norton, Cortland, Cortland Bonus Grind
• Specifications: GEMINI 30-H
• Subshape: ME30777
