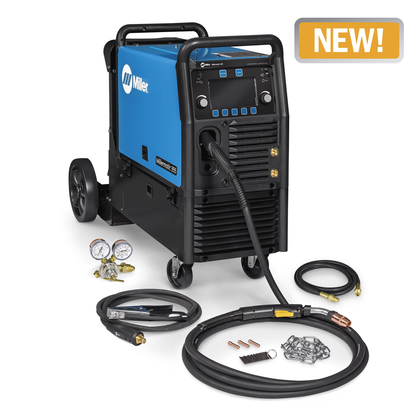

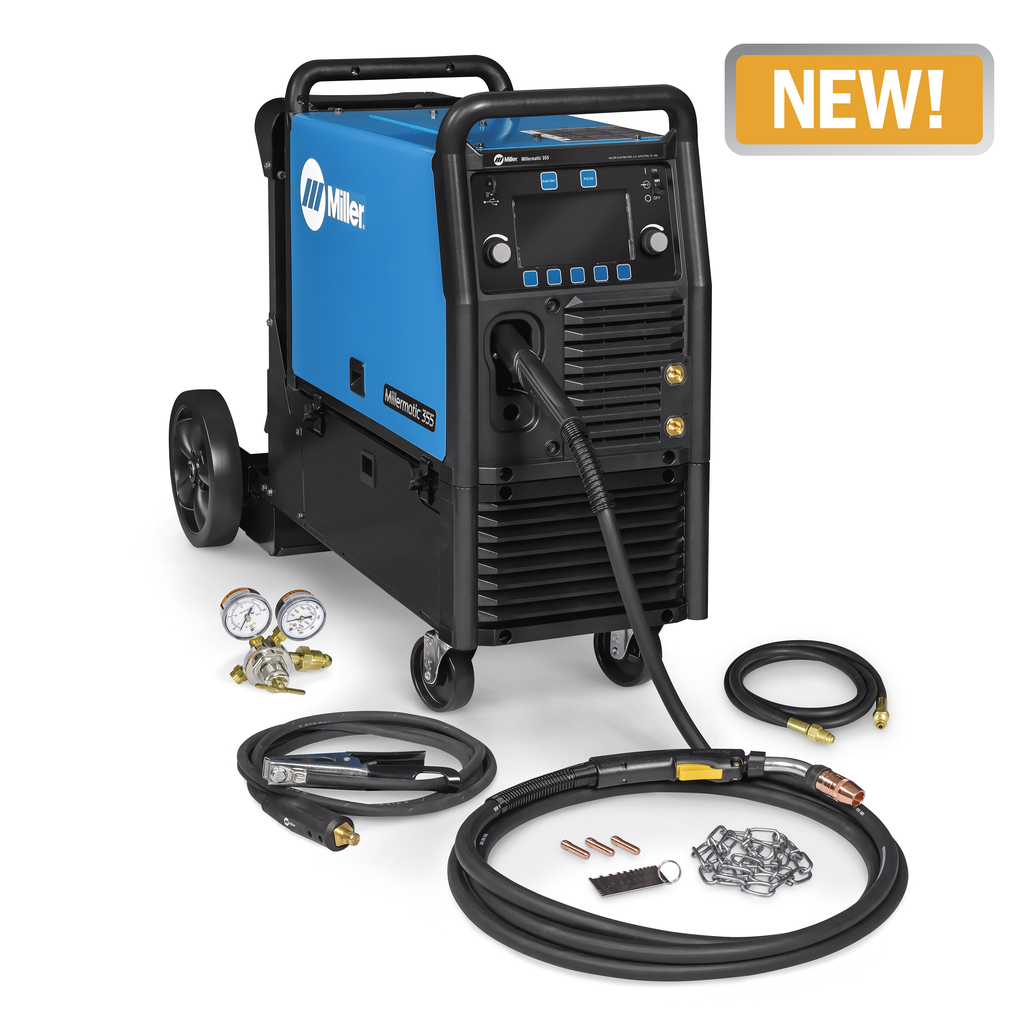

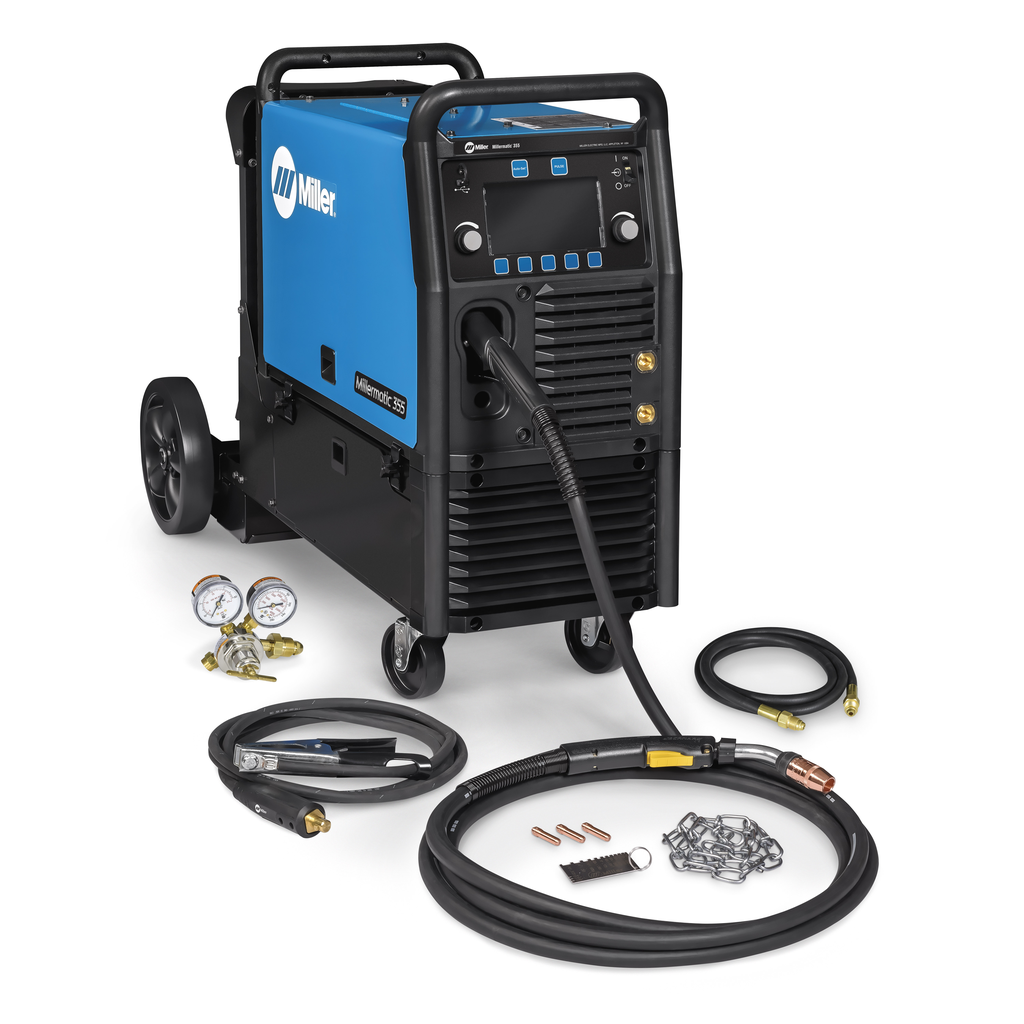

Miller Electric Millermatic 355 W/EZ-Latch Running Gear 208/240/460/575V - 951926

Easy to use machine to increase efficiency and productivity for manufacturing and fabrication users. 7" Color LCD screen featuring Auto-Set™ Elite, Electronic Parameter chart, and Trigger Program Select. This all-in-one welder connects to any North American input power. Welds up to 1/2” aluminum, stainless and mild steel.

Features

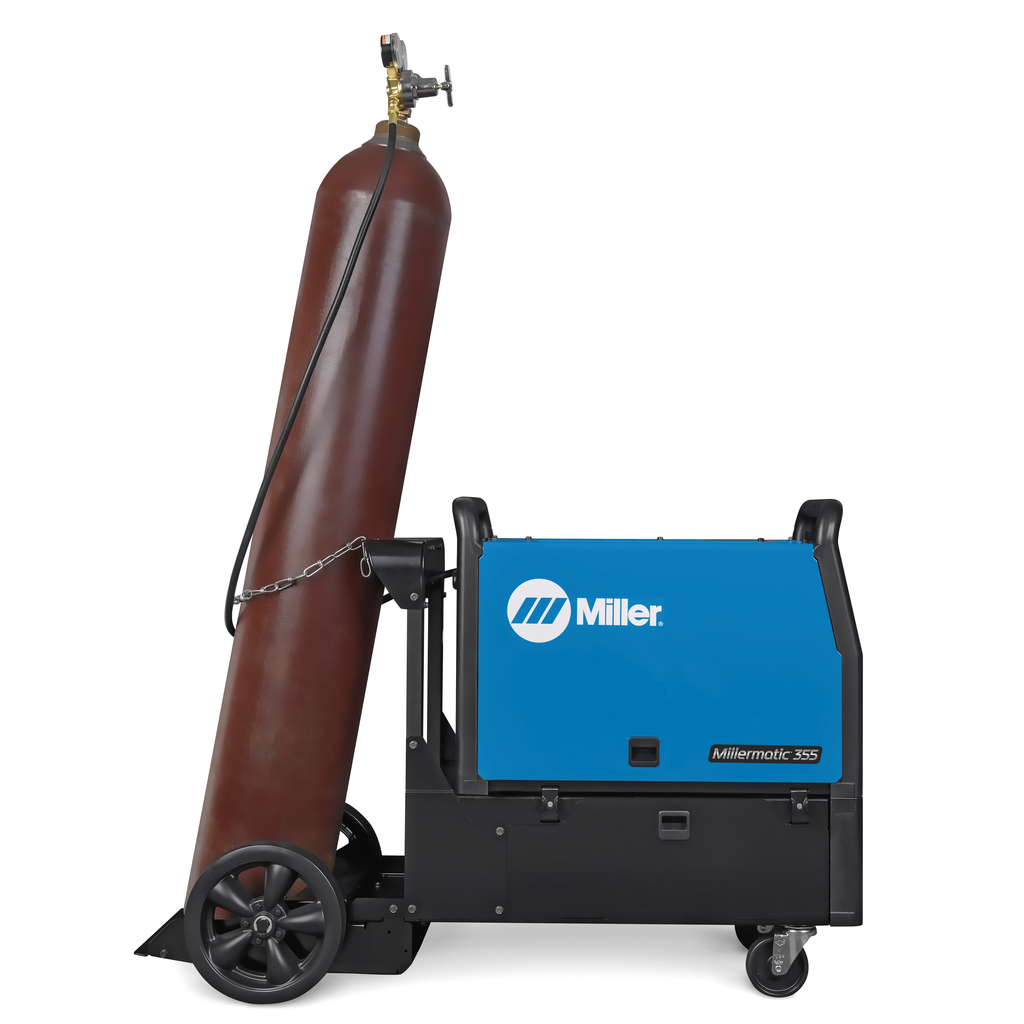

• EZ-Latch™ running gear: Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability.
• Bernard BTB Gun 300 A MIG gun with AccuLock™ S consumables: AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.
• Trigger Program Select: Increases productivity by eliminating the need to go back to the machine to change weld settings. Simply tap gun trigger to select the program.

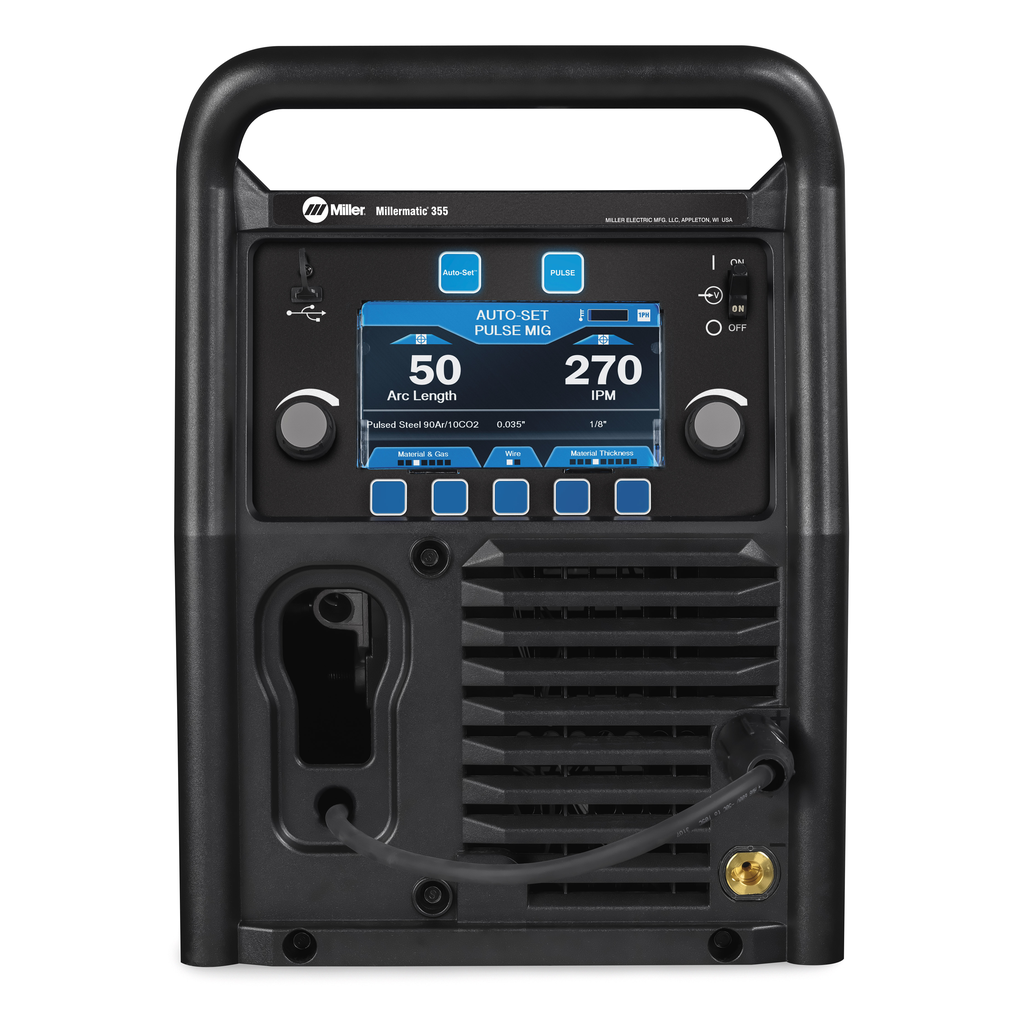

• Easy-to-understand interface: 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
• Generator Compatible: The Millermatic 355 will be able to operate and provide full output when powered by generators with 19000 Watt (19K) output or higher. Limited output will occur when used with smaller generators.
• Versatility: Capabilities include MIG, pulsed MIG and flux-cored welding.
• Pulsed MIG welding delivers higher quality: Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past.
• Portability - Machine only weighs 99 lb: Weight is reduced by more than 40 percent compared to the Millermatic 350P.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).

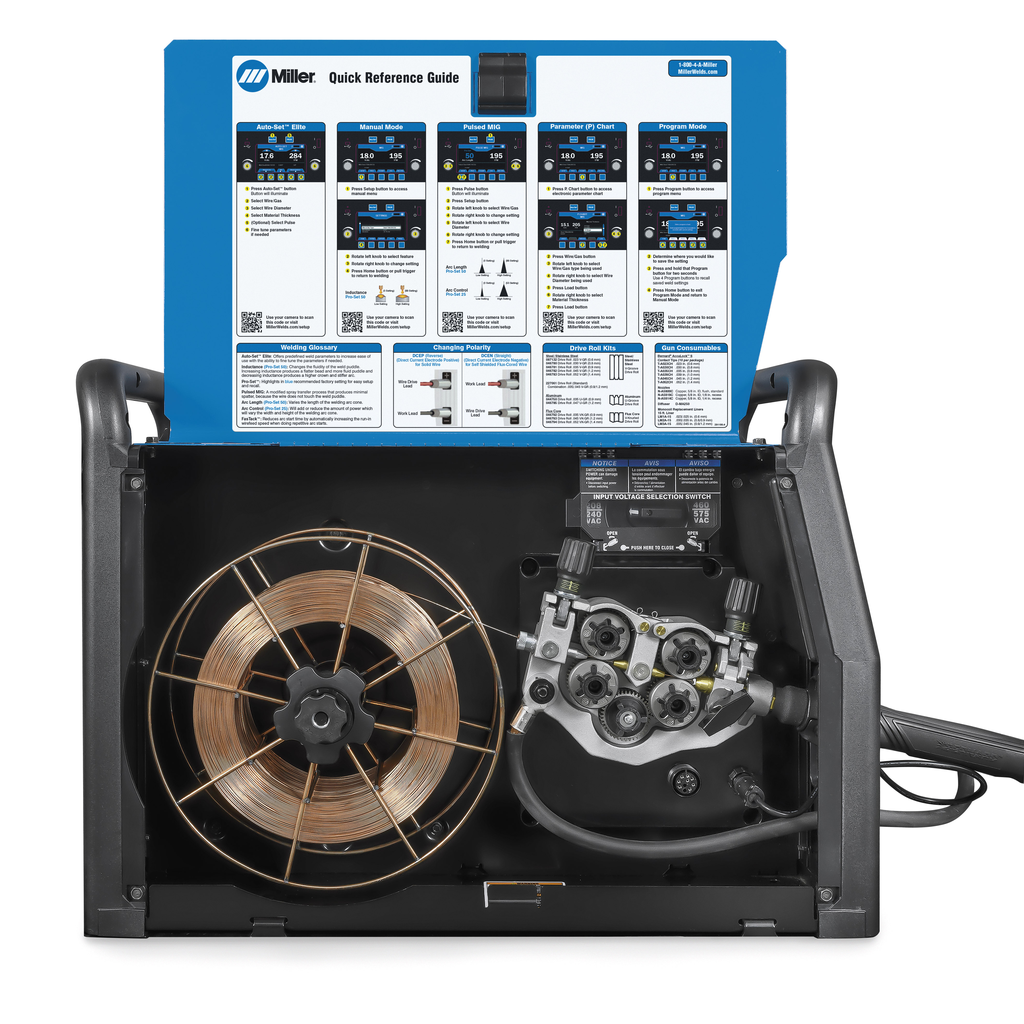

• Input Voltage Selection Switch: Provides versatility to utilize any single- or three-phase North American power (208, 240, 460, 575 V). Location in the wire drive compartment provides the ability to manually switch input voltage. An error will display if wrong input selected.

• Input Voltage: 208 V, 220/230/240 V, 460 V, 575 V, 1- and 3-phase, 50/60 Hz
• Amperage Range: 20 A - 400 A
• Rated Output: 310 A at 29.5 V, 60% duty cycle
• Max Open-Circuit Voltage: 90 VDC
• Wire Feed Speed: 1.3 - 20 m/min (50 - 800 ipm)
• Material Thickness Capability: Aluminum 18 ga. (1.2 mm) - 1/2 in. (13 mm); Mild Steel 22 ga. (0.6 mm) - 1/2 in. (13 mm)
• Wire Diameter Range: Aluminum 0.035 - 0.047 in.; Solid Steel 0.035 - 0.045 in.; Stainless 0.023 - 0.045 in.; Flux Cored 0.035 - 0.045 in.; Metal-Core 0.045 - 0.052 in.; Silicon Bronze 0.030 - 0.035 in.
• Current Type: DC
• Input Phase: 1- and 3-Phase
• Display: 7-inch color LCD
• Spool Size: 12 in. (305 mm)
• Weight Machine Only: 99 lb (45 kg)
• Weight Machine with Running Gear: 163 lb (74 kg)
• Dimensions Machine Only: H: 19.25 in (489 mm), W: 13.75 in (349 mm), D: 26.25 in (667 mm)
• Dimensions Machine with Running Gear: H: 32 in (813 mm), W: 13.75 in (349 mm), D: 45 in (1143 mm)
• Length: 45 in.
• Height: 32 in.
• Width: 13.75 in.
• Material Type: Aluminum; Solid Steel; Flux Cored; Metal-Core
• Weldable Metals: Aluminum; Specialty Metals; Stainless Steel; Steel
• Weld Output: CV
• Compliance: CSA Certified (Canada & US)
• Country of Origin: United States
• Series: Millermatic
