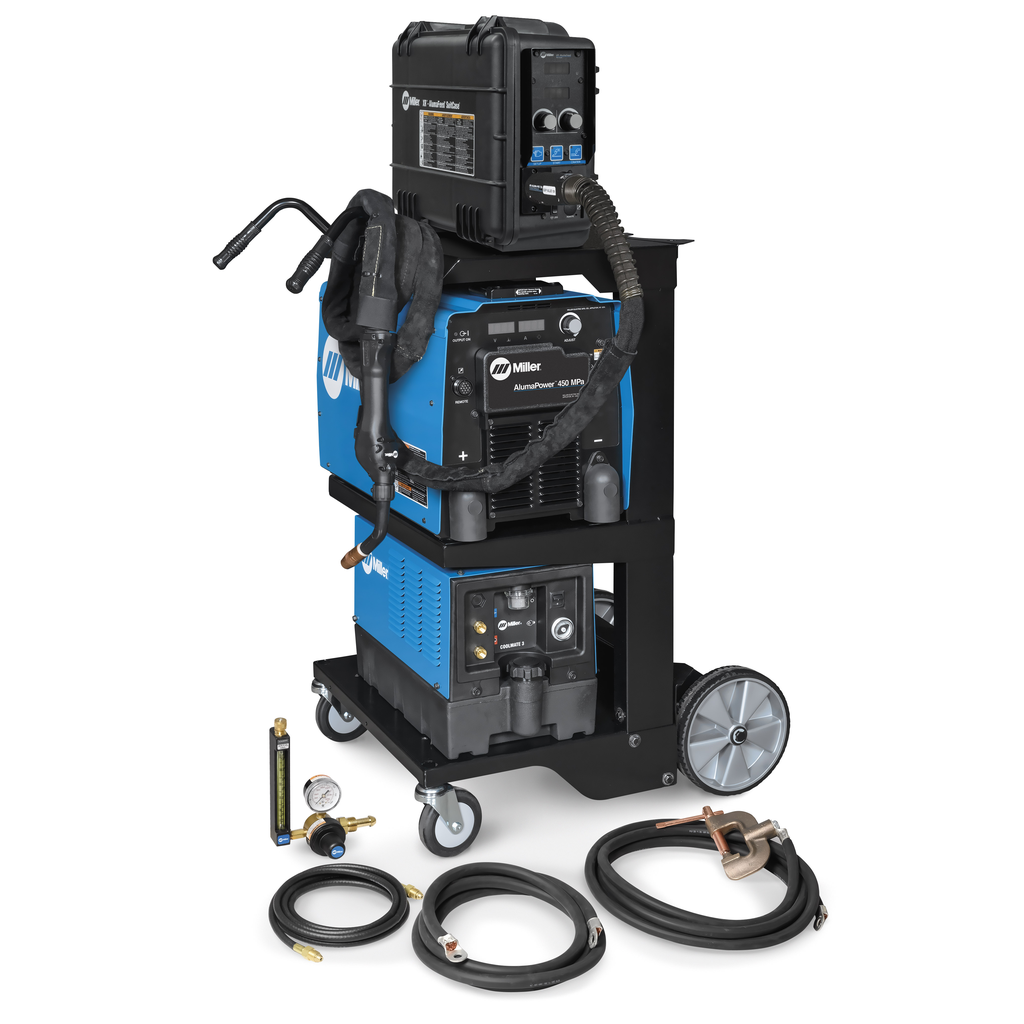

Miller Electric AlumaFeed 450 MPa Migrunner with 25ft. XR Aluma-Pro water-cooled - 951867

XR-AlumaFeed® system consistently delivers premium feeding performance; has a balanced, ergonomic gun design; and is portable when needed, to allow you to weld aluminum all day.

Features

• Premium feeding performance: Synchronized push pull systemconsistently delivers premium feeding performance to ensure high weld quality and keep welders in production.
• Balanced Gun Design: XR-Aluma-Pro™ push-pull guns are balanced and have a natural feel, so welders have improved joint access and can maintain proper gun angles, stick out and travel speeds.
• Industrial-quality gun cable: XR-Aluma-Pro™ push-pull guns have a durable cable covering and strain relief to withstand industrial environments and resist damage, reducing downtime and costs.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Parameter and system locks: Enhance quality assurance and protect weld consistency.
• Rugged and Portable Case: XR-Aluma-Pro™ Suitcase® wire feeders have a rugged, proven plastic case that’s designed to withstand industrial environments. It’s also lighter, so when portability is needed, it’s easy to move, so welders can extend their reach and go where the weld is.
• Synergic Pulsed MIG: As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments.
• Insight: Insight compatible to monitor weld voltage, amperage, and arc-time and percentage.
• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.

• Power: 15-600 A, 10-38 V, 450 A at 36.5 VDC 100% Duty Cycle, 90 VDC Open Circuit Voltage
• Input Power: 3-phase, 230/460 V or 575 V, 60 Hz
• Wire Feed Speed: 50-900 ipm (1.3-22.9 m/min)
• Gun Cable Length: 25 ft
• Wire Diameter Capacity: .030-1/16 in (0.8-1.6 mm)
• Welding Current Rating (Gun): 400 A at 100% duty cycle
• Power Source Dimensions: 17.25 x 14.5 x 27.125 in (438 x 368 x 689 mm)
• Power Source Weight: 122 lb (55.3 kg)
• Gun Dimensions: 7.375 x 1.875 x 10.625 in (187 x 48 x 270 mm)
• Gun Weight: 2.4 lb (1.1 kg)
• SuitCase Wire Feeder Input Power: 24 VAC, 5 A, 50/60 Hz
• SuitCase Wire Feeder Dimensions: 15.5 x 9 x 21 in (394 x 229 x 533 mm)
• SuitCase Wire Feeder Weight: 31 lb (14.1 kg)
• Gun Type: XR-Aluma-Pro water-cooled
• Wire Feed System: Synchronized push-pull
• Compliance: Certified by Canadian Standards Association to Canadian and U.S. Standards
• Series: AlumaFeed
• Country of Origin: United States
