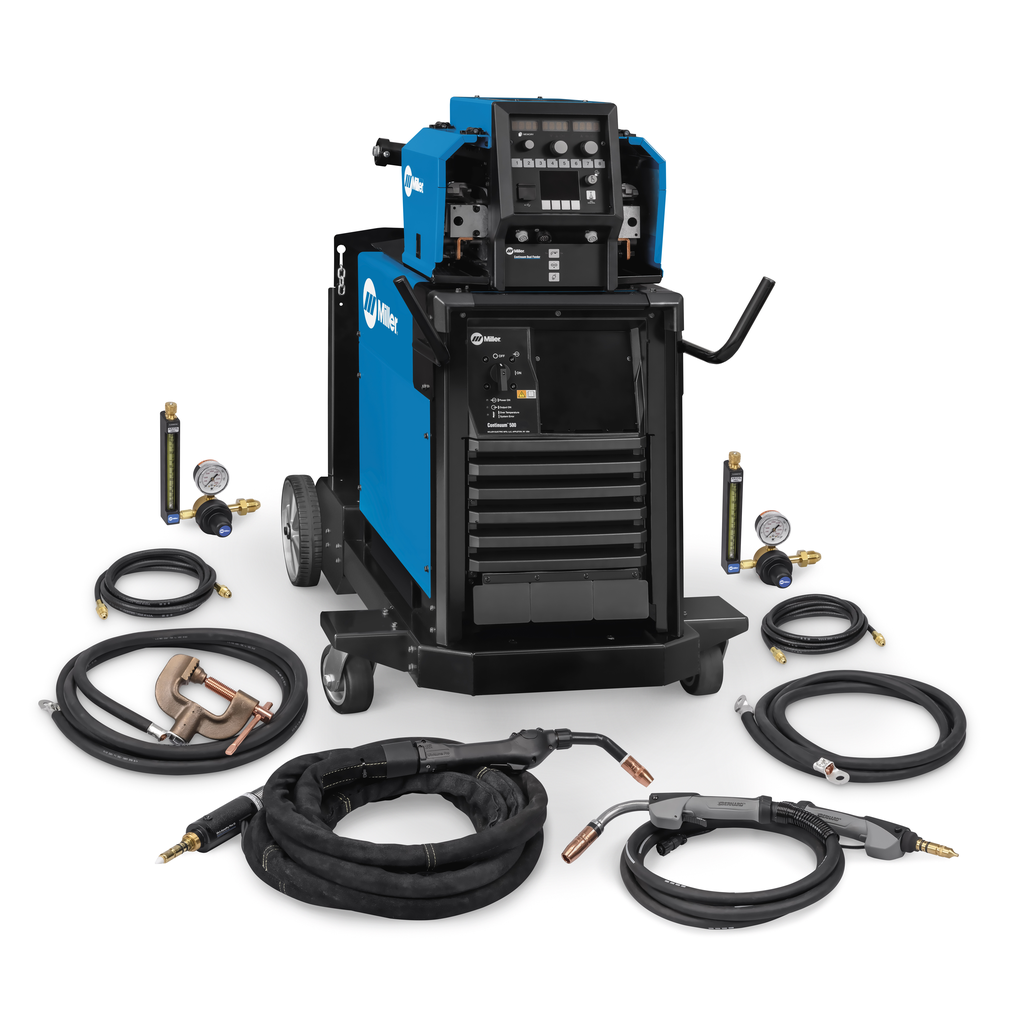

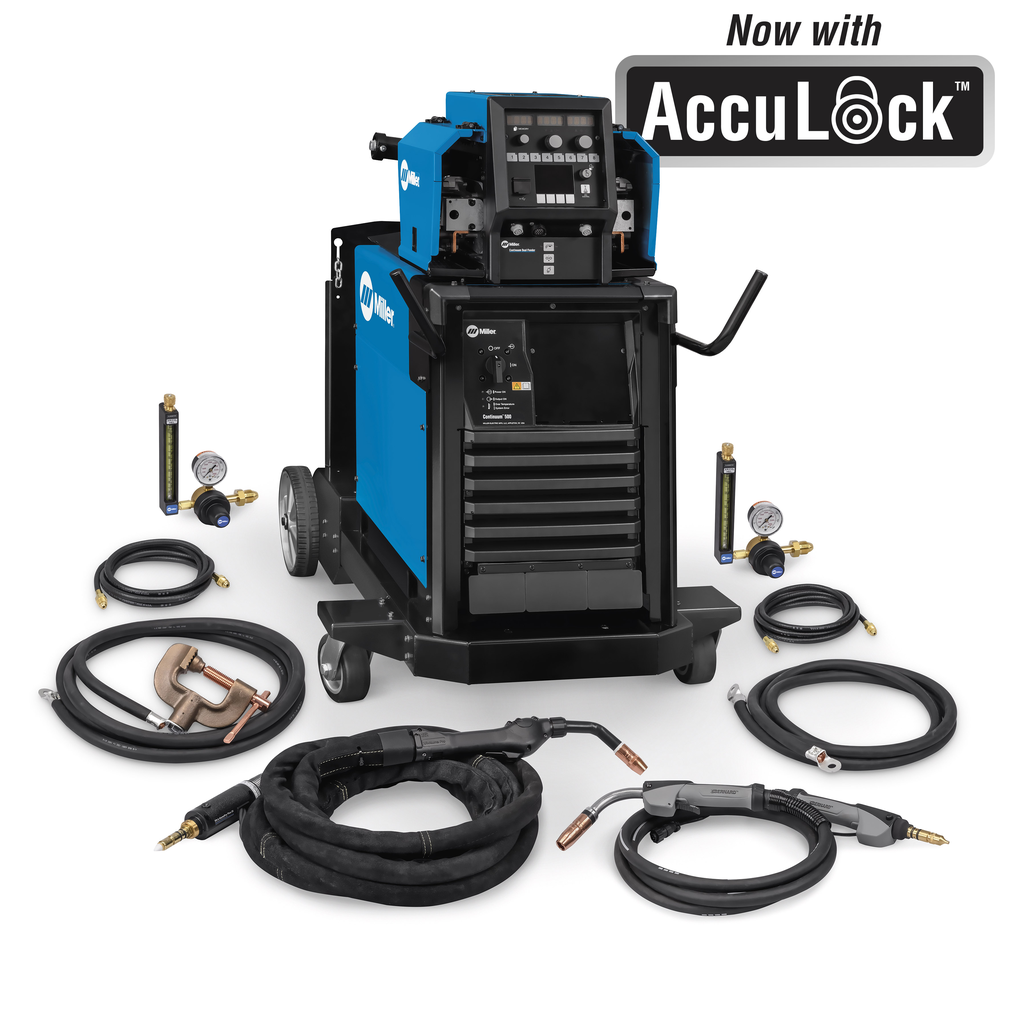

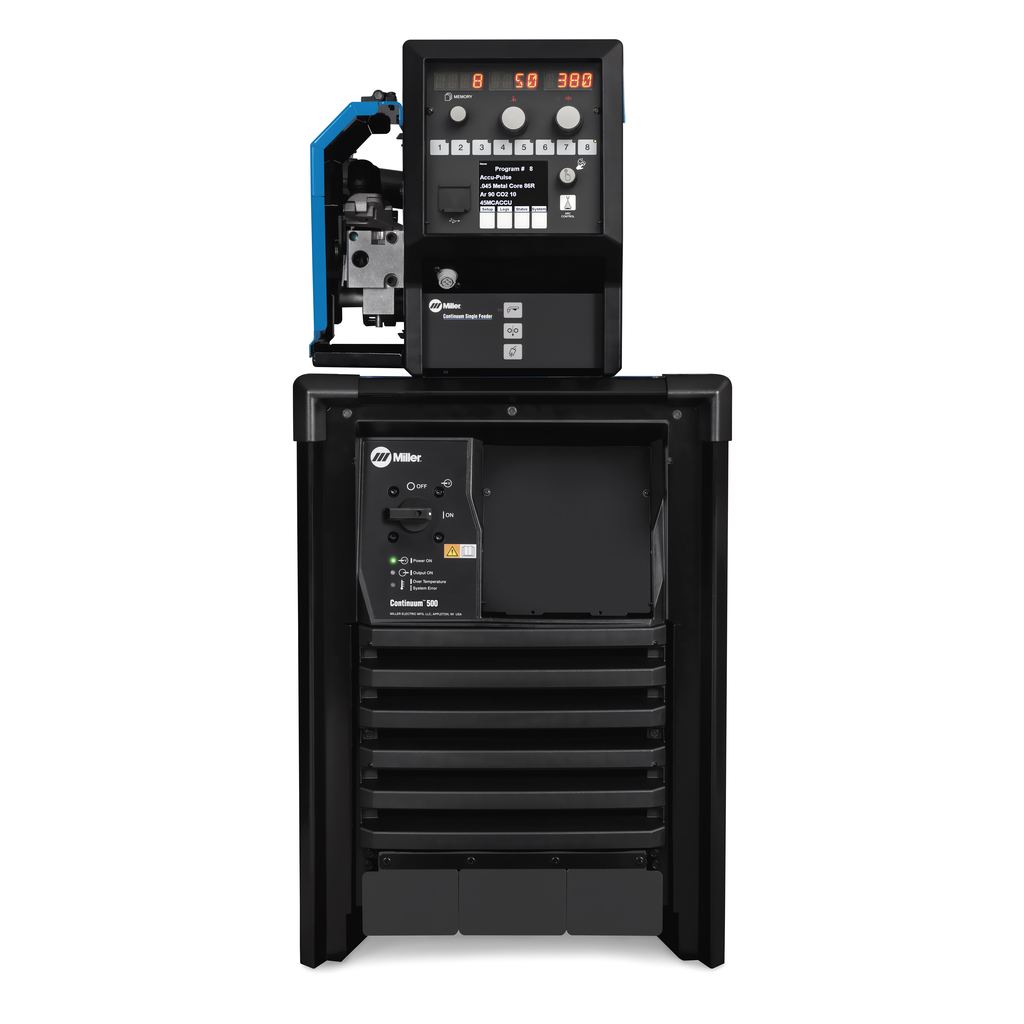

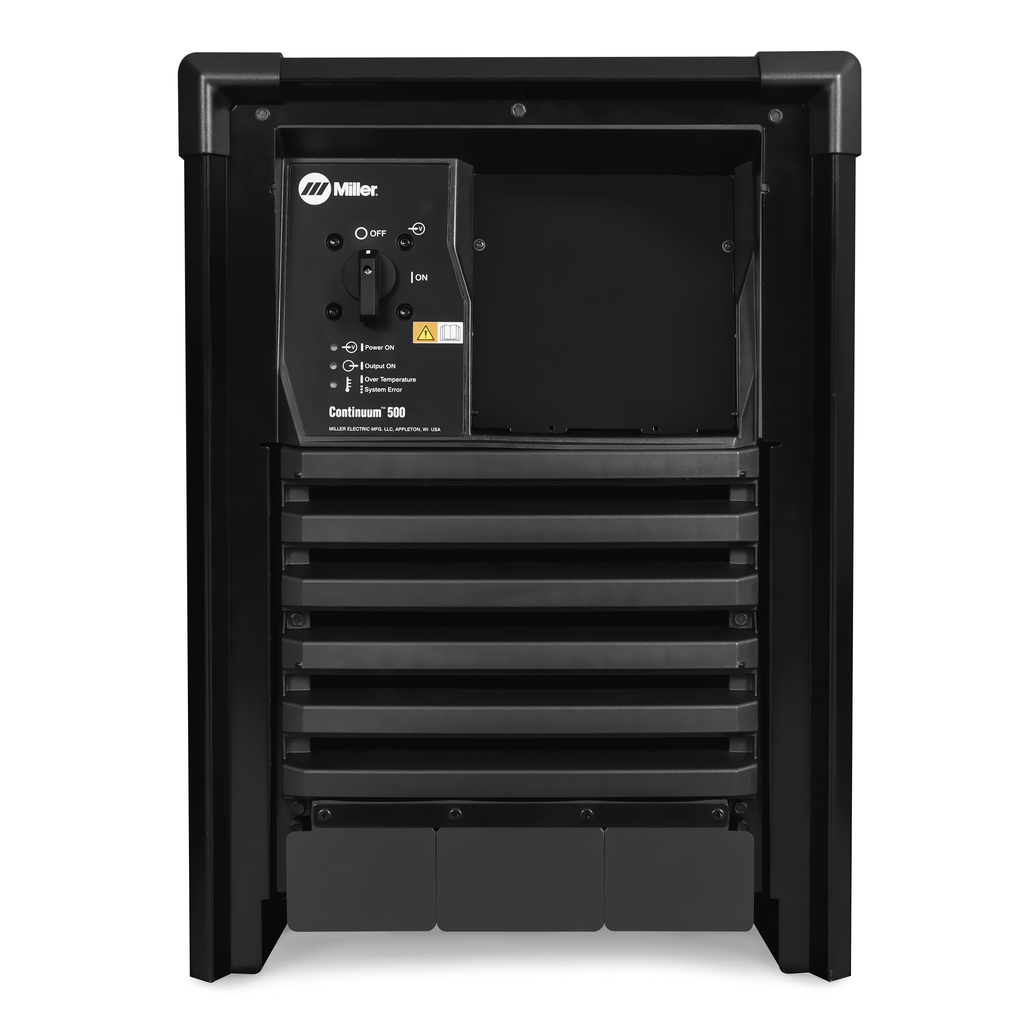

Miller Electric, 951866001, MIG Welder, ContinuumTM Series, Push-Pull, Advanced Industrial Welding Solutions

New generation of advanced industrial welding solutions improves productivity through weld quality, ease of use and system flexibility.

Features

• Superior Arc Performance: Improved Accu-Pulse provides less spatter, better arc control and less heat input. Very forgiving with changes in stick-out Improved MIG performance. Consistently smooth arc starts reduce spatter Improved RMD, designed for thin materials and gap filling with very low spatter New High-Deposition MIG process typically used for thicker material and larger welds. Provides lower heat input and higher deposition rates than standard spray transfer
• AccuLock S Consumables: AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
• Easy to set up and adjust with minimal training: 8 program/memory buttons USB functionality for updates, cloning and more Browser-based connection to view and adjust machine parameters, configure machine settings and ability to set locks and limits
• Adaptable to a Variety of Weld Cell Configurations: Flexible user interface location (power source, feeder, remote operator interface). Welding Intelligence™ Solutions: Insight Core™ (standard) and Insight Centerpoint™ (optional). Easily add process and programs. Wire feeder is easily configurable for standard spool sizes, 60-pound spools or bulk-feeding systems.

• Amperage: 500A
• Duty Cycle: 100% at 500A
• Voltage Range: 10 44 V
• Output Range: 20 600A, 10 44 V
• Input Power: 230 575 V, 3-phase, 50/60 Hz
• Max. Open-Circuit Voltage: 71 VDC
• Wire Diameter Capacity: 0.035 5/64 in (0.9 2.0 mm)
• Wire Feed Speed: 50 1,000 ipm (1.27 25.4 m/min)
• Maximum Spool Size Capacity: 18 in (457 mm), 60 lb (27 kg)
• Weight: 250 lb
• Dimensions: H: 36 in, W: 28 in, L: 48 in
• Gun Rating: 400A at 100% duty cycle
• Gun Neck Angle: 60
• Gun Weight: 2.5 lb (1.1 kg)
• Gun Length: 17 in (432 mm)
• Gun Handle Type: Ergonomic with rubber grip
• Drive Rolls: .035/.047 in U-groove and .035/.045 in V-groove
• Processes Supported: Accu-Pulse pulsed MIG, Versa-PulseTM, RMD , MIG (GMAW), High-deposition MIG, Flux-cored (FCAW), Air carbon arc (CAC-A)
• Country of Origin: United States
• Series: ContinuumTM
• Compliance: CSA Certified to Canadian and U.S. standards
