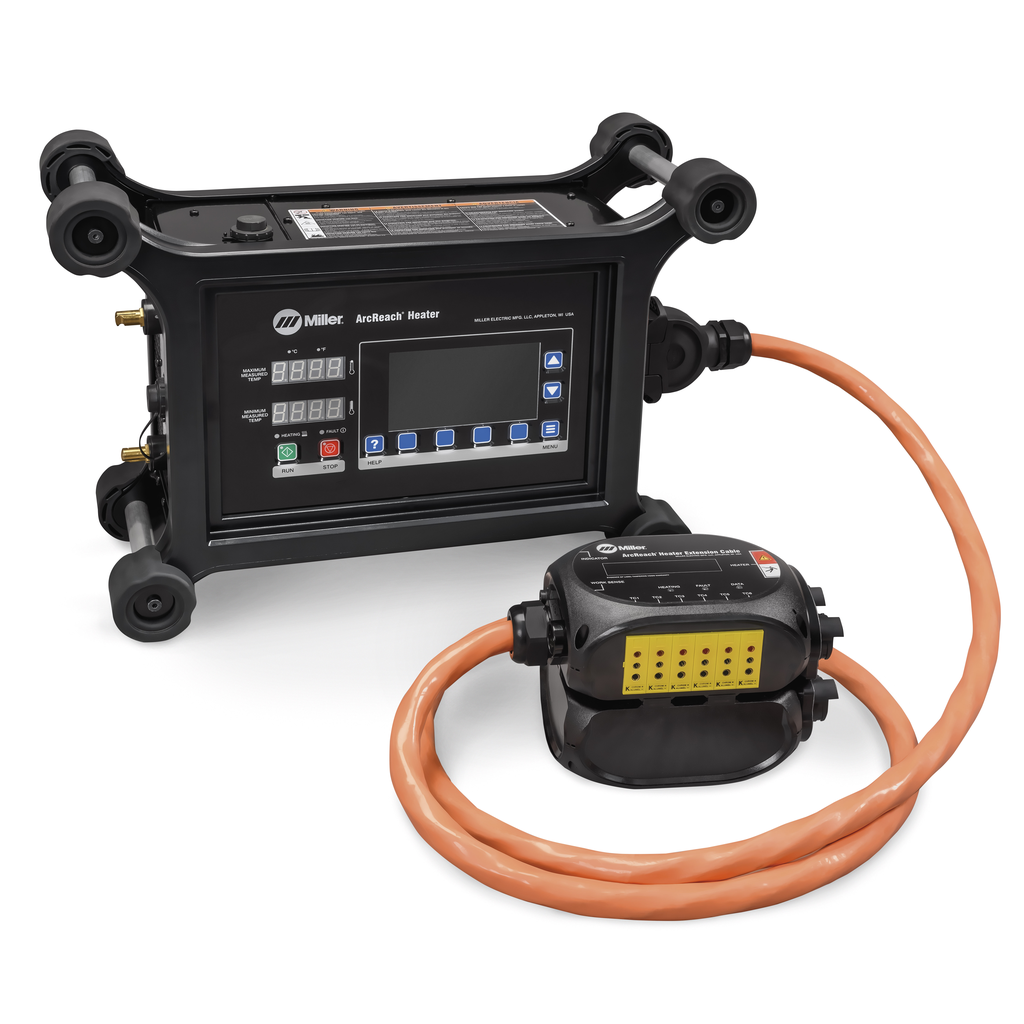

Miller Electric, 951848, ArcReach Heater System, 7.8 kW, 200 A, 600 F, Portable Induction Heating

Portable air-cooled induction heating system for preheat and bake-out applications up to 600 degrees Fahrenheit (315° C). Includes heater and extension cable - requires selection of either air-cooled cable(s) and/or air-cooled quick wraps as heating tools.

Features

• Ideal for preheat and bake-out applications on pipe, plate, or odd geometries. Induction heating provides a fast time to temperature, consistent quality and even heat zone controlled throughout the part.
• Welders will find the system intuitive to set up, use and tear down the system without having to wait for the tools to cool down. Heating profiles can be manually entered or loaded via USB drive using the Data Application.
• The ArcReach Heater System eliminates the costly overruns common with heating contractors and allows contractors to regain control of heating costs and timelines.
• Compatible for select ArcReach welding power sources. Use existing on-site welding equipment up to 200 feet away as the heating power source. ArcReach technology increases jobsite productivity and efficiency by eliminating the time spent to walking back to make adjustments.

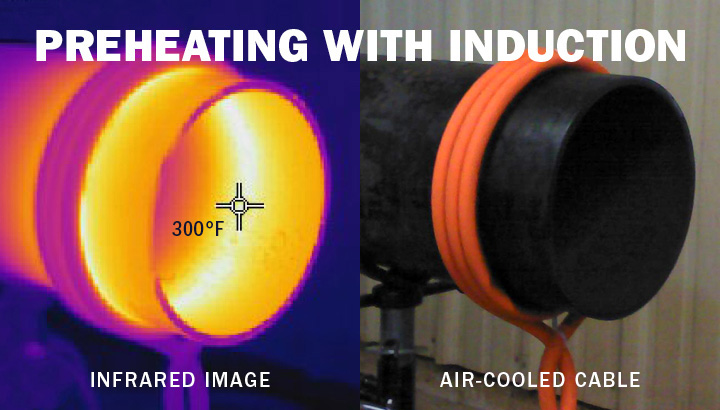

• Air-Cooled Cables (available in 30 ft, 50 ft, or 80 ft lengths) are flexible to be used on pipe, plate or odd geometries. Air-Cooled Quick Wrap is a simple tool for pipe applications 10 inches OD and below.
• Automatically and accurately documents joint temperature every time a heating cycle is completed. Export data and create temperature charts with ArcReach Heater Data Application.
• Eliminates safety concerns caused by traditional open-flame heating and resistance heating.
• Enables welders to use the same equipment used for welding. Utilizes standard weld cables to power the ArcReach Heater and eliminates the requirement for expensive power drops.

Does Not Include

• Thermocouple Wire
• Contact Thermocouple Sensor (probe)
• Preheat Insulation with Cable Harness
• Air-Cooled Quick Wrap
• High-Temperature Rope
• Cable Cover Sleeve(s)
• Thermocouple Attachment Unit
• Air-Cooled Cable(s)
• Thermocouple Connectors

Includes

• ArcReach Heater
• ArcReach Heater Extension Cable

• Rated Output: 7.8 kW at 100% duty cycle
• Output Current: 200 A
• Source Current: 33 A
• Output Voltage: 300 V
• Output Frequency: 5 - 30 kHz
• Maximum Temperature: 6006F (3156C)
• Length: 51 in.
• Width: 21 in.
• Height: 39 in.
• Weight: 51 lb
• Air-Cooled Cable Lengths: 30 ft, 50 ft, 80 ft
• Pipe Diameter Compatibility: up to 10 in. OD
• Country of Origin: United States
