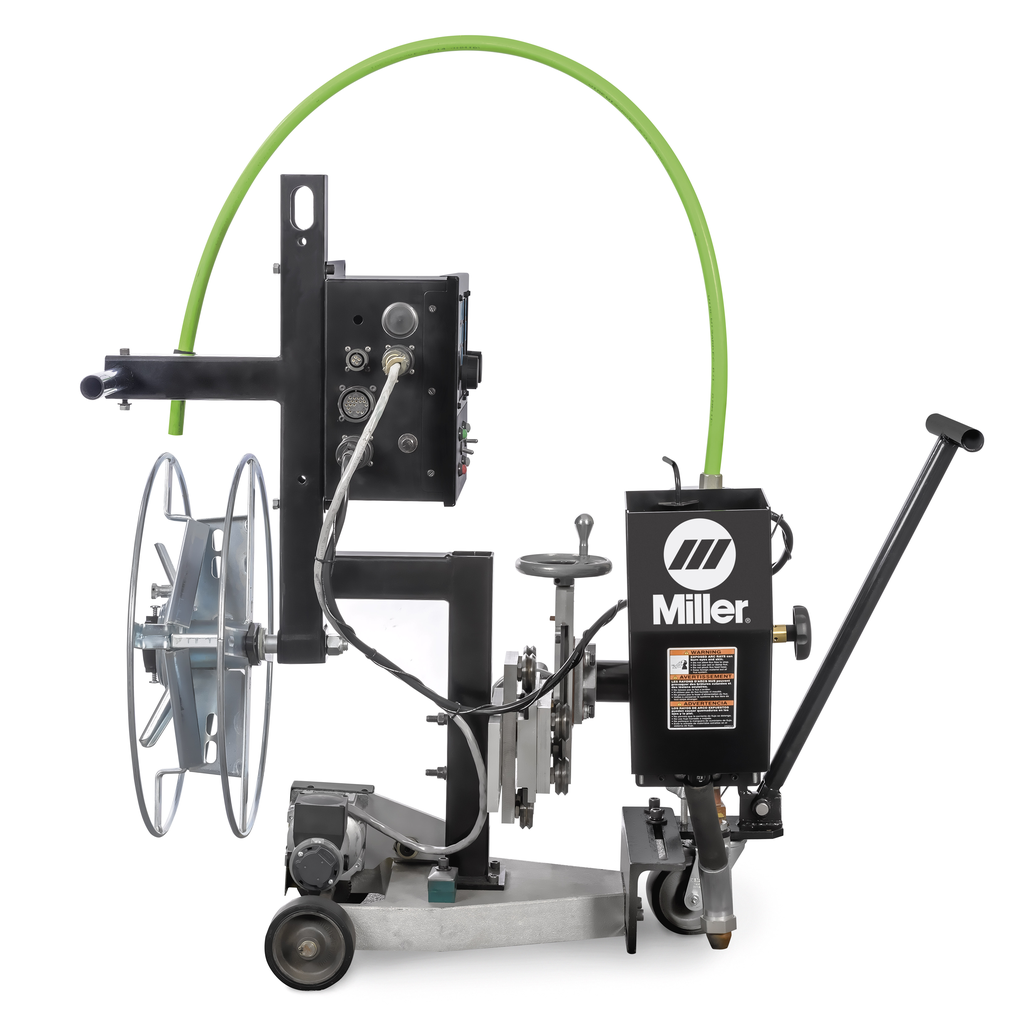

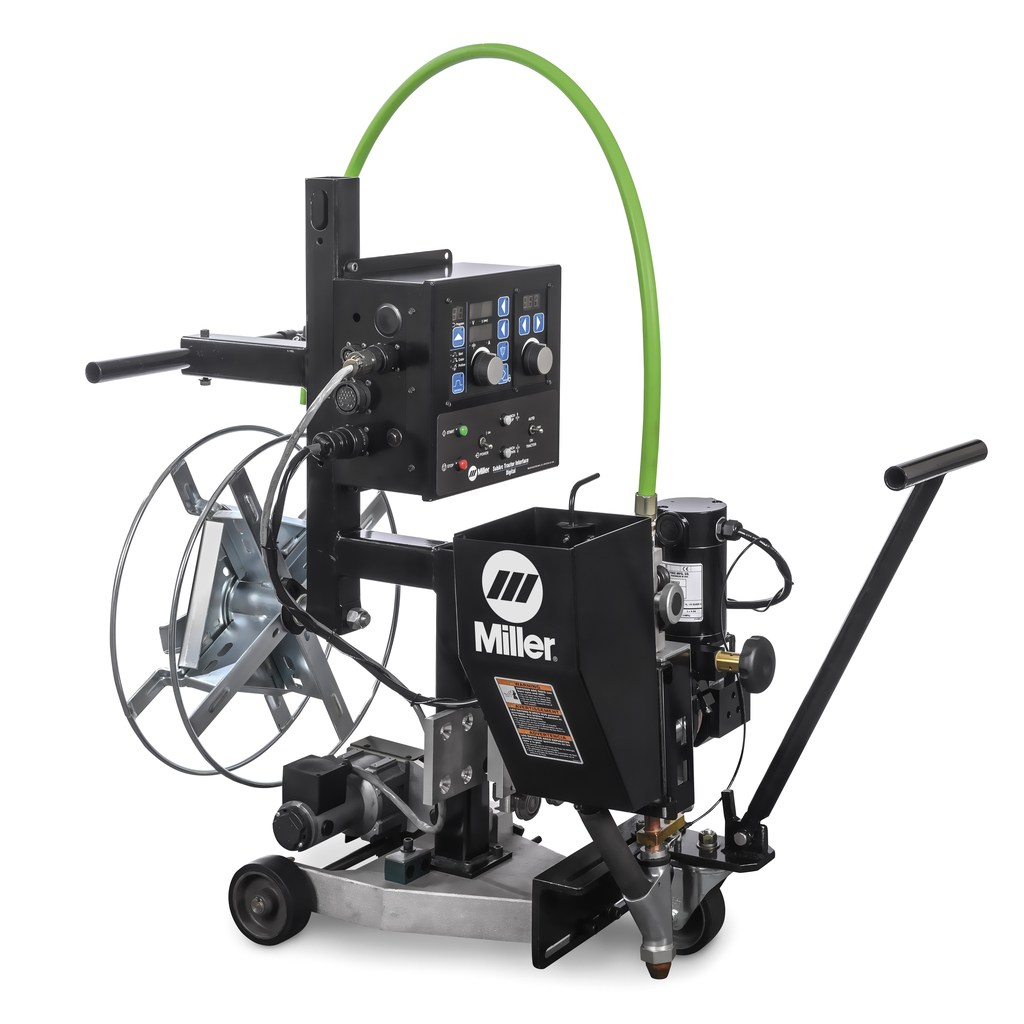

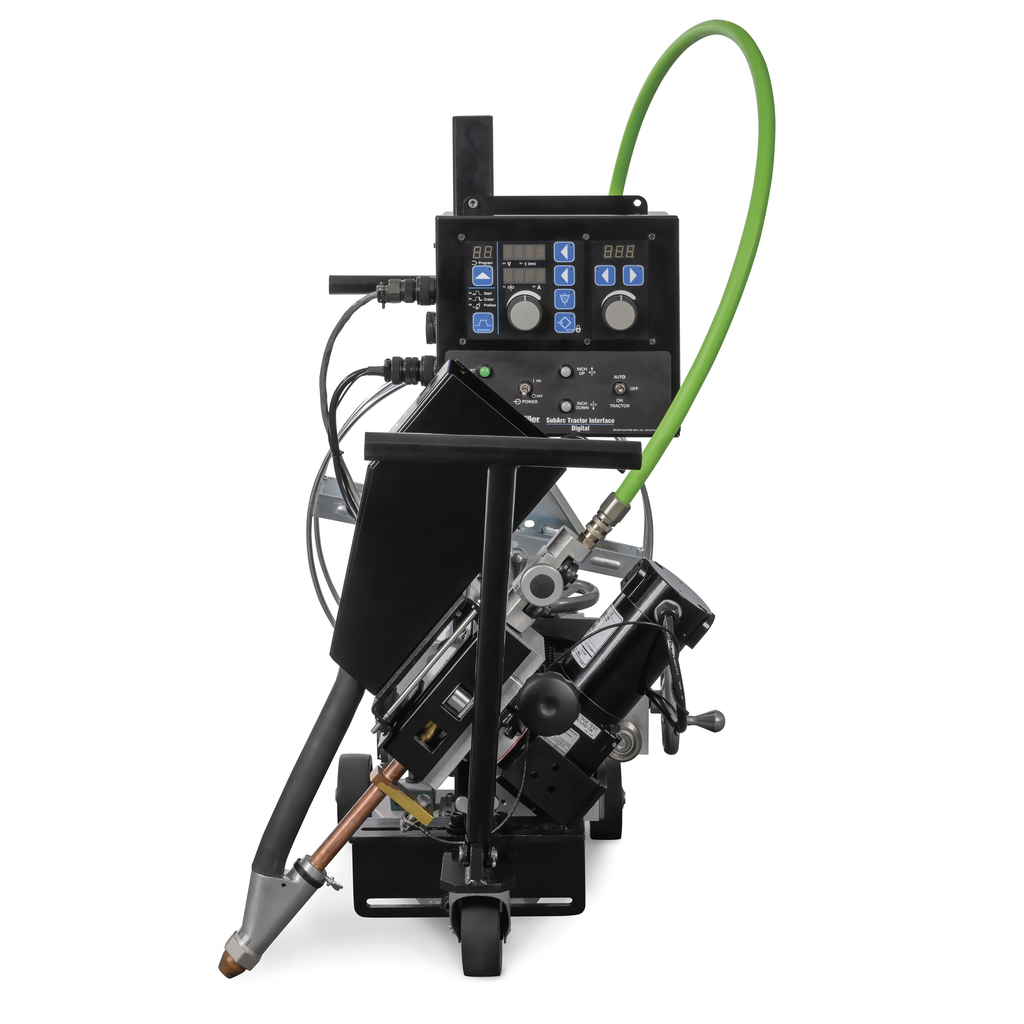

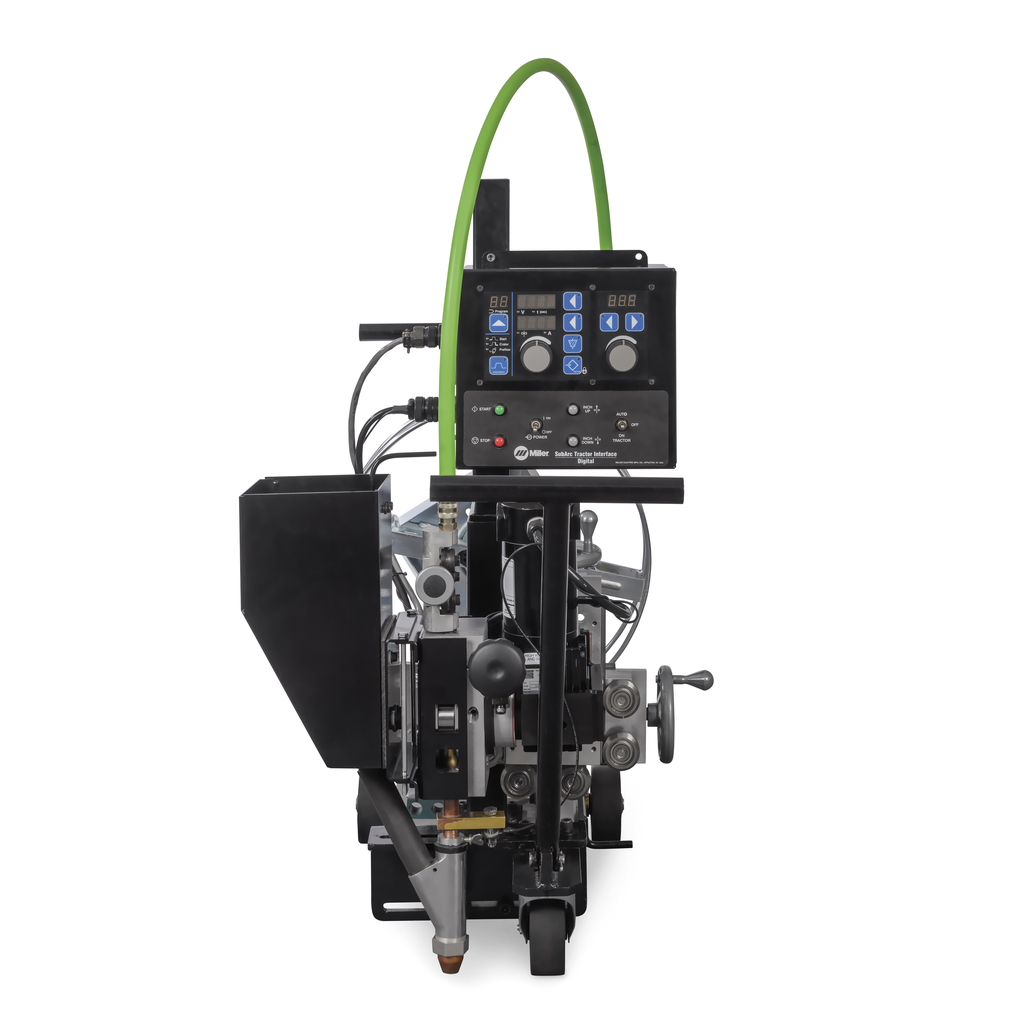

Miller Electric, 951755, SubArc 3-Wheel Tractor, 43.25 in; 120 lb, Max Wire Feed Speed 40 IPM, Min Travel Speed 5 IPM, Max Travel Speed 70 IPM, Wire Diameter Capacity 0.06 - 0.15 in

The SubArc 3-Wheel Tractor is a compact size that makes it easy to configure, allowing greater flexibility and additional SAW setup options for shipbuilding, railcar and general fabrication. In addition, a new all-in-one interface lets welding operators control the tractor as well as the welding functions from the same panel, for improved ease of use.

Features

• Allows torch to be positioned in multiple weld zones and adapts to your weld application.
• The locking front wheel can be secured in place to follow a desired travel path.
• Allows for easy engagement and disengagement of tractor drive system. When disengaged, freewheeling movement of the tractor allows for ease of movement and repositioning.
• Easily accommodates a 60 lb (27 kg) wire reel for fewer wire changeovers.
• This simple-to-use self-propelled Submerged Arc welding tractor can easily connect to Miller SubArc DC and AC/DC Digital Series power sources.
• Provides easy-to-operate single control for power source and tractor operation.
• The new digital series accessories are powered with 24 VAC control voltage from the power source. All power sources, interface controls and wire drives are IP23 rated providing a high level of protection for harsh environments.
• Ensures your actual and set travel speeds are consistent, improving weld quality.
• Allows for greater access to hard-to-reach spots.

Includes

• Manual Flux Hopper
• OBT 600 SubArc Torch
• Wire straightener
• SubArc Tractor Interface Digital
• SubArc Wire Drive 400 Digital Low Voltage
• Wire Reel Assembly
• SubArc 3-Wheel Tractor

Does Not Include

• SubArc Control Cable
• Weld leads
• Contact tips
• Drive rolls

• Wire Reel Capacity: 60 lb (27 kg)
• SubArc Tractor Max Travel Speed: 70 in./min
• SubArc Tractor Min Travel Speed: 5 in./min
• SubArc Tractor Max Wire Feed Speed Range: 40 in./min
• SubArc Tractor Wire Diameter Capacity: 0.06 - 0.15 in.
• Voltage and Amperage: refer to initial values
• Length: 43.25 in.
• Width: 31.63 in.
• Height: 36 in.
• Weight: 120 lb
• Wheel Type: 3-Wheel
• Control Voltage: 24 VAC
• Ingress Rating: IP23
• Country of Origin: United States
