Miller Electric, 951684, Syncrowave 210, TIG/MIG, 5 A - 210 A, 110/115/120 V; 208 V; 220/230/240 V, Steel; Aluminum, 12 ft. cable

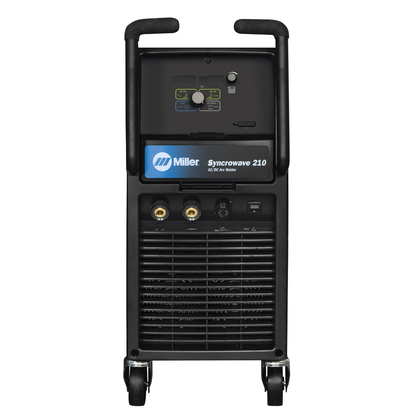

The easy-to-use Syncrowave® 210 provides legacy arc performance that allows you to expand your capabilities with an all-in-one package.

Features

• Allows users to weld thinner materials than other machines in this category.
• Using Miller’s Auto-Line™ technology, the Multi-Voltage Plug (MVP™) allows you to connect to common 120 or 240 V power receptacles without the use of any tools – simply chose the plug that fits the receptacle and connect it to the power cord.
• Inverter-based power source provides full welding output from 240 V while drawing less than 30 amps.
• A breakthrough control that automatically sets your welder to the proper parameters. Auto-Set offers all-in-one MIG minus the hassle of finding parameters. Simply set the wire diameter, set the material thickness, and start welding!
• 1. Turn power on. 2. Select Process: AC TIG, DC TIG, DC Stick or MIG Spool Gun. 3. Set amperage or voltage based on material thickness. Then weld! It’s as easy as 1, 2, 3.
• Allows the fan to run up to 36% less to reduce the amount of contaminants pulled though the machine to help extend the life of the product.
• While other multiprocess units lack the ability to TIG weld aluminum, your Syncrowave 210 has AC TIG. Also through the spool gun accessory you can MIG weld to fill those gaps or increase your travel speed.
• No need to buy a cart, your Syncrowave 210 gives you maximum portability with an EZ-Change™ low cylinder rack and built-in storage space to better manage your accessories and easily transport everything you need for your project.
• When the competition snuffs out the Syncrowave 210 burns on, even with difficult to run electrodes used for less than ideal conditions. Increase the DIG setting for stiffer, more penetrating electrodes like E6010.
• The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
• Eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience, and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display. AC Balance Adjustability (TIG): Provides adjustable oxide removal which is essential for creating the highest quality aluminum welds. Pulse Capability (TIG): Pulse feature ranging from 0 – 150 pulses per second for increasing puddle agitation, arc stability, and travel speeds while reducing heat input and distortion.

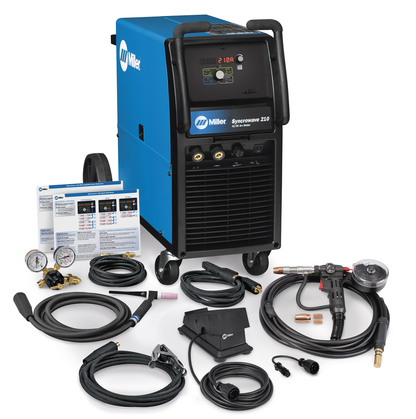

Includes

• Spoolmate™ 150 Series spool gun (#301 272)
• 12 ft. (3.8 m) stick electrode holder with Dinse style connector
• 12 ft. (3.8 m) work cable with clamp and Dinse style connector
• Syncrowave® 210
• 12 ft. (3.8 m) Weldcraft™ A-150 TIG torch with Dinse style connector
• Quick Reference Guide
• 4-Pin to 14-pin connector
• RFCS-14 HD remote foot control
• 10 ft. (3 m) primary cord with MVP™ plugs for 120 V (219261) and 240 V (219258)

• Input Voltage: 110/115/120 V, 208 V, 220/230/240 V
• Amperage Range: 5 A - 210 A
• Input Phase: 1-Phase
• Input Frequency: 50/60 Hz
• Amperage Max: 210 A
• Amperage Min: 5 A
• Current Type: AC / DC
• Weld Output: CC / CV
• Weight: 144.5 lbs
• Dimensions (L x W x H): 43 in. x 18.5 in. x 31.5 in.
• Material Thickness Range - Steel: 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm)
• Material Thickness Range - Aluminum: 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm)
• Max Thickness - Steel: 0.25 in.
• Max Thickness - Aluminum: 0.25 in.
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Metal Type: Steel, Aluminum
• Country of Origin: United States
• Process Types: AC TIG, DC TIG, DC Stick, MIG Spool Gun
• Pulse Frequency: 0-150 pulses/sec
• Connector Type: 14-pin
• Torch Length: 12 ft
• Cable Length: 12 ft
