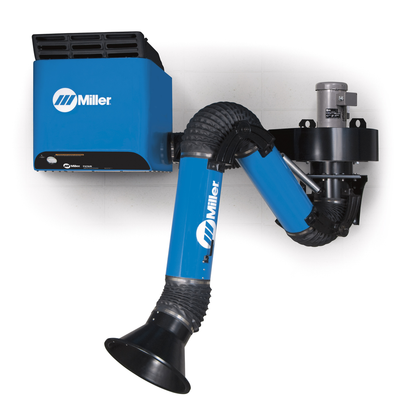

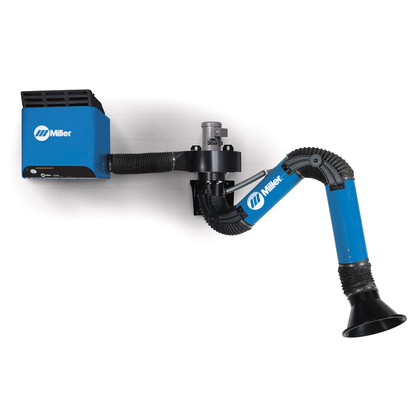

Miller Electric FILTAIR SWX-D (Disposable Filter) Single-Arm Package, 12 ft. Standard Fume Extraction Arm - 951515

Wall or column-mounted weld fume extraction system designed specifically for welding. This system features class-leading suction power resulting in unrivaled filtering performance, ideal for manufacturing, fabrication shops, and training centers.

Includes

• Flexible duct (7 x 37 in.)
• SWX disposable filter cabinet
• 115 V on/off control box
• Mounting bracket for blower/arm
• FilTek XL Filter
• 8 in. diameter x 12 ft. standard fume extraction arm
• 115 V blower

Features

• The disposable filter model works great for light duty and intermittent welding operations.
• High-performance fan generates 1,200 cfm and creates an Accu-Rated minimum of 875 cfm extraction at the hood to better capture weld fumes and provide a cleaner environment.
• Filters are rated on a MERV scale, which measures filter efficiency based on particle count. MERV ratings range from 1-16, with 16 being the best at filtering small particles-such as those found in weld fumes.
• Featuring external adjustments so air can pass through with less airflow resistance, giving you stronger CFM (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation. Pre-assembled extraction arms are available in 7, 10, or 12 foot lengths.
• FilTek XL Filter Technology is specifically designed for welding fumes. This technology offers a longer filter life - up to 2 times that of treated cellulous filters and superior filtering of up to 95% of weld fume particulate.
• Features a convenient 360 degree rotation for unlimited positioning. One of the largest in the industry, FILTAIR’s extraction hood captures weld fumes at a greater distance from the source than other hood designs. This also means less hood adjustments for longer welds.
• Easy to order and allow the flexibility to mix different arm types to solve various fume extraction challenges (See Accessories).

Does Not Include

• 115 V wiring

• Voltage: 110/115/120 V
• Input Phase: 1-Phase
• Input Hz: 60 Hz
• Motor HP: 1
• Nominal Air Flow: 875 CFM
• Minimum Extraction: 875 CFM
• Fan Airflow: 1,200 CFM
• Extraction Arm Length: 12 ft
• Extraction Arm Diameter: 203 mm (8 in)
• Number of Arcs: 2
• Filter Type: Disposable, FilTek XL
• Filter Efficiency: MERV 16, 95%
• Filter Media: 490 ft2
• Filter Media2: 45.52 ft2
• Sound Level at 5 Feet: 74 dB
• Weld Fume Extractor Type: Wall or column mounted
• Rotation: 360 degree
• Country of Origin: United States
