Miller Electric, 951000001, Multiprocess Welder, 20 A - 230 A, 120/240 V, Mild Steel 24 ga. - 3/8 in.

Easy-to-use and versatile MIG, Stick and DC TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel.

Features

• Auto-Set Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!

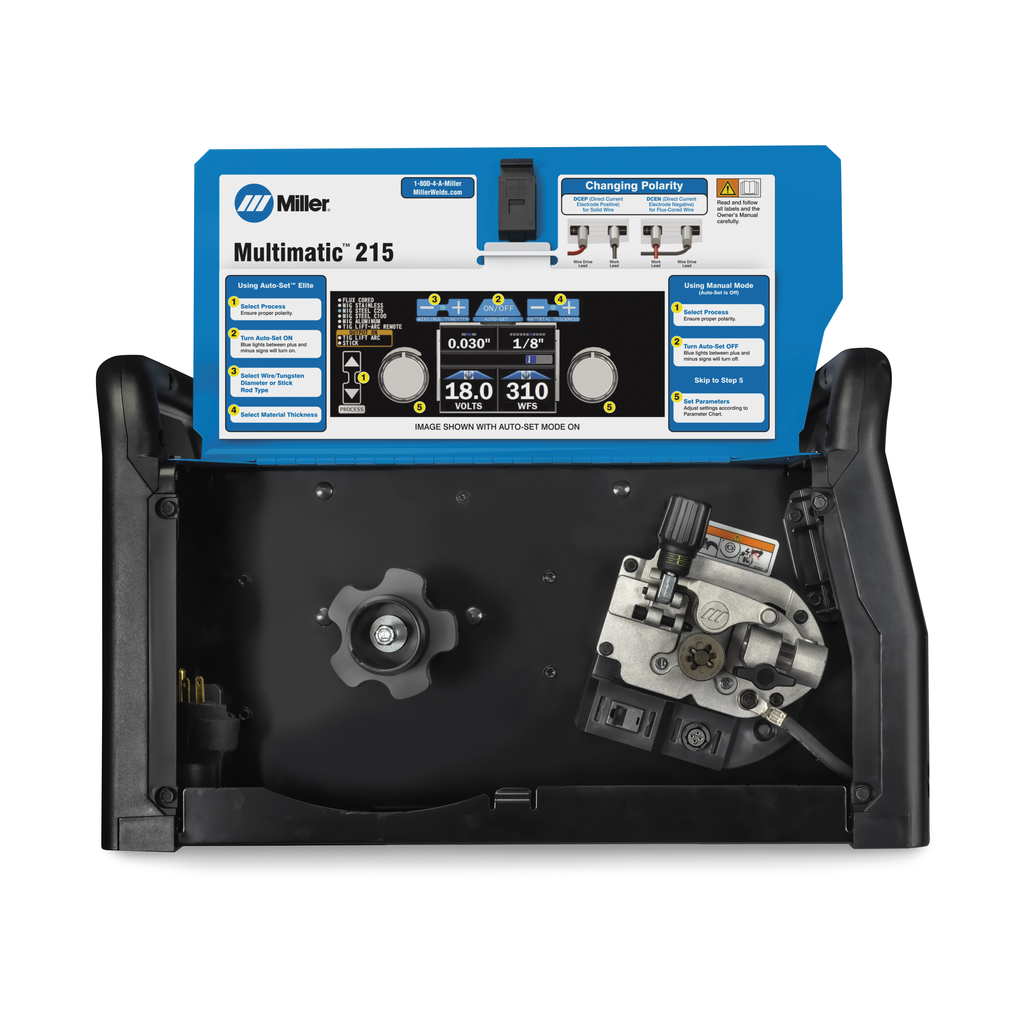

• Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.
• Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
• MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.
• Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.
• Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.

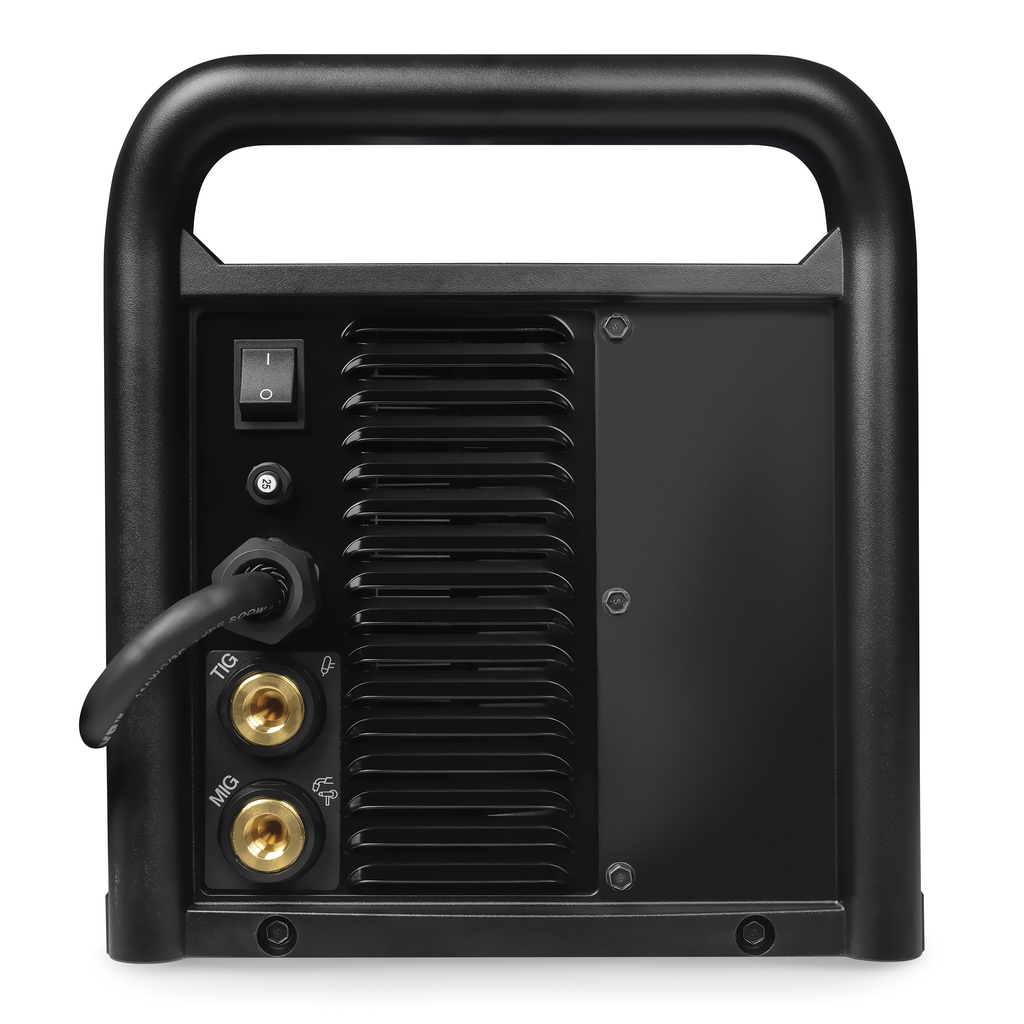

• There are two gas connections on the back of the machine—one for MIG and one for TIG.
• Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.

• Input Voltage: 110-120 V, 220-240 V
• Amperage Range: 20 A - 230 A
• Current Type: DC
• Weld Output: CC / CV
• Max Wire Feed Speed: 10.8 m/min (425 IPM)
• Min Wire Feed Speed: 1.2 m/min (60 IPM)
• Max Open Circuit Voltage: 58 VDC
• Material Thickness Range: 24 ga. - 3/8 in. mild steel
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Welding Processes: MIG, Flux-Cored, DC Stick, DC TIG
• Drive Roll Grooves: Three (two solid wire sizes, one flux-cored)
• Cooling System: Demand operated
• Input Phase: 1-Phase
• Input Frequency: 50/60 Hz
• Weight: 38 lb
• Country of Origin: United States
