Miller Electric, 907757, Multiprocess Welder, 30 A - 230 A, 12.5 ft TIG Torch, 21.5 in Length, 600 IPM Max Wire Feed

The Multimatic 220 AC/DC is the only machine in its class that offers users the ability to switch welding gas, polarity and welding process automatically while recalling the last MIG or TIG settings.

Features

• Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
• The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.
• The Multimatic 220 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
• Take on more projects with one machine that has MIG, Stick, AC and DC TIG.
• Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.
• Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set™ appears on the display and the number turns blue. Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).
• The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
• Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time. Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes. Automatically recalls the settings from the last process used.
• Superior Stick arc performance even on the difficult-to-run electrodes like E6010.

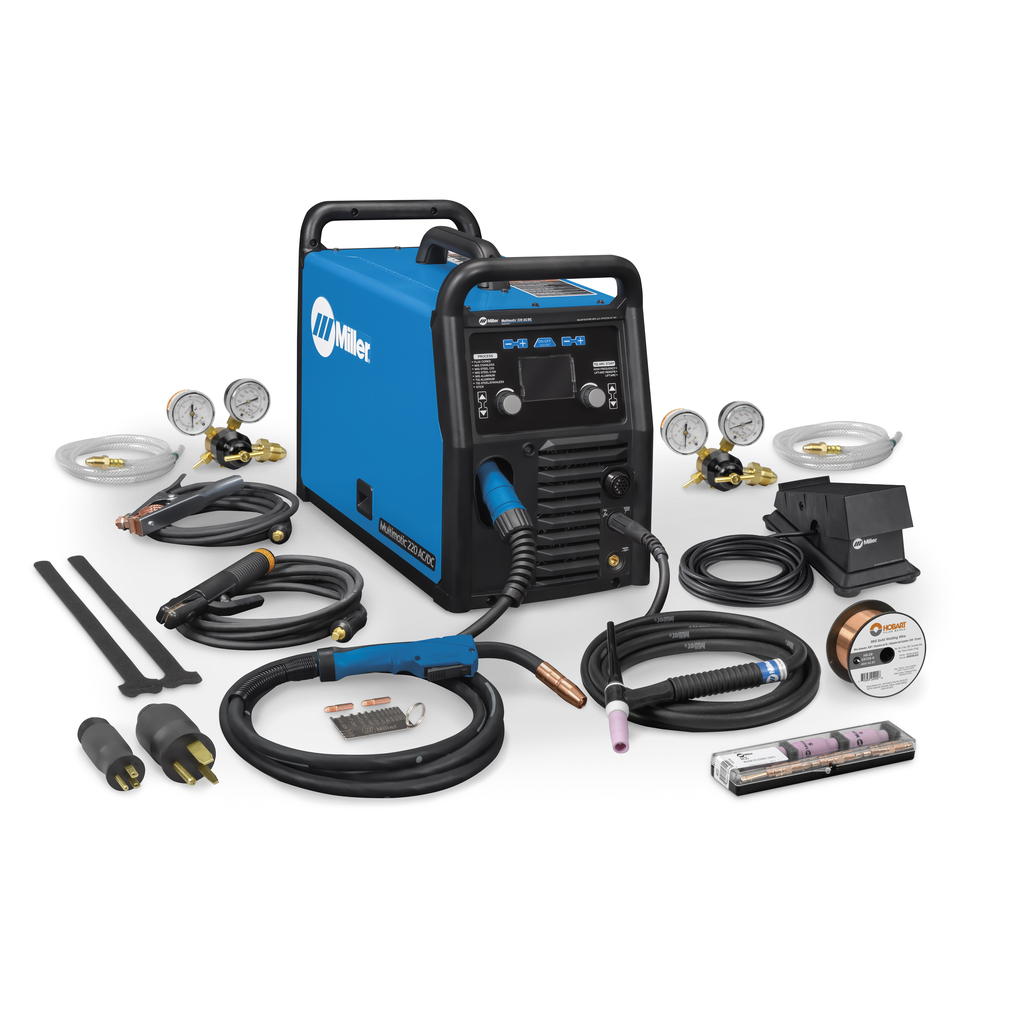

Includes

• 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
• 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
• Multimatic® 220 AC/DC
• Two Argon and AR/CO2 mix regulator/flow gauge with hoses
• Two contact tips for .030 in (0.8 mm) wire
• AK2C TIG torch accessory kit
• 12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25mm Dinse-style connector
• Spool of Hobart® .030 in (0.8 mm) solid wire
• Hook-and-loop cord wraps
• 10 ft MDX™-100 MIG Welding Gun
• Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
• RFCS-14 HD foot control with 20 ft (6 m) cord
• Material thickness gauge #229895
• 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector

Does Not Include

• Spool gun for aluminum MIG welding
• Safety Equipment
• Shielding gas

• Input Voltage: 110/115/120 V, 220/230/240 V
• Amperage Range: 20 A - 230 A
• Input Frequency: 50/60 Hz
• Welding Mode: CC / CV
• Current Type: AC / DC
• Max Wire Feed Speed: 600 IPM (15.2 m/min)
• Min Wire Feed Speed: 60 IPM (1.5 m/min)
• Max Open Circuit Voltage: 46 VDC
• Material Thickness Range: 24 ga. - 3/8 in. Mild Steel (MIG)
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Spool Size: 8 in.
• Length: 21.5 in.
• Width: 11.25 in.
• Height: 17.5 in.
• Weight: 56 lbs
• Wire Size Compatibility: .024 in (0.6 mm), .030/.035 in (0.8/0.9 mm)
• Wire Type Compatibility: Solid and flux cored wire
• Country of Origin: United States
• Power Cord Length: 6.5 ft (2 m)
• Cable Length: 13 ft (4 m)
• Connector Type: 25 mm Dinse-style
• TIG Torch Length: 12.5 ft (3.8 m)
• MIG Gun Length: 10 ft
• Foot Control Cord Length: 20 ft (6 m)
• Included Wire Size: .030 in (0.8 mm)
• Material: Hobart solid wire
