Miller Electric, 907752001, Engine Driven Welder, 800 A Max DC Welding Amperage, 12000 W Single-Phase Power, Diesel, 25 gal Fuel Tank

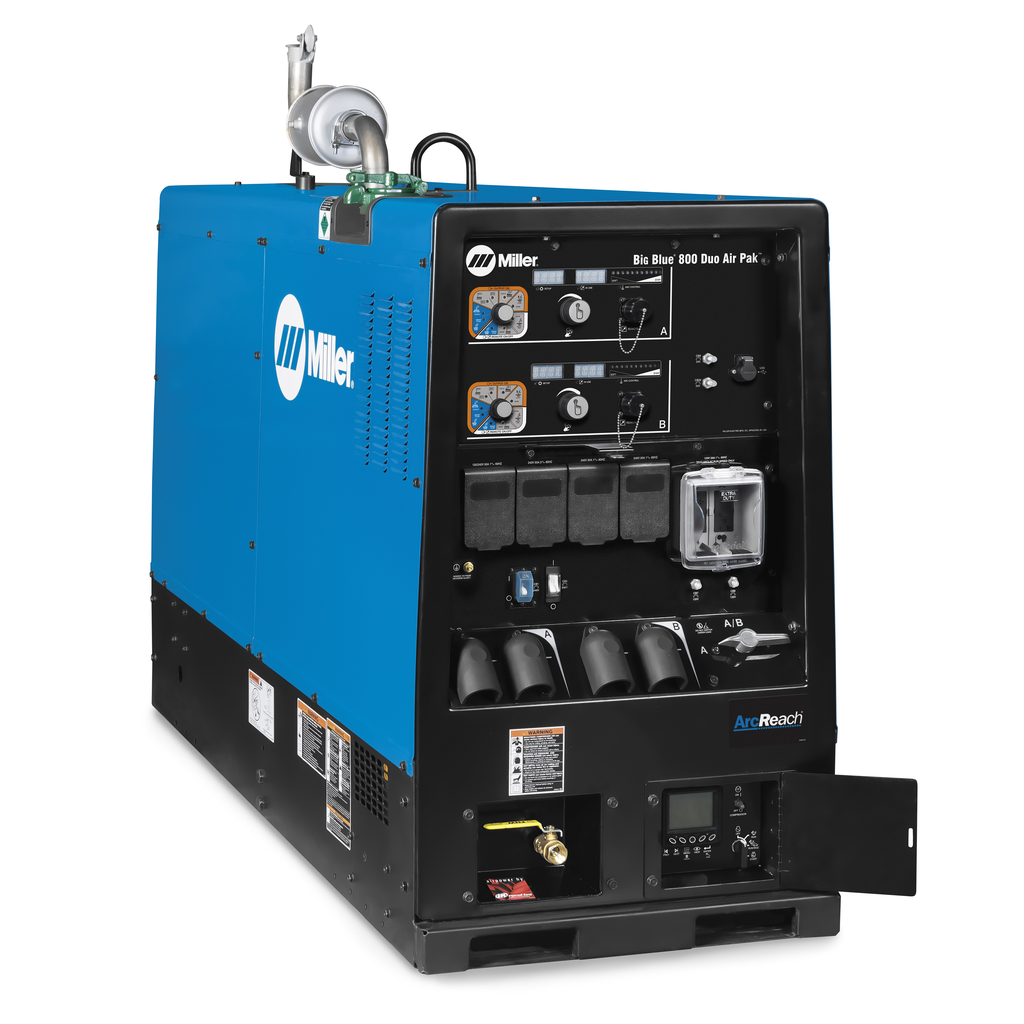

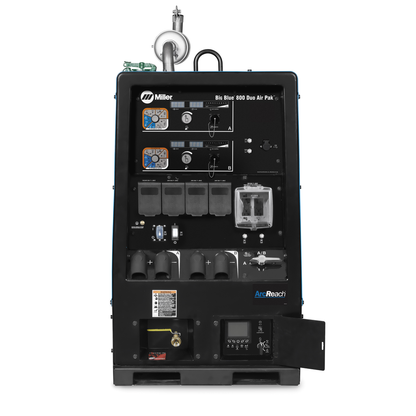

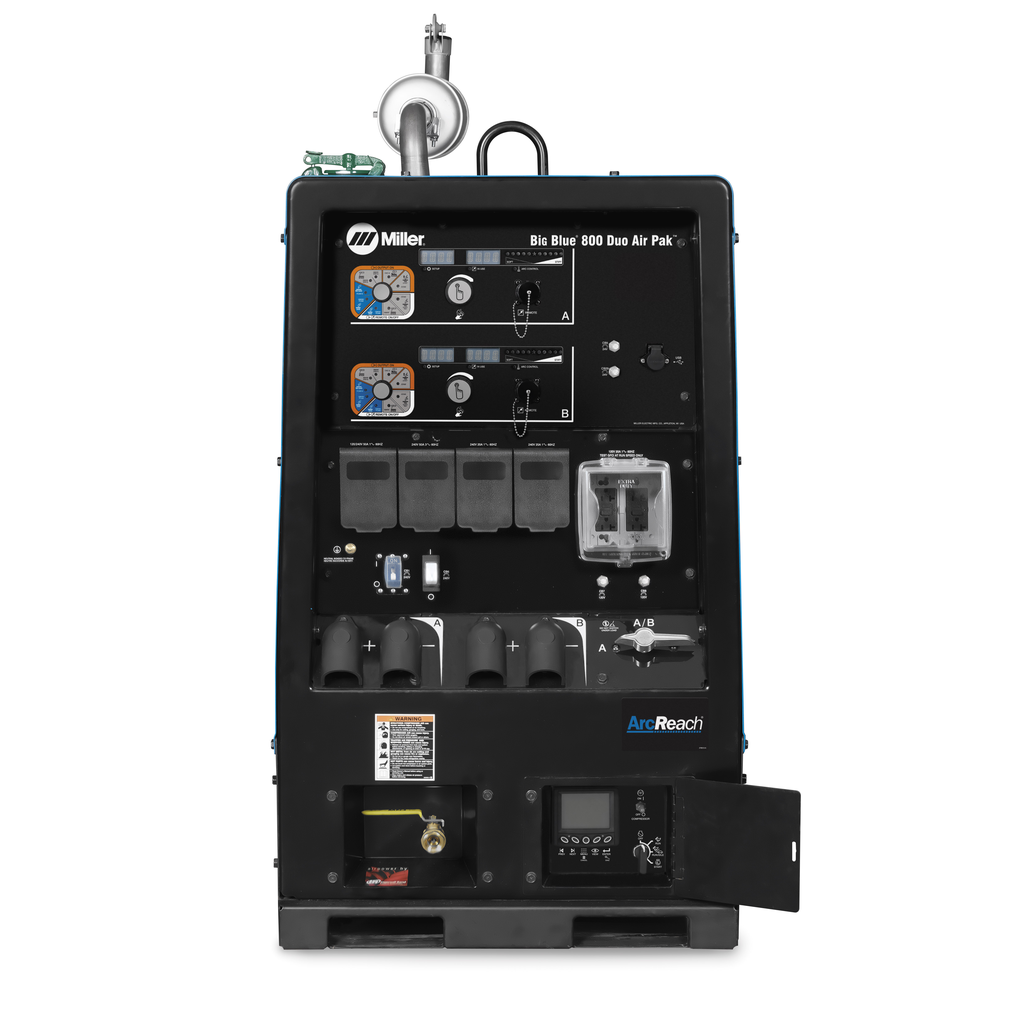

The Big Blue 800 Duo Air Pak Work Truck Model has the critical controls located within easy reach of a ground based operator when the machine is mounted on the bed of a large-body truck.

Features

• More arcs and better fuel economy equal increased profits for your business. Estimated savings are 34-percent with a dual-operator unit versus two single-operator units.
• More arc-on time, and reduced exposure to slip, trip, and fall hazards can be realized using ArcReach because less time is spent going back to the welding power supply to set process and arc amperage or voltage.
• Electronic engine display simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, air pressure and engine RPMs. Also tracks oil change intervals and displays engine diagnostics for quick and easy servicing.
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
• One dependable engine - two independent arcs with up to 400 amps each (or 800 amps for a single operator). Plug in additional inverter welders for a true multi-operator (3+ arc) work platform!
• Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.
• Take charge of your field preheat and bakeout applications up to 600 degrees Fahrenheit (315°C). This system uses induction heating to generate heat in workpieces, so welders can do their own preheating quickly and safely. A part of the ArcReach technology platform, the ArcReach Heater is an accessory for select ArcReach welding power sources.
• Ultra-reliable industrial rotary screw air compressor. 30,000-hour life expectancy. Independent on/off control for applications not requiring compressed air — allows greater fuel savings and longer compressor service intervals.
• Output contactor control, digital meters with SunVision™ automatic idle, thermal overload protection, and 120-volt engine block heater.
• ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.
• The cleanest, greenest diesel power available. DEUTZ T4F models utilize diesel oxidation catalyst (DOC) technology to keep the air clean with NO exhaust after-treatment maintenance.

Does Not Include

• Weld leads

• Weld Amperage: 20 A - 800 A, max 800 A DC
• Three-Phase Generator Continuous Power: 20000 W
• Three-Phase Generator Peak Power: 27000 W
• Single-Phase Generator Continuous Power: 12000 W
• Single-Phase Generator Peak Power: 15000 W
• Max Open Circuit Voltage: 85 VDC
• Horsepower: 65.7 hp
• Engine Idle Speed: 1350 RPM
• Engine Weld Speed: 1800 RPM
• Fuel Tank Size: 25 gal.
• Compressor Free Air Delivery: 60 cfm (1.70 m3/min.)
• Compressor Working Pressure: 100 psig
• Compressor Duty Cycle: 100%
• Compressor Automatic Shutdown: Oil temperature
• Cold Weather Starting Aids: Engine Block Heater (120V), Glow Plugs
• Fuel Type: Diesel
• Weld Output: CC / CV
• Rated Output: Dual outputs: CC/DC - 400 A at 36 V; CV/DC - 400 A at 34 V. Paralleled outputs: CC/DC - 700 A at 44 V, 800 A at 38 V; CV/DC - 750 A at 40 V, 800 A at 38 V
• Rated Carbon Diameter: 1/2 in (12.7 mm)
• Height: 46 in.
• Length: 69.5 in.
• Width: 28.5 in.
• Weight: 2095 lbs
• Compressor Brand: Ingersoll Rand Screw-Type
• Engine Brand: Deutz
• Engine Compliance: T4F, diesel oxidation catalyst (DOC)
• Sound Rating: Idle: 71.3 dB / Weld: 78.9 dB
• Compressor Life Expectancy: 30,000 hours
• Field Preheat Temperature: Up to 6006F (3156C)
• Power Output Control: Output contactor, digital meters with thermal overload protection
• Country of Origin: United States
