Miller Electric, 907737004, Engine Driven Welder, 600 A, Diesel, Wireless Control, 25 gal Fuel Tank, 69.5 in Length

This EPA Tier 4 Final 600 amp engine-driven welder tackles tough jobs that require high-output for welding, gouging and auxiliary power. Now with optional Wireless Interface Control, you can work hassle-free with full control of the machine in the palm of your hand.

Features

• Get full control of your machine in the palm of your hand, from wherever you are on the jobsite, so you can work hassle free. With wireless interface control, you can: Change welding processes Adjust parameters Select and save preset programs Turn the machine on/off View service reminders And more! Extend time between fill ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.
• Remote oil drain to prevent spills and make servicing easy, digital preset weld meters, automatic idle, and 120V block heater for cold environments.
• The Low OCV stick welding function is a simple design that reduces the open-circuit voltage to 15 volts when the welding power source is not in use without compromising arc starts.
• The cleanest/greenest power available. Utilizes Diesel Oxidation Catalyst (DOC) technology to keep the air clean with NO exhaust after-treatment maintenance.
• Prevents machine damage if the duty cycle is exceeded or airflow is blocked.
• Critical controls are located within easy reach for a ground-based operator when the machine is mounted on the bed of a large-body truck.
• Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
• Electronic engine display simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, and engine RPMs. Also tracks oil change intervals and displays engine diagnostics for quick and easy servicing.
• ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.

Includes

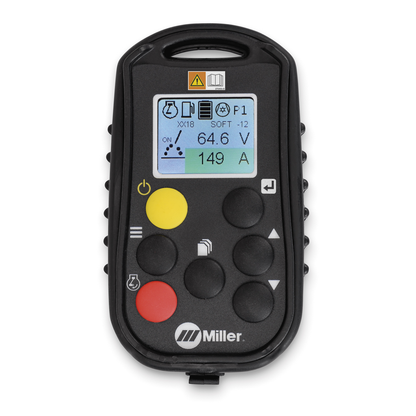

• Wireless Interface Control remote

Does Not Include

• Weld leads

• Max DC Welding Amperage: 600 A
• Max Open Circuit Voltage (VDC): 92 V
• Engine Compliance: T4F (EPA Tier 4 Final)
• Single-Phase Generator Peak Power (W): 15000 W
• Three-Phase Generator Peak Power (W): 27000 W
• Single-Phase Generator Continuous Power (W): 12000 W
• Three-Phase Generator Continuous Power (W): 20000 W
• Height: 46 in.
• Length: 69.5 in.
• Width: 28.5 in.
• Weight: 1750 lb
• Rated Output: 500 A at 40 V (100% duty cycle), 550 A at 42 V (60% duty cycle), 600 A at 42 V (40% duty cycle)
• Engine Idle Speed: 1350 RPM
• Engine Weld Speed: 1800 RPM
• Horsepower (hp): 48.9 hp
• Fuel Tank Size: 25 gal
• Fuel Type: Diesel
• Current Type: DC
• Amperage Range: 20 A - 600 A
• Rated Carbon Diameter: 3/8 in (9.5 mm)
• Weld Output: CC/CV
• Weldable Metals: Stainless Steel, Steel
• Cold Weather Starting Aids: Engine Block Heater, Glow Plugs
• Engine Brand: Kubota
• Country of Origin: United States
