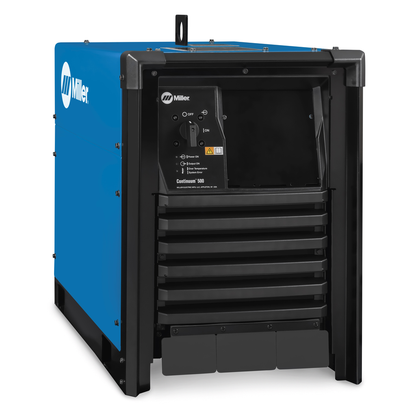

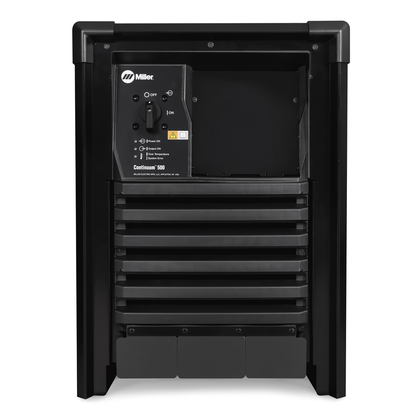

Miller Electric, 907641, MIG Welder, 1/2 in Carbon Diameter; CC/CV; 220/240/380/400/460/480/575 V

New generation of advanced industrial welding solutions improves productivity through weld quality, ease of use and system flexibility.

Features

• Superior Arc Performance: Improved Accu-Pulse provides less spatter, better arc control and less heat input. Very forgiving with changes in stick-out Improved MIG performance. Consistently smooth arc starts reduce spatter Improved RMD, designed for thin materials and gap filling with very low spatter New High-Deposition MIG process typically used for thicker material and larger welds. Provides lower heat input and higher deposition rates than standard spray transfer
• Balanced-pressure drive-roll design and tensioners: Feed wire in its truest and straightest form for better feedability, resulting in better welding performance.
• LCD Display: New user interface makes the system easy to set up and adjust with minimal training. Shows complete words, graphics and numeric values.
• All-new power source design: Smart and powerful digital design has the fast response needed to deliver the most stable welding performance for better welding results. Developed as a platform to meet current and future needs with integrated expansion capabilities.
• Tool-less lockable rotatable drive: Allows operator to rotate the drive, eliminate severe bends in the wire feeding path Extends gun-liner life Aids in feeding difficult wires
• Easy to set up and adjust with minimal training: 8 program/memory buttons USB functionality for updates, cloning and more Browser-based connection to view and adjust machine parameters, configure machine settings and ability to set locks and limits
• All-new feeder design: Faster motor response provides the best arc starts with the least amount of spatter. Tru-Feed ™ Technology provides precise feeding operation for stable arc performance.
• Adaptable to a Variety of Weld Cell Configurations: Flexible user interface location (power source, feeder, remote operator interface). Welding Intelligence™ Solutions: Insight Core™ (standard) and Insight Centerpoint™ (optional). Easily add process and programs. Wire feeder is easily configurable for standard spool sizes, 60-pound spools or bulk-feeding systems.

• Amperage: 500A
• Input Voltage: 220/230/240 V;380/400 V;460/480 V;575 V, 3-Phase, 50/60 Hz
• Duty Cycle: 100%
• Max Open Circuit Voltage: 75 VDC
• Rated Carbon Diameter: 1/2 in (12.7 mm)
• Weld Output: CC/CV
• Height: 27.19 in.
• Length: 28.13 in.
• Width: 17.5 in.
• Weight: 148 lb. (67.1 kg)
• Series: ContinuumTM
• Weldable Metals: Stainless Steel; Steel
• Rated Output Voltage: 39 VDC
• Wire Feed Speed: 50-1000 ipm (1.27-25.4 m/min)
• Maximum Spool Size: 18 in. (457 mm), 60 lb. (27 kg)
• Wire Diameter Capacity: .035-5/64 in. (0.9-2.0 mm)
• Compliance: Certified by Canadian Standards Association to Canadian and U.S. Standards
• Country of Origin: United States
