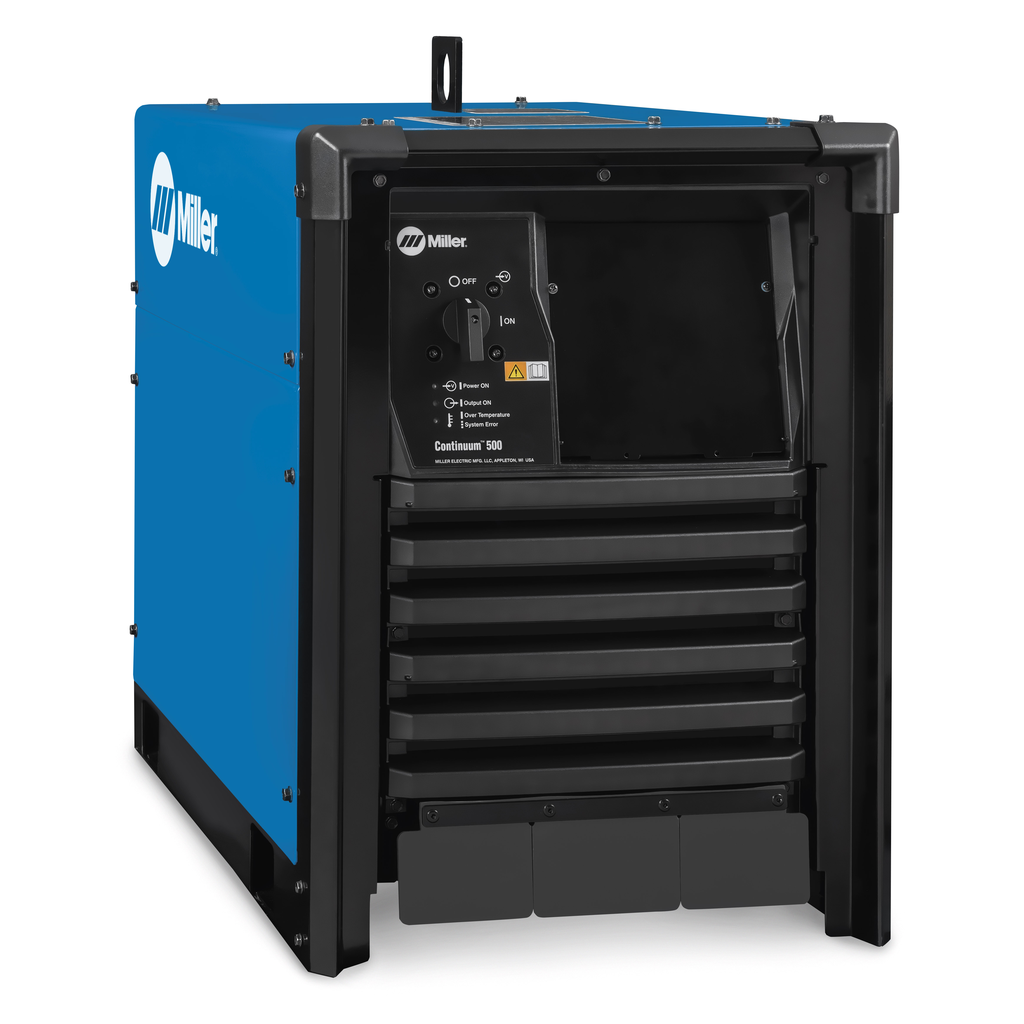

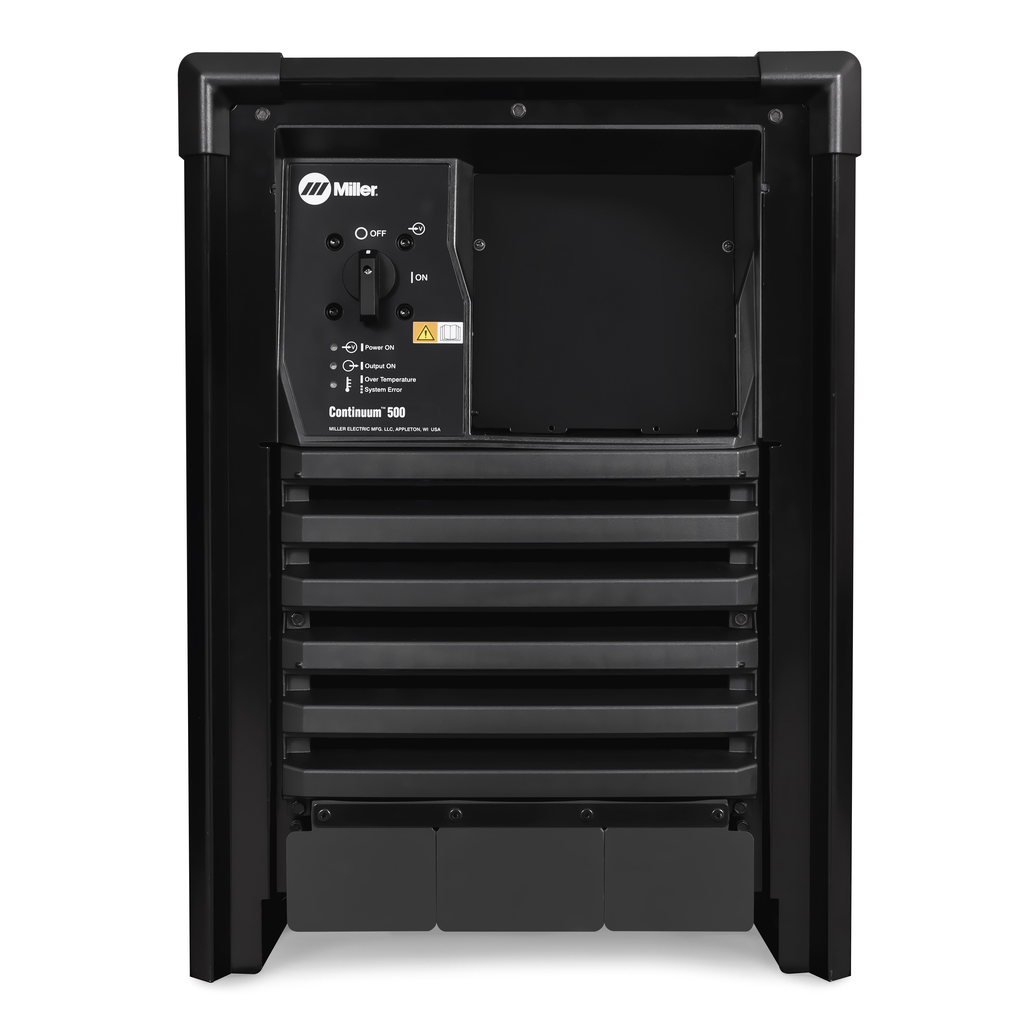

Miller Electric, 907640, MIG Welder, 3-Phase, 220/230/240 V; 380/400 V; 460/480 V; 575 V, ContinuumTM Series

New generation of advanced industrial welding solutions improves productivity through weld quality, ease of use and system flexibility.

Features

• New Weld Processes: Versa-Pulse™ is a fast, low-heat, low-spatter process resulting in faster travel speeds and increased productivity for semi-automated and automated welding. Typically used on thin materials up to 1/4 inch., great for gap filling on sheet metal and tube applications. High-Deposition MIG offers higher deposition rates than standard spray transfer — resulting in faster welding and increased productivity. Typically used for thicker material and larger welds (6 to 8 mm).
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• All-new power source design: Smart and powerful digital design has the fast response needed to deliver the most stable welding performance for better welding results. Developed as a platform to meet current and future needs with integrated expansion capabilities.
• Adaptable to a Variety of Weld Cell Configurations: Flexible user interface location (power source, feeder, remote operator interface). Welding Intelligence™ Solutions: Insight Core™ (standard) and Insight Centerpoint™ (optional). Easily add process and programs. Wire feeder is easily configurable for standard spool sizes, 60-pound spools or bulk-feeding systems.
• Balanced-pressure drive-roll design and tensioners: Feed wire in its truest and straightest form for better feedability, resulting in better welding performance.
• Superior Arc Performance: Improved Accu-Pulse provides less spatter, better arc control and less heat input. Very forgiving with changes in stick-out Improved MIG performance. Consistently smooth arc starts reduce spatter Improved RMD, designed for thin materials and gap filling with very low spatter New High-Deposition MIG process typically used for thicker material and larger welds. Provides lower heat input and higher deposition rates than standard spray transfer
• LCD Display: New user interface makes the system easy to set up and adjust with minimal training. Shows complete words, graphics and numeric values.
• Easy to set up and adjust with minimal training: 8 program/memory buttons USB functionality for updates, cloning and more Browser-based connection to view and adjust machine parameters, configure machine settings and ability to set locks and limits
• All-new feeder design: Faster motor response provides the best arc starts with the least amount of spatter. Tru-Feed ™ Technology provides precise feeding operation for stable arc performance.
• Tool-less lockable rotatable drive: Allows operator to rotate the drive, eliminate severe bends in the wire feeding path Extends gun-liner life Aids in feeding difficult wires

• Input Voltage: 220/230/240 V; 380/400 V; 460/480 V; 575 V
• Input Phase: 3-Phase
• Rated Output: 500 A at 100% duty cycle
• Output Range: 20 600 A, 10 44 V
• Max Open Circuit Voltage: 75 VDC
• Duty Cycle: 100% at 500 A
• Input Hz: 50/60 Hz
• Current Type: DC
• Weld Output: CC / CV
• Wire Diameter Capacity: 0.035 5/64 in (0.9 2.0 mm)
• Wire Feed Speed: 50 1000 ipm (1.27 25.4 m/min)
• Maximum Spool Size Capacity: 18 in (457 mm), 60 lb (27 kg)
• Weight: 148 lb (67.1 kg)
• Dimensions (HxWxD): 27.2 in x 17.8 in x 27.9 in
• Height: 27.2 in
• Width: 17.8 in
• Length: 27.9 in
• Weldable Metals: Stainless Steel, Steel
• Series: ContinuumTM
• Rated Carbon Diameter: 1/2 in (12.7 mm)
• Country of Origin: United States
• Processes: Versa-Pulse, High-Deposition MIG, Accu-Pulse, RMD, MIG, Short Circuit
• Feeder Weight (Dual): 61.5 lb (27.9 kg)
• Feeder Dimensions (HxWxD): 13.81 in x 17 in x 29.69 in (351 mm x 432 mm x 754 mm)
• Compliance: CSA Certified to U.S. and Canadian standards
