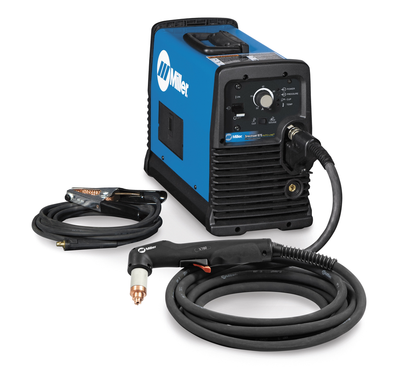

Miller Electric, 907584001, Plasma Cutter, 50-ft XT60 Torch, Max Thickness - Mild Steel: 0.87 in, Multi-Voltage: 208-575 V, Travel Speed: 15 IPM

Compact, 54 lb, multi-voltage (208-575V 1/3PH) unit cuts up to 7/8” mild steel.

Features

• Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
• Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components. Fan-On-Demand cooling system operates only when needed. In dirty or dusty environments, this feature reduces the amount of airborne dust/dirt pulled through the unit
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Use with generator power at or above 10 kW (e.g. Bobcat™) or equivalent competitive equipment.
• The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.
• Torch and work cable offer the fastest plasma torch and work cable connection and removal in the industry.
• The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting and gouging performance.
• Factory ready CNC/Automation models are available in long or short body torches as well as retrofit kits to convert hand held machines to be capable of CNC/Automation cutting.

Includes

• Heavy-duty work clamp and flexible cable with quick connect
• Torches include a complete set of 60 A consumables
• Extra consumables
• XT60 hand-held torch with 50-ft. (15.2 m) cable
• 10-ft. (3 m) power cord

Does Not Include

• Air source (compressor or bottled gas)
• Personal safety products (safety glasses, gloves)
• Power plug

• Input Voltage: 208 V|220/230/240 V|380/400/440 V|460/480 V|575 V
• Rated Output at 104 degrees F: 3-Phase: 208 V 60 A at 140 VDC 40% duty; 230-380 V 60 A at 140 VDC 50% duty; 380-575 V 60 A at 140 VDC 60% duty; 380-575 V 50 A at 140 VDC 100% duty; 1-Phase: 208 V 60 A at 140 VDC 40% duty; 230 V 60 A at 140 VDC 50% duty; 230 V 50 A at 140 VDC 100% duty
• Travel Speed - Mild Steel (IPM): 15
• Travel Speed - Stainless Steel (IPM): 15
• Travel Speed - Aluminum (IPM): 15
• Cutting Capacity: 7/8 in mild steel
• Max Thickness - Mild Steel (in): 0.87
• Max Thickness - Stainless Steel (in): 0.87
• Max Thickness - Aluminum (in): 0.62
• Capability Gouging: True
• Width (in): 8.75
• Length (in): 18.5
• Height (in): 13.5
• Weight: 54 lb
• Torch Cable Length: 50 ft
• Power Cord Length: 10 ft
• Phase: Single or Three Phase
• Metal Type: Mild Steel, Stainless Steel, Aluminum
• Input Frequency: 50/60 Hz
• Recommended Generator Power (W): 11000
• Country of Origin: United States
