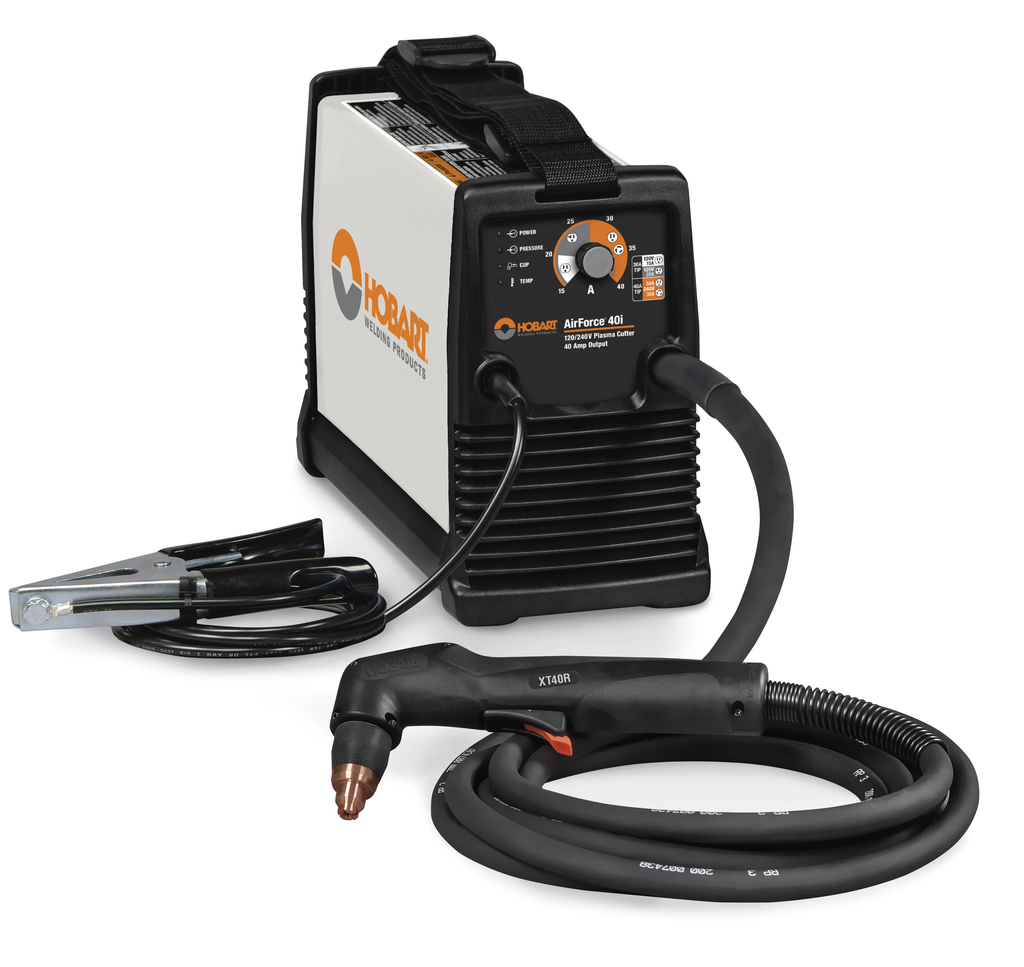

Hobart Welding Products, 500576, Plasma Cutter, 120/240 V, 40 A Max Cutting Amperage, 5/8 in Steel Cutting Capability, 12 ft Work Cable

Runs on 120 and 240 V input power and clean cuts 5/8" steel.

Features

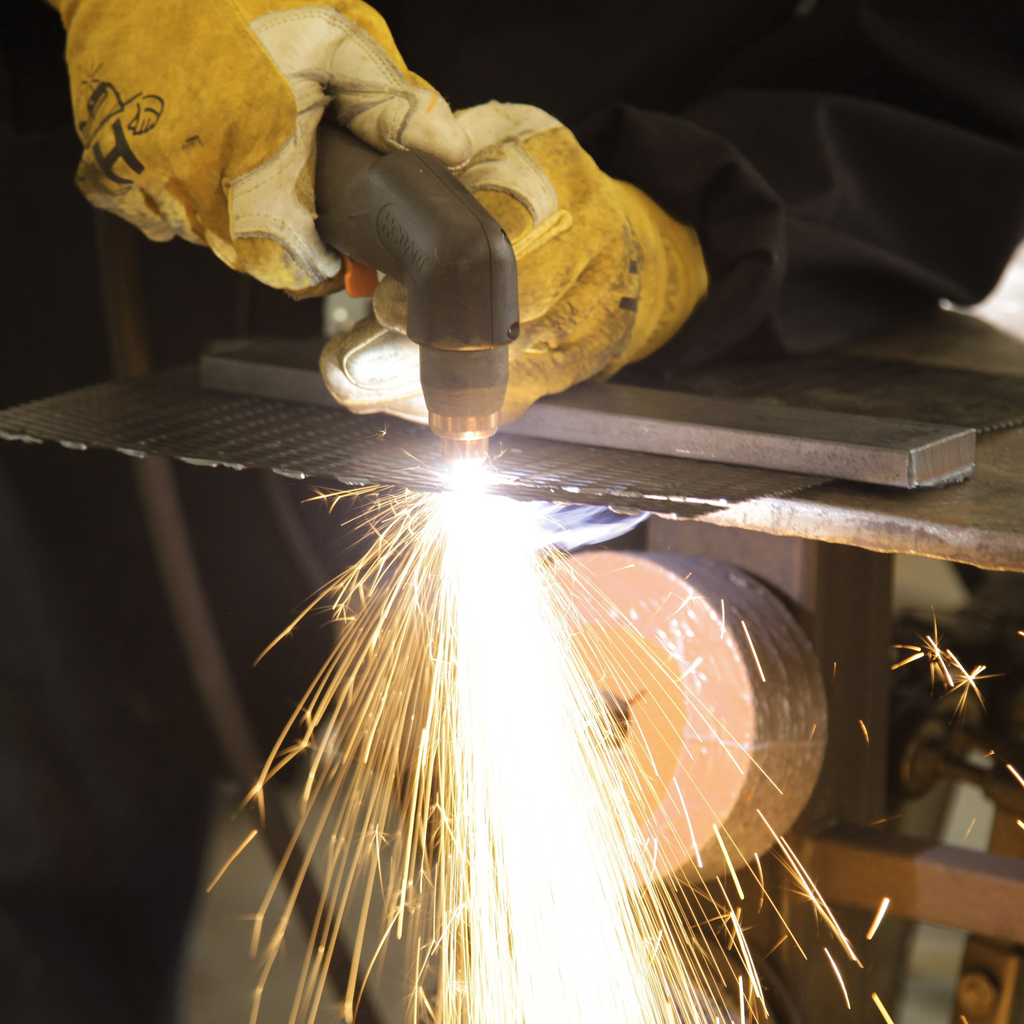

• Allows you to cut expanded/perforated metals, as well as painted or coated surfaces, without retriggering the torch.
• Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, Plasma and TIG torches).
• Controls amount of usage and flow or air or gas.
• Protects unit by not interfering with or damaging controls or computers.
• Adjusts gas pressure to optimize performance, eliminating the need for a manual regulator.
• It's easier to move to your work because it it's 30% lighter - weighs only 21 lbs. - than the previous version.
• Complete cutting capability when powered by an engine-driven welder with 240V receptacle of 8 kW or more
• Provides peak performance power under variable input voltage conditions (+/- 15%) for steady and cleaner-ending cuts.
• More versatile with the addition of MVP technology that allows for connection to 120 V and 240 V input power.
• Designed for increased comfort with an ergonomic trigger safety, more efficient cooling and economical replacement cutting tips
• Prevents abrasive dust and particles from damaging internal components.
• 50% smaller than the previous version making it easier to store in your garage or shop.
• Extends life of consumables and torch by cooling them with postflow air after trigger is released.
• Cooling system operates only when needed reducing power consumption and contaminants drawn into the machine.
• Draws up to 30% less amperage for the same cutting range as compared to the competition. PFC expands operators work area via extension cord, while minimizing nuisance circuit breaker trips caused by voltage drops.
• LED lights for quick troubleshooting of pressure, power and cup situations
• Allow connection to 120 or 240 V receptacles without tools - choose the adapter cord with the right plug that fits the receptacle, and connect it to the power cord with the L6-30R twist lock

Includes

• Cable management included
• 12 ft. (3.7 m) work cable with clamp
• 12 ft. (3.7 m) XT40R hand-held torch

• Voltage: 110/115/120 V, 220/230/240 V
• Amperage: 14 A Min, 40 A Max
• Cutting Capacity: 5/8 in Steel
• Length: 13.25 in
• Width: 5.5 in
• Height: 9 in
• Weight: 21 lb
• Current Type: DC
• Capability Gouging: With 40A gouge shield and tip
• Rated Output at 104 degrees F: 120 V (15A) 20A at 88 VDC 60% duty cycle, 120 V (20A) 27A at 91 VDC 35% duty cycle, 240 V 40 A at 140 VDC 60% duty cycle
• Country of Origin: United States
• Work Cable Length: 12 ft
