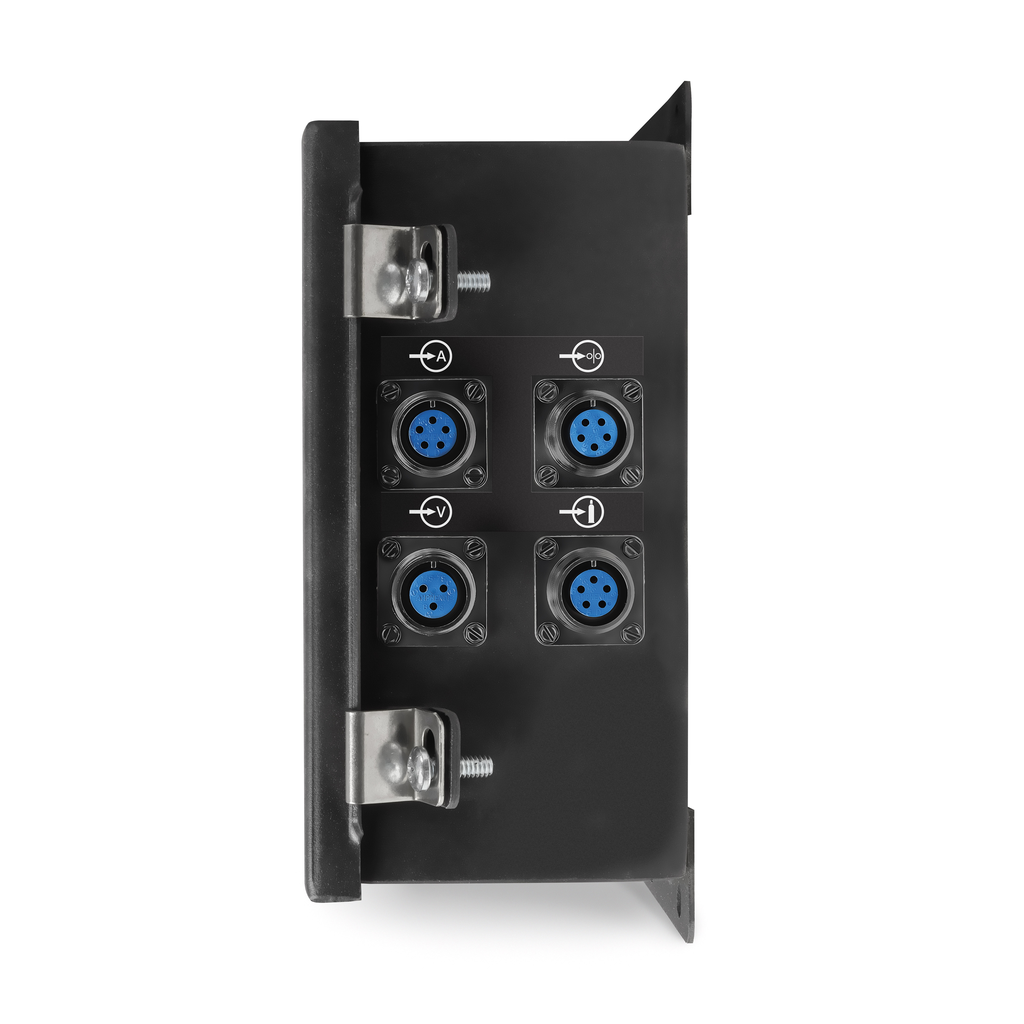

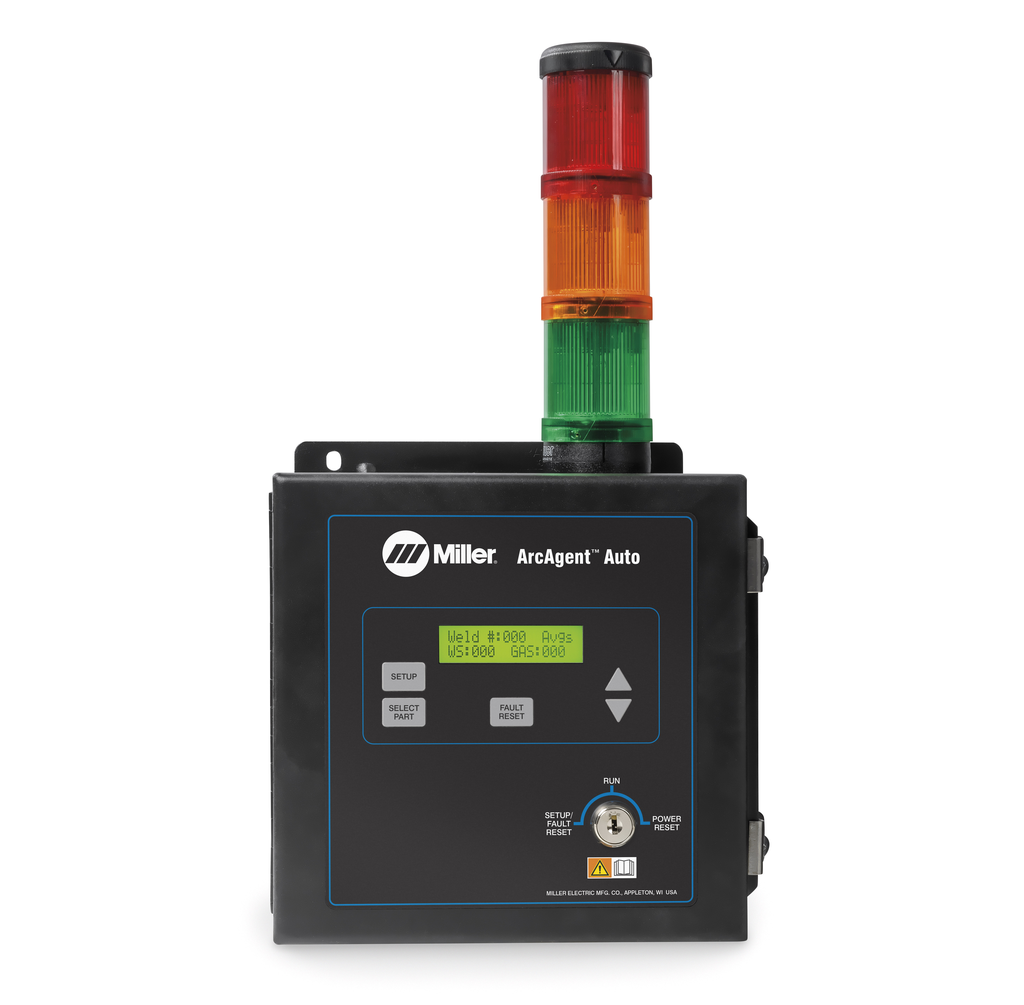

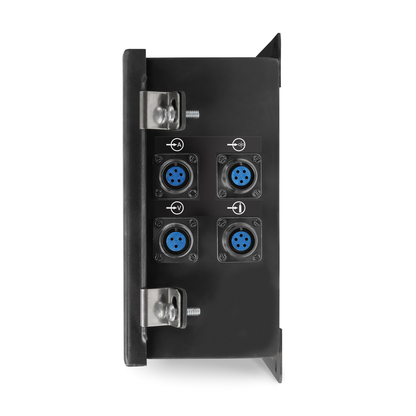

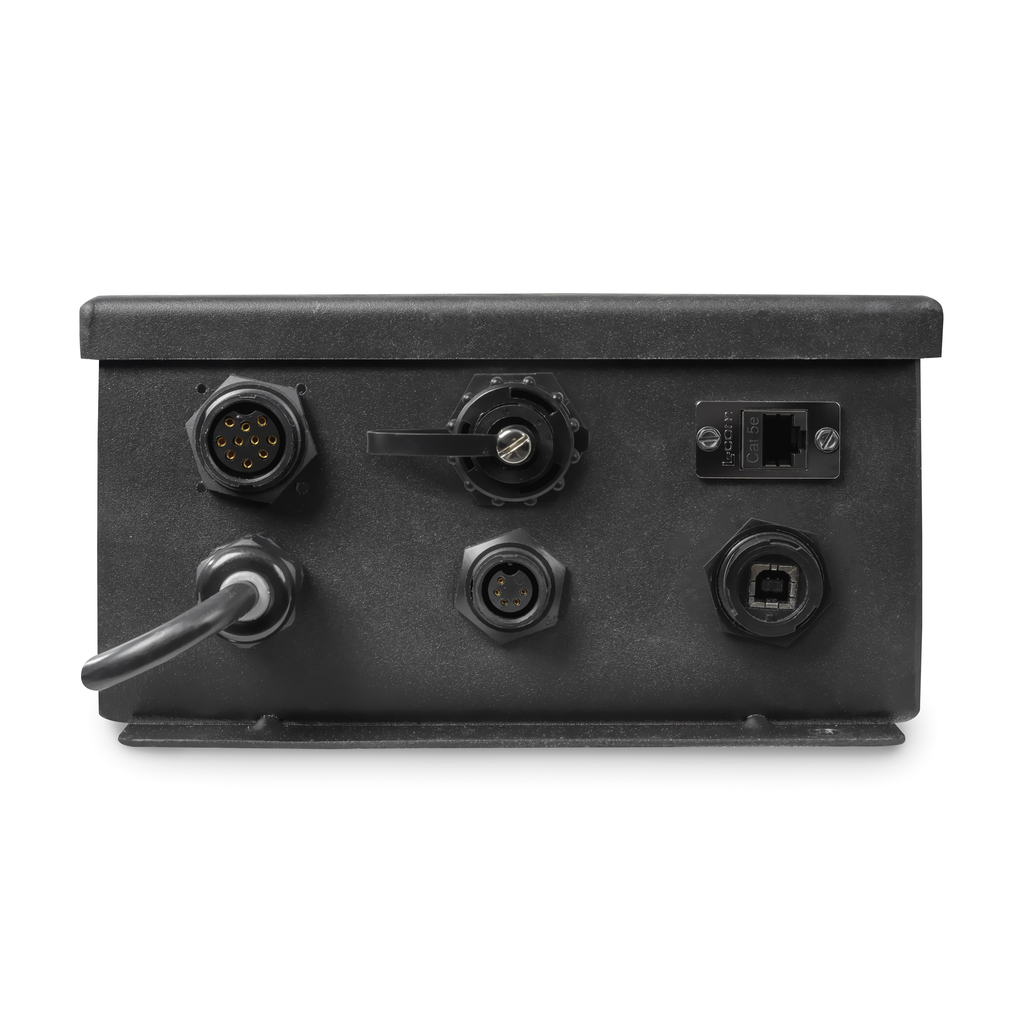

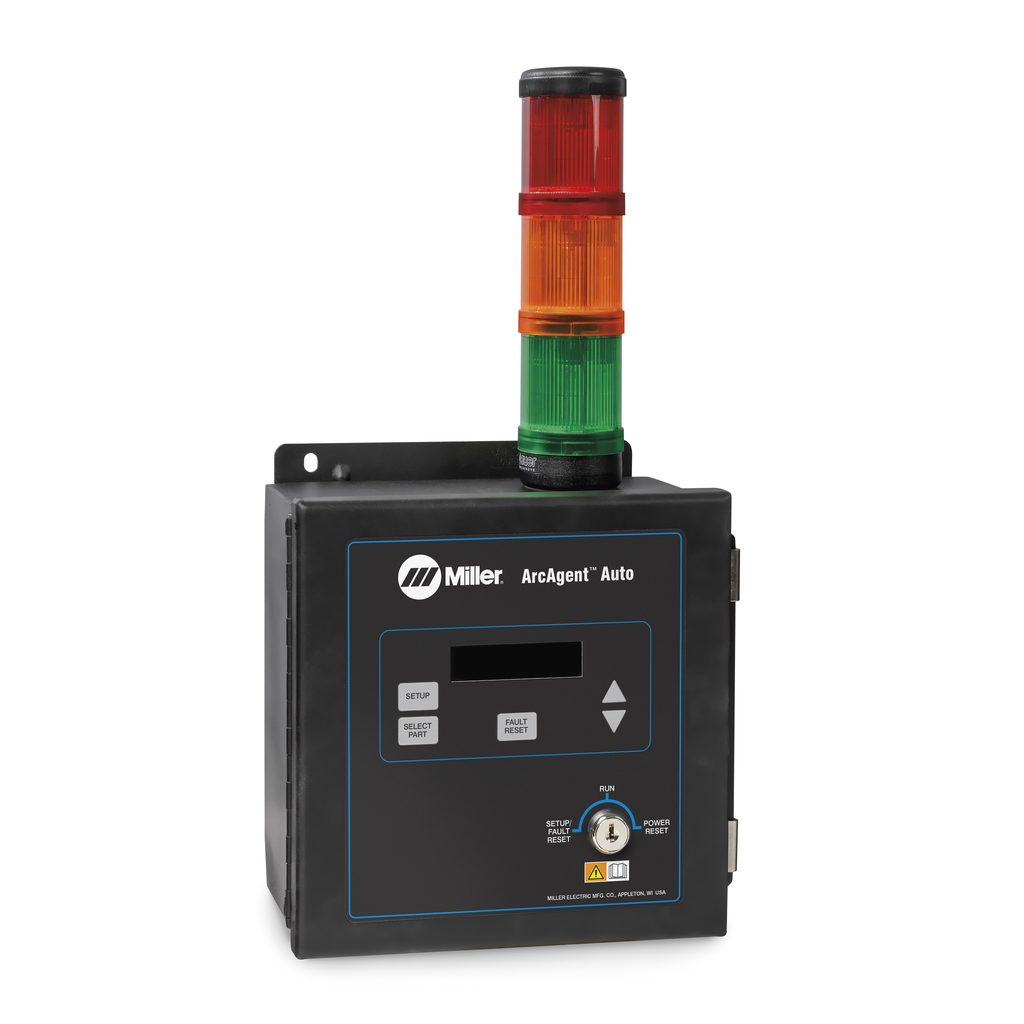

Miller Electric, 301346, Weld Data Acquisition System, 1-Phase, 110/115/120 V, 5 ft, AC/DC, CC/CV

Premium weld data acquisition solutions for any brand equipment, designed to integrate with Insight Centerpoint

Features

• Fault notifications via stack light, torch disable, digital I/O. Fault reset via key switch, digital I/O, or through Insight Centerpoint (password, RFID or barcode).
• GMAW, GMAW-P, GTAW, FCAW, SMAW, SAW, PAW, ESW, MIAB, CAW. (Not designed for resistance weld monitoring.)
• Required Part Tracking controls via digital I/O, or Centerpoint
• Fully supported by Insight Centerpoint when requirements call for data collection or advanced user interface. Basic setup and functionality does not require Insight Centerpoint software.
• Measures and monitors four primary welding parameters: amps, volts, wire feed speed, gas flow. Additional digital and analog channels available on select models via Auxiliary Sensor Module.
• When used with or without Insight Centerpoint™ software, helps weld operator ensure that a weldment is not missing any welds and that those welds were completed within specification.

• Input Voltage: 110/115/120 V, 208 V
• Input Phase: 1-Phase
• Input Frequency: 50/60 Hz
• Weld Output: CC / CV
• Welding Modes Supported: GMAW, GMAW-P, GTAW, FCAW, SMAW, SAW, PAW, ESW, MIAB, CAW
• Weldable Metals: Aluminum, Specialty Metals, Stainless Steel, Steel
• Current Type: AC / DC
• Length: 5 in.
• Width: 9 in.
• Height: 9.5 in.
• Weight: 11 lb
• Country of Origin: United States
