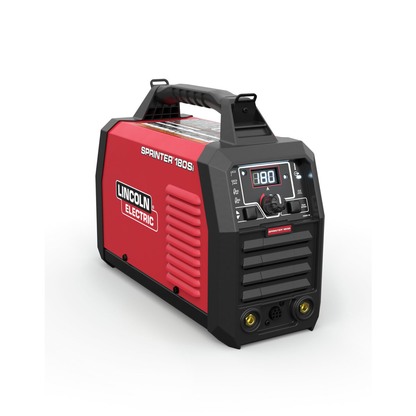

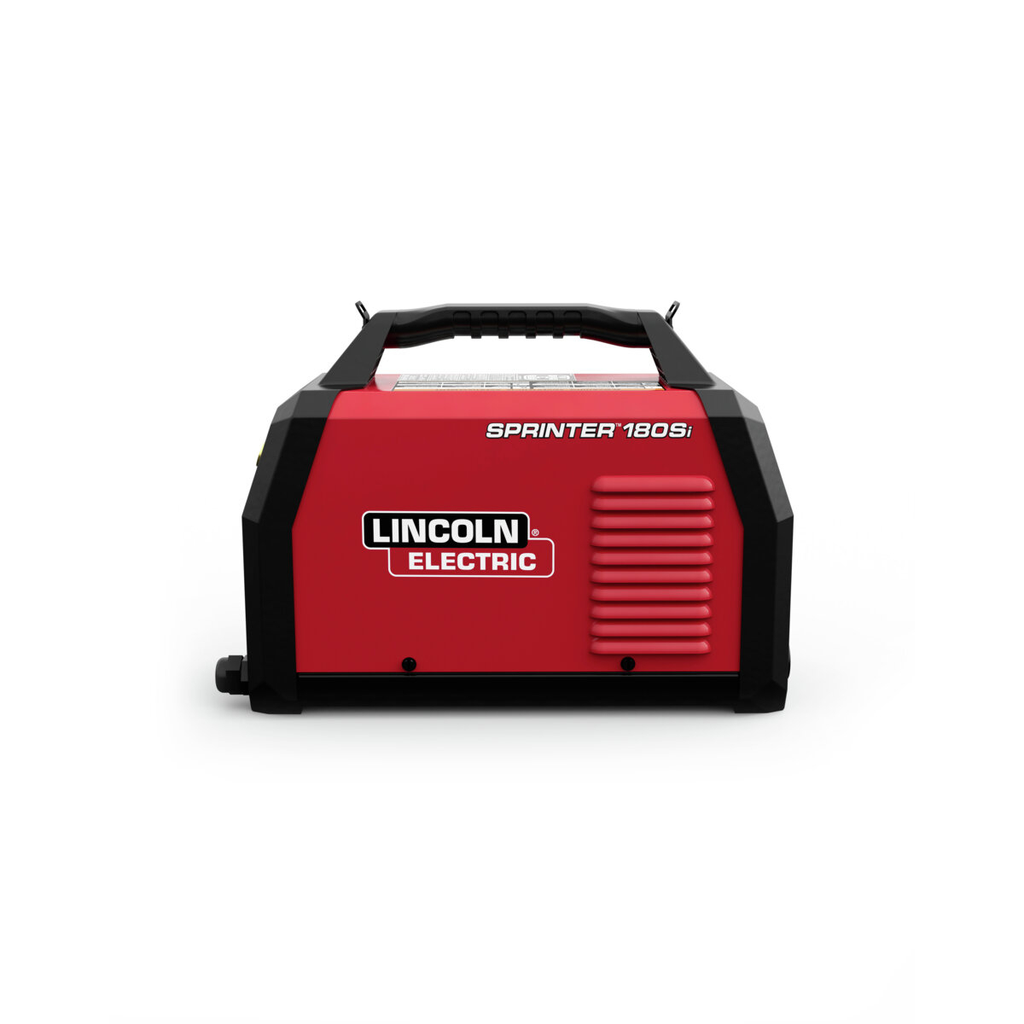

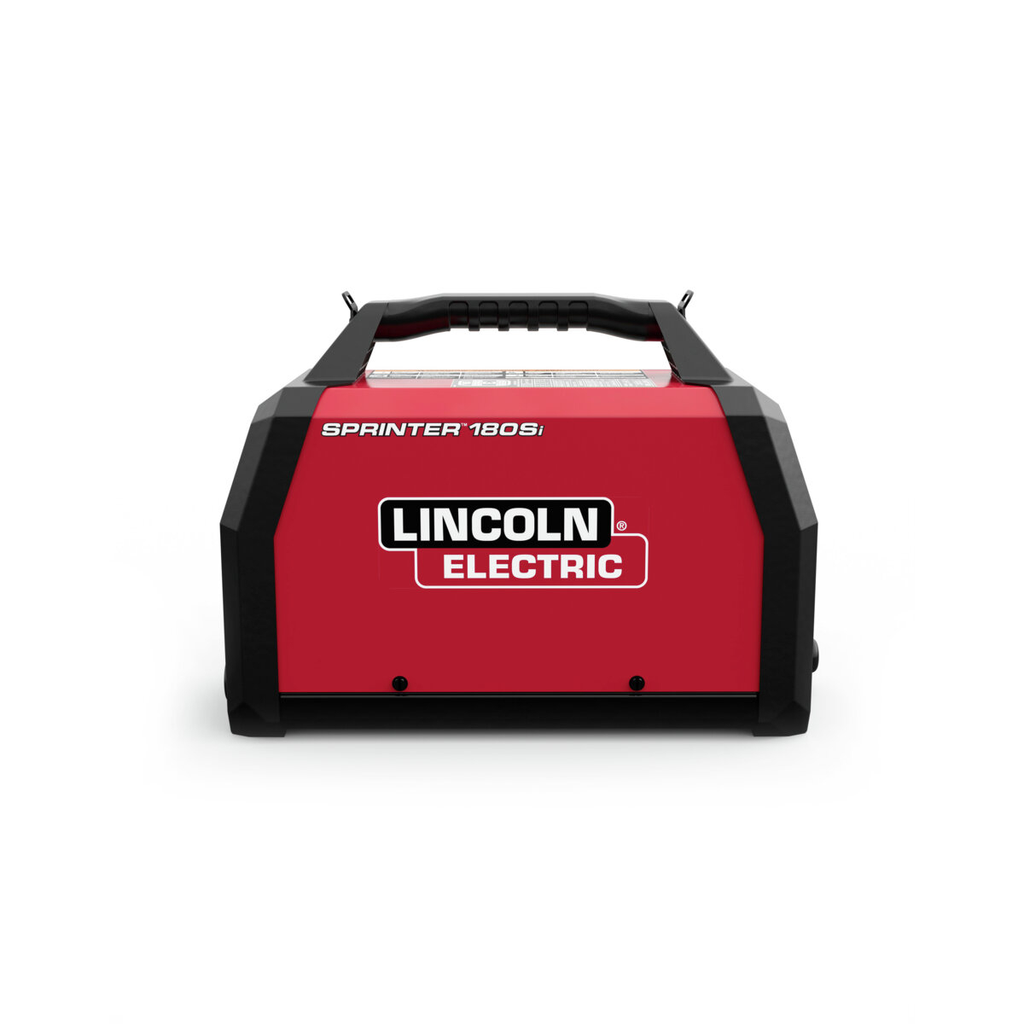

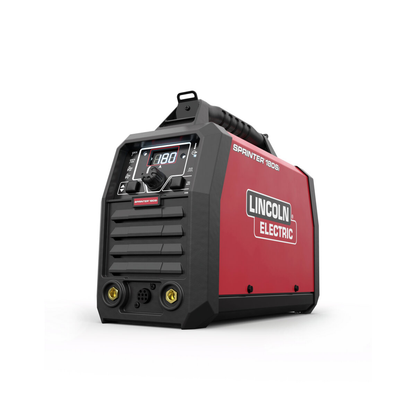

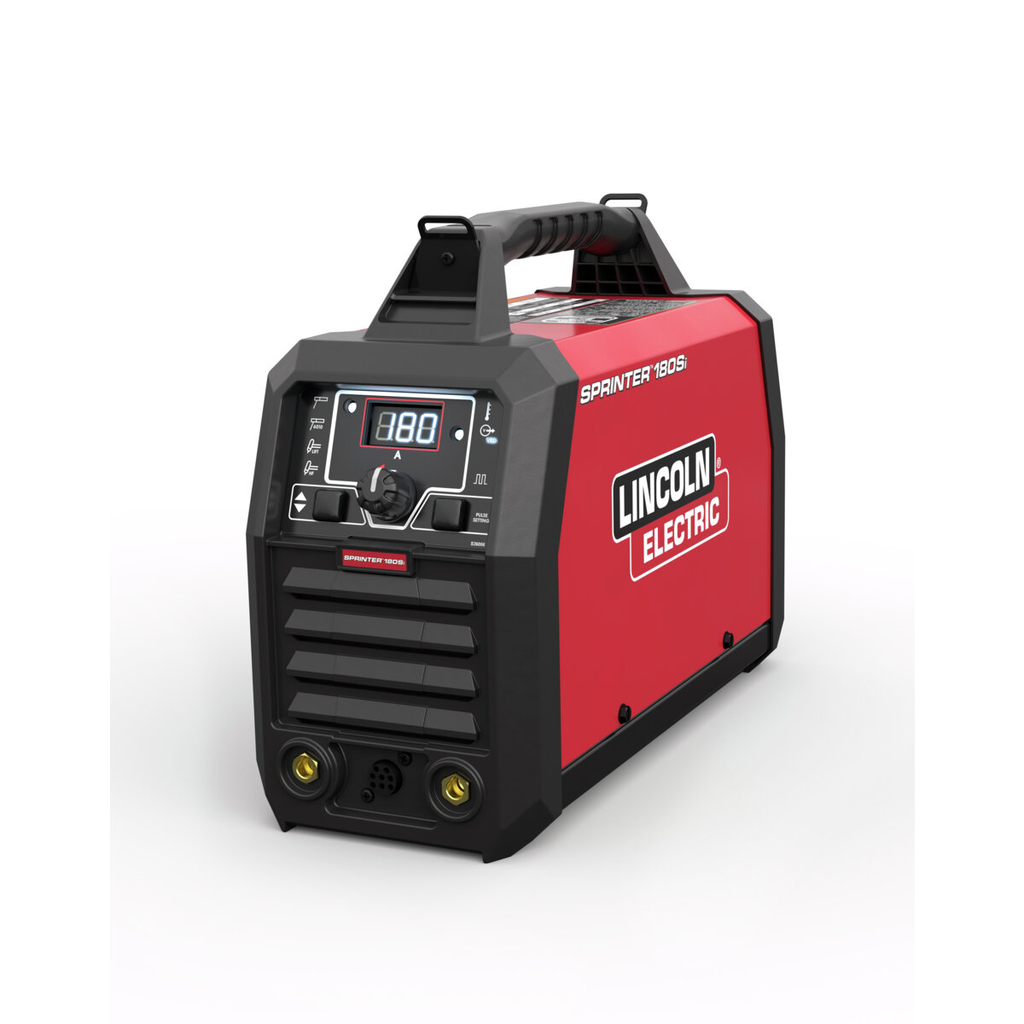

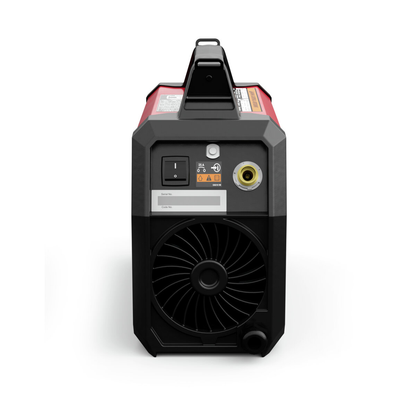

Lincoln Electric, K5453-1, Welder, 180A Output, Stick (SMAW); TIG (GTAW), Lightweight, Dual Voltage 120/230V

The Sprinter 180Si gives you power in a small package. Weighing in under 20 lbs. it's lightweight and portable, and the 180-amp output enables you to weld electrodes up to 5/32 inches, including 7018 and 6010. This machine is more than just a stick welder, the Sprinter 180Si combines superior stick capabilities with high-frequency TIG, pulsed TIG mode, amptrol compatibility and dual input voltage (120V/230V). A simple display allows you to dial the weld settings so you can get started quickly and easily on any job anywhere – maintenance work, light-fabrication, light structural and everything in between. The Sprinter 180Si is a stick welder and so much more.

What's Included?

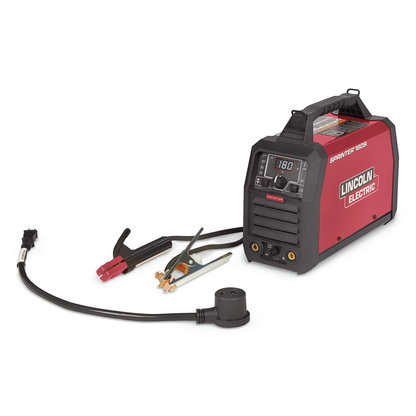

• (1) Sprinter™ 180SiWelder,(1) Insulated Electrode Holder and Cable,(1) Heavy Duty Work Clamp and Cable,(1) 230V to 120V Power Cord Adapter

Features

• High Frequency Start - Strike a precise arc every time while TIG welding
• Multi-Process Capable - Welds DC Stick and DC TIG.
• Two Stick Modes - Crisp arc allows for greater welding versatility and superior performance on E6010 and E6011 electrodes while soft arc allows for dependable E7018 arc starting.
• Pulsed TIG Mode - Provides heat management and enhanced control when making thin, precise welds.
• Lightweight Portability - This durable machine weighs under 20 lbs. and is easy to carry with its ergonomic handle or included shoulder strap.
• Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.

• Rated Output Current (Stick): 120V: 85A/23.2V/40%, 230V: 180A/26.4V/25%
• Rated Output Current (TIG): 120V: 110A/14.6V/40%, 230V: 200A/16.4V/25%
• Output Range: SMAW 120V: 20-85A, 230V: 20-180A; GTAW 120V: 10-110A, 230V: 0-200A; Max OCV 110V
• Open Circuit Voltage: Average 65V, Peak 110V, VRD Peak 14V
• Output Polarity: DC
• Input Voltage: 120/230V
• Input Current at Rated Output: 120V: 20-22A, 230V: 29-30A
• Input Power: 120/230V, 1 Phase, 60 Hz
• Max Rating: 200A
• Processes: Stick (SMAW), TIG (GTAW)
• Maximum Electrode Thickness: 5/32 in
• Weight: 20 lb (9.1 kg)
• Dimensions: 16 x 6.25 x 11.8 in (406.4 x 158.8 x 299.7 mm)
• Work Lead Connector Type: Dinse
• IEC Rating: IP21S
• Warranty Length: 3 Years
• Country of Origin: Mexico
