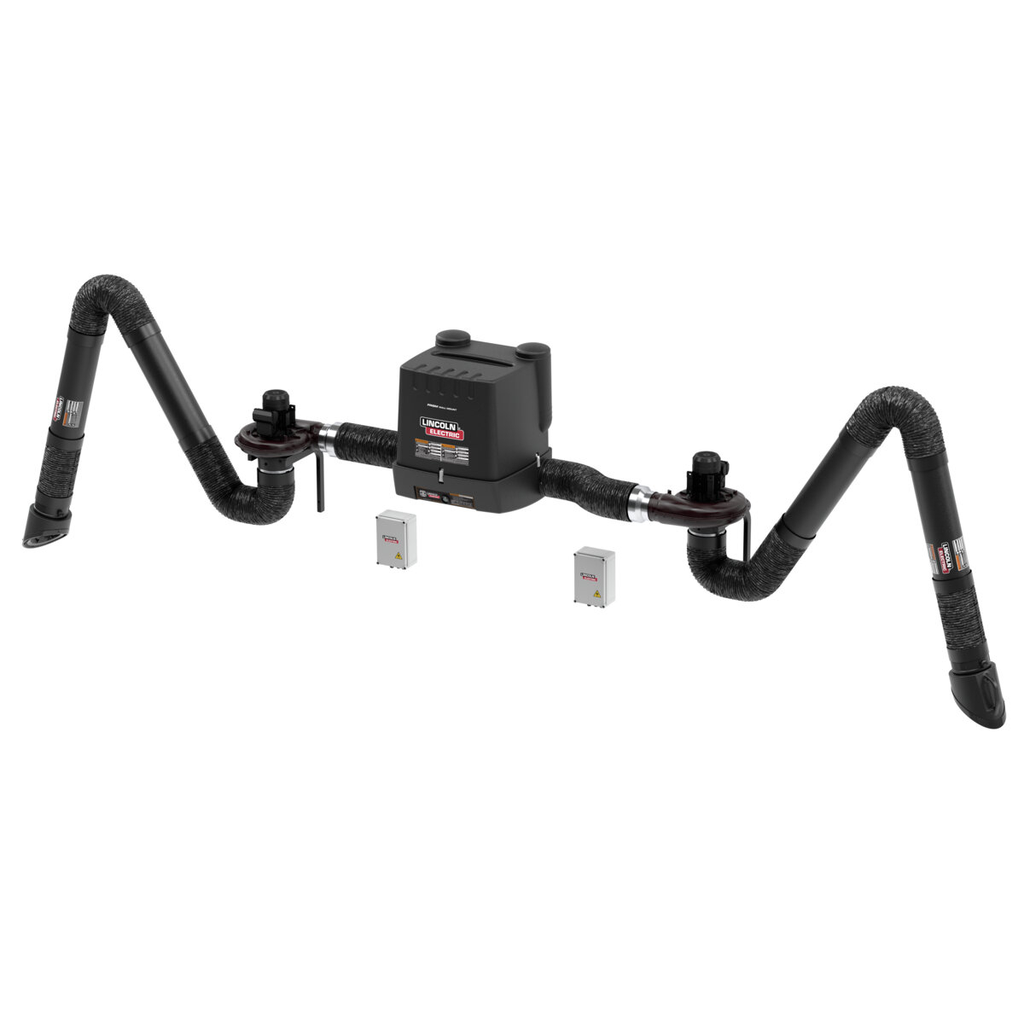

Lincoln Electric, K4261-12, Fume Extraction Unit, Wall Mount; 1200 CFM, MERV 14 Filter, 2 x 10 ft Flexible Arms

FUMES DON’T STAND A CHANCE - The Prism Wall Mount units are stationary, wall-mounted low vacuum systems intended for light to medium duty extraction and filtration of welding fume. Ideal for job shops, welding schools and maintenance departments, the Prism Wall Mount unit is designed for facilities with fixed work stations and limited floor space. The One-Pak packages help simplify the selection process.

Features

• Generous Airflow - Comes with two Prism 2400 Fans (115V, 1 Phase, 60 Hz, 1 HP) that have self-cleaning concave blades and provide an unrestricted airflow of 1,200 CFM in a dual arm configuration
• Spark Arrestor - Functions as a pre-filter for larger-sized particulate
• Disposable MERV 14 Filter - 3D pleated filter structure with 538 ft² (50 m²) capacity
• Dual Arm Configuration - Flexible 10 ft. Arms
• Arc Sensor/ Lamp Kit - Turns the fan on when the arc flash is sensed. Hood-mounted lamp/fan switch allows for easy manual light/fan operation

What's Included?

• (1) K1654-5 Prism Wall Mount Base Unit - Disposable Filter, (2) K1655-8 Flexible 10 ft. Arms, (2) K1669-4 Arc Sensor/Lamp Kits, (2) K1657-1 Wall Mounting Brackets, (2) K1656-9 Prism 2400 1 HP Stationary Fans

• Voltage: 115V
• Phase: 1 Phase
• Frequency: 60 Hz
• Power: 1 HP
• Airflow: 1200 CFM
• Filter Efficiency: MERV 14 Cellulose
• Filter Capacity: 538 ft2
• Arm Length: 10 ft
• Arm Type: Flexible
• Height: 36 in. / 900 mm
• Width: 32 in. / 810 mm
• Depth: 28 in. / 730 mm
• Style: Wall Mount
• Input Voltage Type: Multiple
• High Vac or Low Vac: Low Vac
• Country of Origin: Multi Country
• Warranty Length: 3 Years
