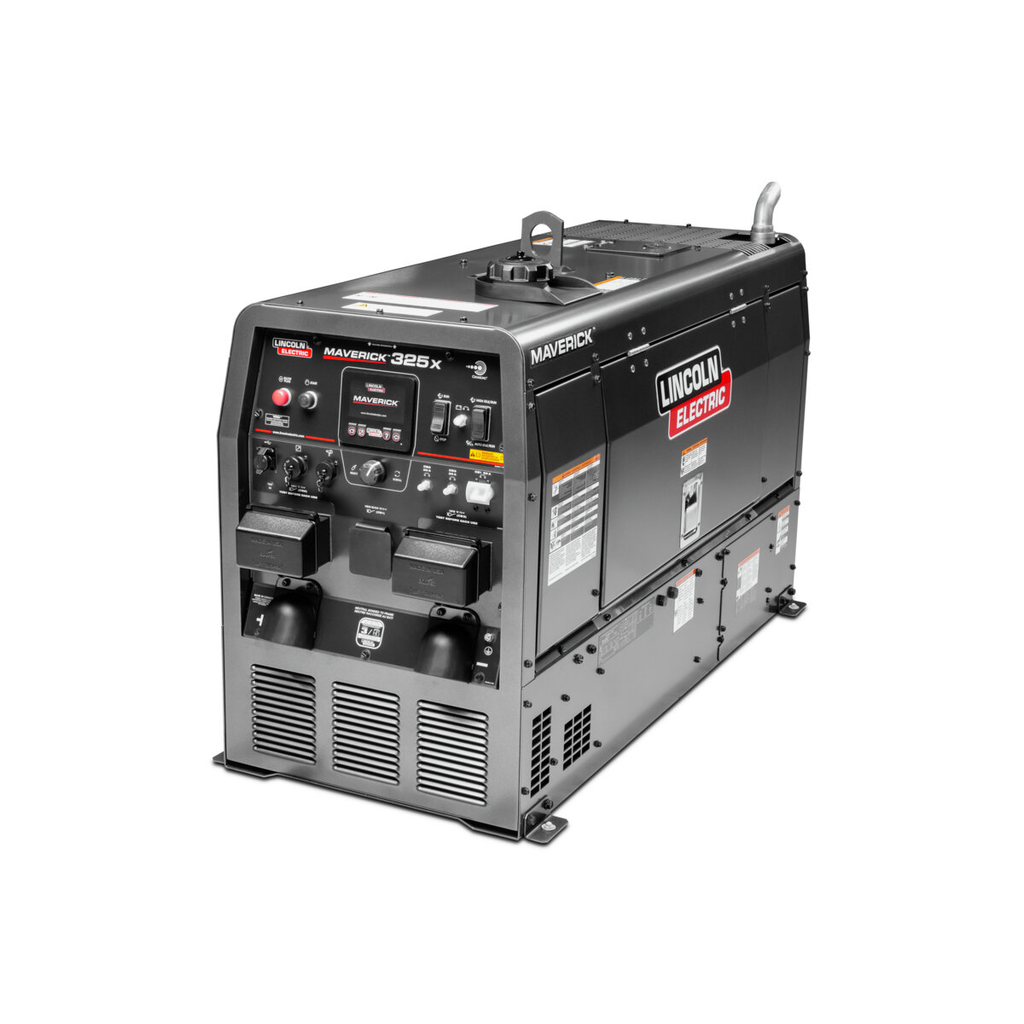

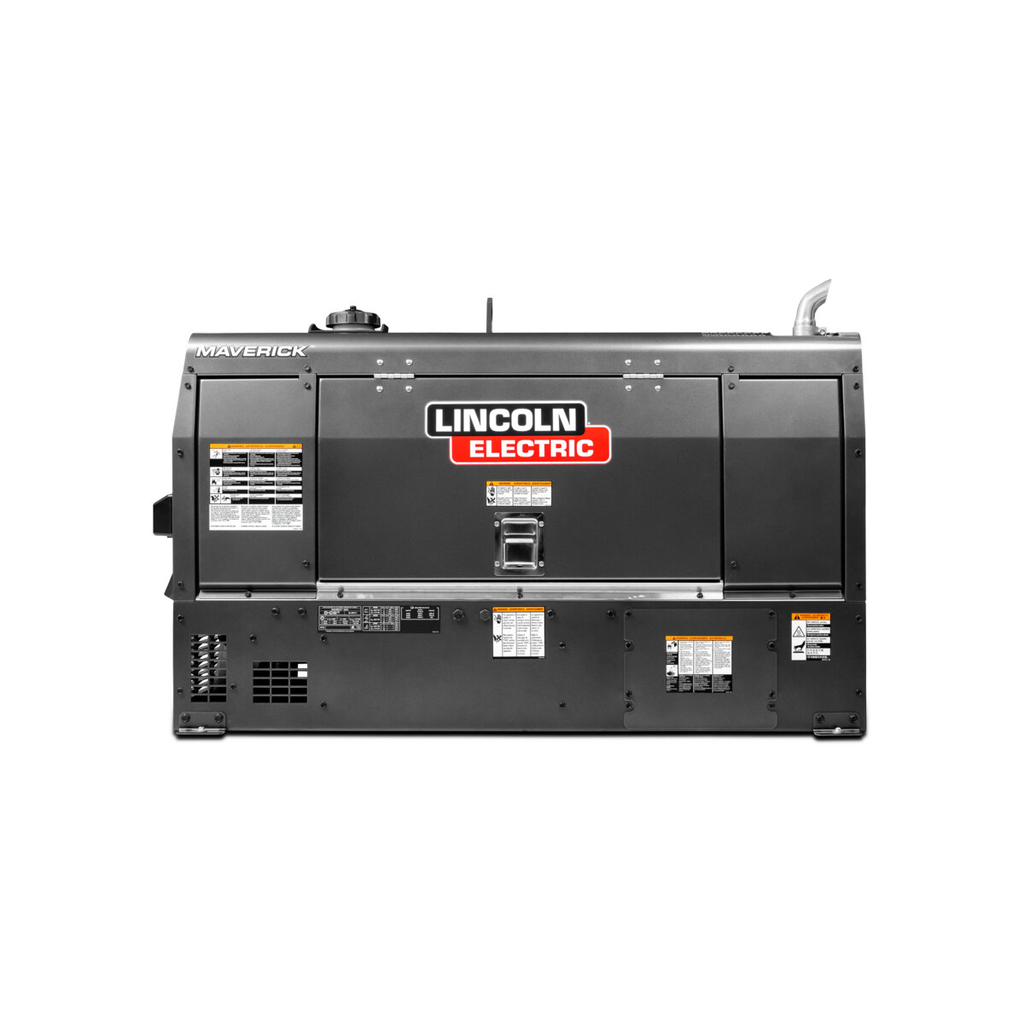

Lincoln Electric, K3581-1-RP3, Engine Driven Welder, 325A Max Output, Diesel, CrossLinc Enabled, Inverter/Chopper

The Maverick® 325X is an advanced engine-driven welder with the perfect combination of size, performance, and innovation. This best-in-class arc welding machine provides substantial power and promotes fuel savings with variable engine RPM and auto start/stop capabilities. In addition, the machine boasts an advanced user interface on a heavy-duty 4.6 in. weatherproof LCD screen. The machine also features CrossLinc® technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality.

Features

• Auto-Stop/Start Technology – Save on fuel, avoid excess idling and reduce engine wear.
• Variable Engine RPM – Automatically adjusts engine speed to reduce fuel consumption and engine noise.

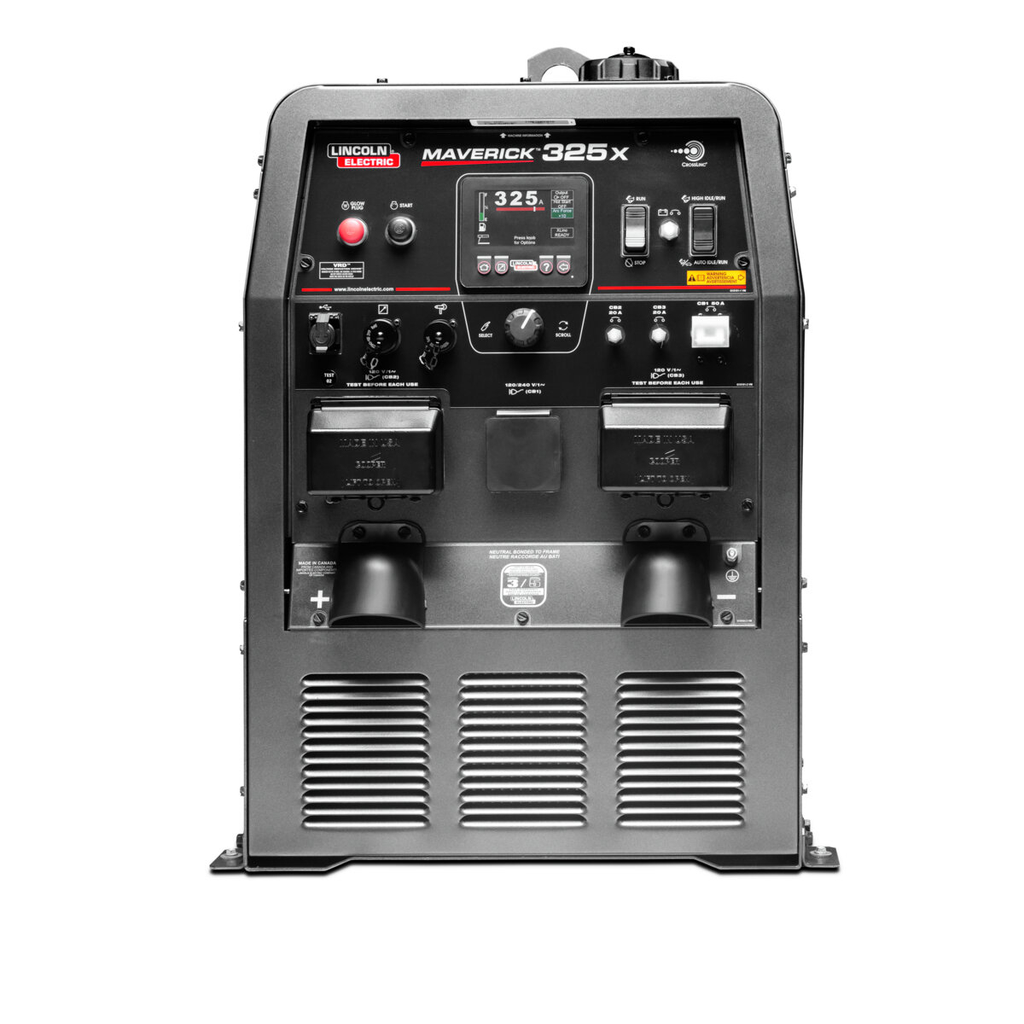

• Greater Machine Control – Durable, 4.6 inch digital display for full machine control - including process setup, maintenance reminders, and PIN authorization.
• Optimized Performance – A multi-process workhorse with specialized stick, wire welding, and direct-connect spool gun capabilities for all your jobsite needs.
• CrossLinc® Enabled – Change welding parameters at the art without an additional control cable - helping to increase productivity, promote safety, and improve weld quality.
• Compact Power – Plenty of jobsite power with 325A of welding output and 10 kW of clean, single-phase power.

What's Included?

• (1) K3581-1 Maverick 325X Engine Drive, (1) K2635-1 Welder Trailer, (1) K2639-1 Fender and Light Kit, (1) 2640-1 Cable Rack for Welder Trailer

• Amperage: 325A
• Power Output: 10,000 Watts Continuous (10 kW)
• Open Circuit Voltage: 80 Peak OCV at 3600 RPM
• Max Rating: 400A / 29V / 60% @ 104 F (40 C)
• IEC Rating: 325A / 33V / 100% @ 104 F (40 C)
• Auxiliary Output Voltage: 120/240 V
• Phase: Single-phase
• Engine RPM: Idle 2500 / High 3600 (Variable)
• Engine Type: 3 Cylinder Naturally Aspirated Water Cooled Diesel Engine (Kubota D902)
• Engine Horsepower: 24.8 hp (18.5 kW)
• Fuel Type: Diesel
• Fuel Tank Size: 11.5 US gal. (50 L)
• Fuel Consumption Low Idle: 0.29 gal/hr (1.12 L/hr)
• Fuel Consumption IEC Rating: 1.21 gal/hr (4.58 L/hr)
• Oil Capacity: 3.7 L (3.9 qts.)
• Coolant Capacity: 3.3 L (0.9 US gal.)
• Weight: 1178 lb (534 kg)
• Welding Technology: Inverter/Chopper
• Output Mode: DC; CC/CV
• Output Polarity: DC
• Welding Controls: Chopper
• Machines Processes: Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
• Weld Modes: Downhill Pipe, Touch Start TIG, CC-Stick, CV-Wire, Arc Gouging, Spool Gun
• Display Size: 4.6 in
• Display Type: Weatherproof LCD
• User Interface Type: Display Screen
• Machines Communication Technology: CrossLinc
• Remote Control Options: CrossLinc; Wired
• Equipment Technologies: CrossLinc; Auto-Stop/Start; Digital UI; Direct-Connect Spool Gun
• Technology: Auto Start/Stop, CrossLinc
• Engine Starting: Manual Glow Plugs; Auto-Stop/Start
• Engine Cooling: Water
• Engine Brand & Model: Kubota D902
• Engine Block Size & Displacement: 54.8 cu. in (.90 L); Bore x Stroke - 2.83 in x 2.90 in (72 mm x 73.6 mm)
• Engine Cylinders: 3
• Sound Rating @ 23 ft (7m): Idle: 73.5 dB, Max Load: 79.6 dB
• Spark Arrestor: Optional
• Arclink Connector: No
• Jumper Terminals: No
• Input Voltage Type: Engine
• Input Icon: D
• Output Icon: DC; CC/CV
• Tap or Continuous Control: Continuous
• VRD: Yes
• Receptacle Types: NEMA 5-20R; NEMA 14-50R
• Compliance: US EPA Tier 4 Final; IP23; Prop 65 Compliant
• Country of Origin: Canada
• Case Type: Painted
