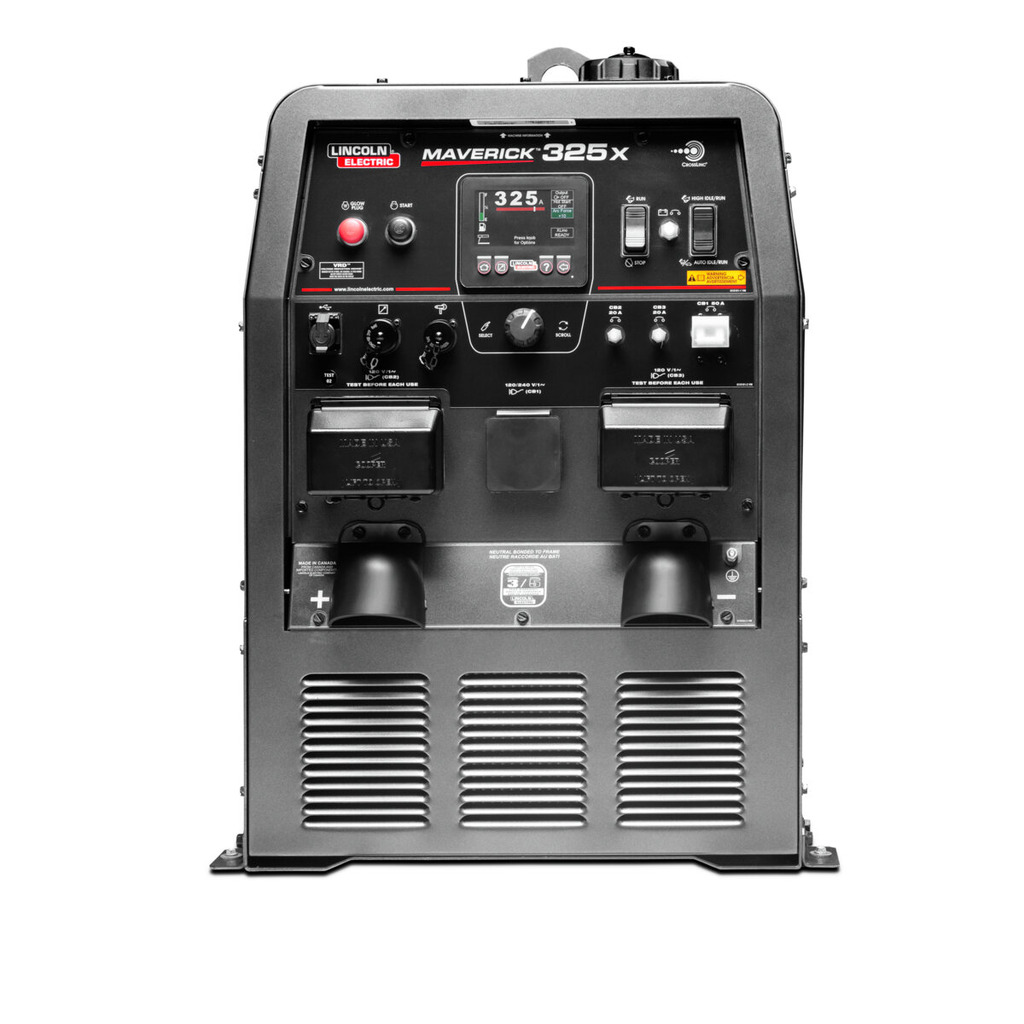

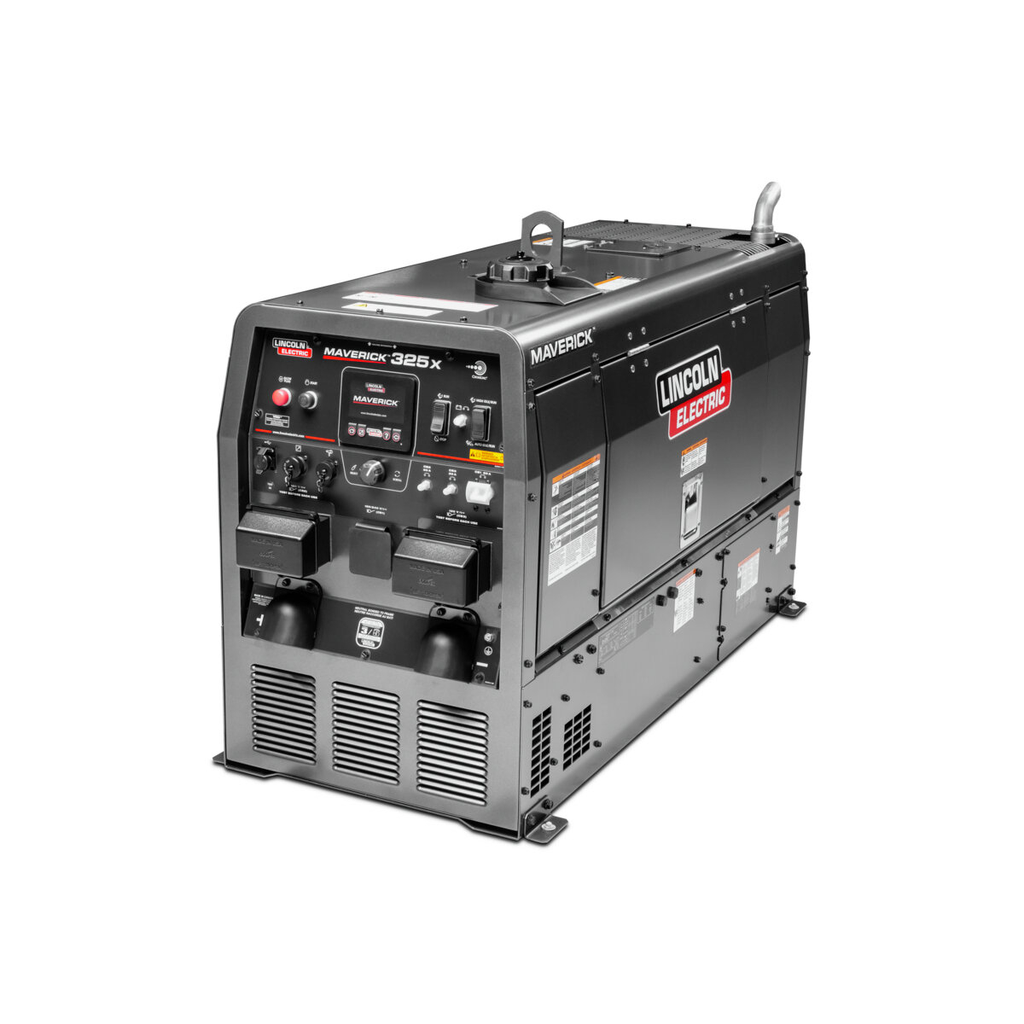

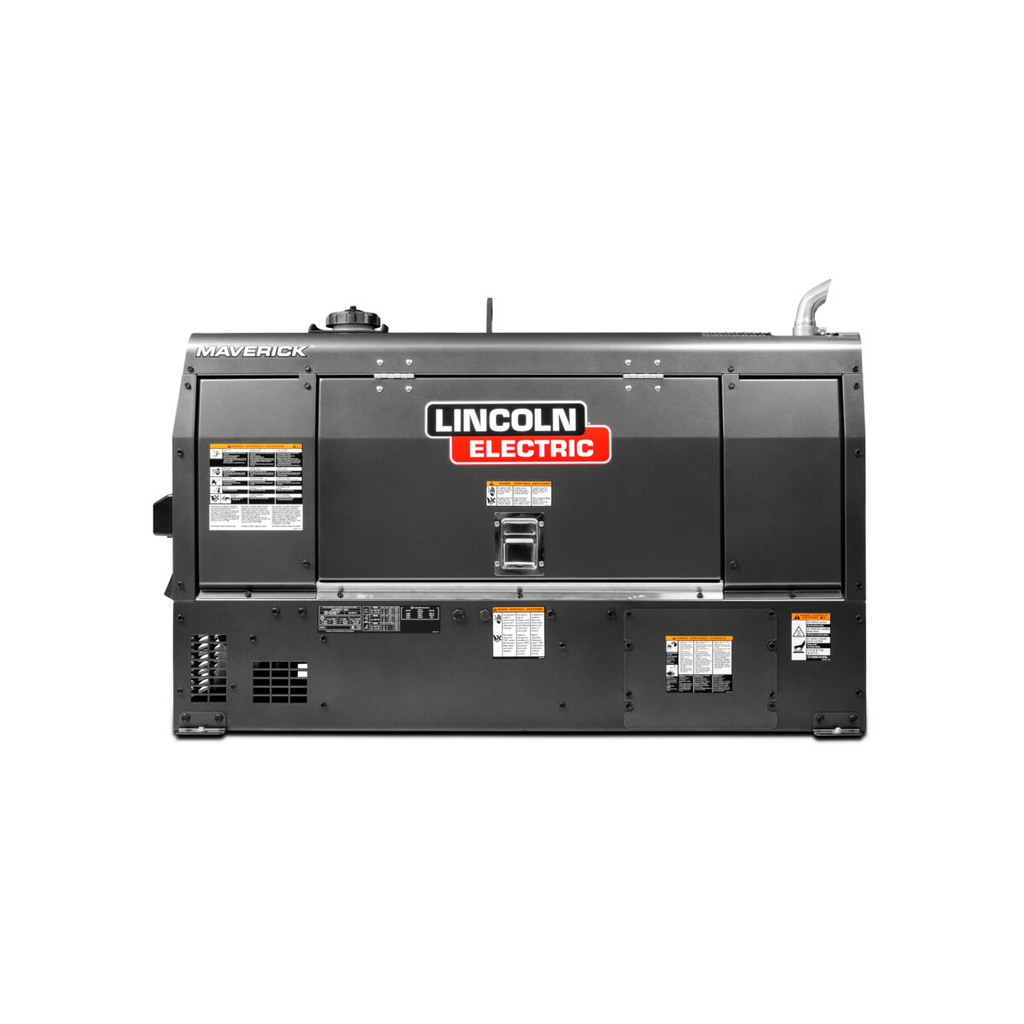

Lincoln Electric, K3581-1-RP1, Engine-Driven Welder, 325A Output, Diesel, CrossLinc Enabled, 4.6 in LCD Screen

The Maverick® 325X is an advanced engine-driven welder with the perfect combination of size, performance, and innovation. This best-in-class arc welding machine provides substantial power and promotes fuel savings with variable engine RPM and auto start/stop capabilities. In addition, the machine boasts an advanced user interface on a heavy-duty 4.6 in. weatherproof LCD screen. The machine also features CrossLinc® technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality.

Features

• Optimized Performance – A multi-process workhorse with specialized stick, wire welding, and direct-connect spool gun capabilities for all your jobsite needs.
• Auto-Stop/Start Technology – Save on fuel, avoid excess idling and reduce engine wear.
• CrossLinc® Enabled – Change welding parameters at the art without an additional control cable - helping to increase productivity, promote safety, and improve weld quality.
• Greater Machine Control – Durable, 4.6 inch digital display for full machine control - including process setup, maintenance reminders, and PIN authorization.
• Compact Power – Plenty of jobsite power with 325A of welding output and 10 kW of clean, single-phase power.
• Variable Engine RPM – Automatically adjusts engine speed to reduce fuel consumption and engine noise.

What's Included?

• (1) K3581-1 Maverick 325X Engine Drive, (1) K2635-1 Welder Trailer, (1) K2639-1 Fender and Light Kit, (1) 2640-1 Cable Rack for Welder Trailer, (1) K2483-2 Weld Cable, (1) K2484-2 Weld Cable, (1) K909-7 Electrode Holder, (1) K910-1 Work Clamp, (2) K2487-1 Insulated Connector, (2) K2485-2 Weld Cable

• Welding Output: 325A
• Power Output: 10,000 Watts Continuous (10 kW)
• Open Circuit Voltage: 80 Peak OCV at 3600 RPM
• Engine Horsepower: 24.8 hp (18.5 kW)
• Engine Type: Naturally Aspirated
• Engine Brand & Model: Kubota D902
• Engine Block Size & Displacement: 54.8 cu. in (.90 L); Bore x Stroke - 2.83 in x 2.90 in (72 mm x 73.6 mm)
• Engine Cylinders: 3
• Low Idle Operating Speed: 2500 RPM
• High Idle Operating Speed @ Rated Output: 3600 RPM
• Fuel Type: Diesel
• Fuel Tank Size: 11.5 US gal. (50 L)
• Fuel Consumption (Low Idle): 0.29 gal/hr (1.12 L/hr)
• Fuel Consumption (IEC Rating): 1.21 gal/hr (4.58 L/hr)
• Cooling: Water
• Oil Capacity: 3.7 L (3.9 qts.)
• Input Voltage Type: Engine
• Output Polarity: DC
• Output Mode: CC/CV
• Voltage: 120/240V
• Auxiliary Output Frequency: 60 Hz
• Auxiliary Output Type: Single Phase (1)
• Receptacle Types: NEMA 5-20R; NEMA 14-50R
• Machines Processes: Stick (SMAW); Gouging (CAC-A); TIG (GTAW); MIG (GMAW); Flux-Cored Self-Shielded (FCAW-S); Flux-Cored Gas-Shielded (FCAW-G)
• Weld Modes: Downhill Pipe; Touch Start TIG; CC-Stick; CV-Wire; Arc Gouging; Spool Gun
• Welding Controls: Chopper
• Welding Technology: Inverter/Chopper
• VRD: Yes
• IEC Rating: 325A / 33V / 100% @ 104 F (40 C)
• Max Rating: 400A / 29V / 60% @ 104 F (40 C)
• Rated Gouging Carbon Diameter: 5/16 in (8.0 mm)
• Tap or Continuous Control: Continuous
• Weight: 1241 lb (563 kg)
• Display Size: 4.6 in
• User Interface Type: Display Screen
• Remote Control Options: CrossLinc; Wired
• Machines Communication Technology: CrossLinc
• Equipment Technologies: CrossLinc; Auto-Stop/Start; Digital UI; Direct-Connect Spool Gun
• Engine Controller: ECU
• Engine Starting: Manual Glow Plugs; Auto-Stop/Start
• Spark Arrestor: Optional
• Case Type: Painted
• Jumper Terminals: No
• Arclink Connector: No
• Ingress Protection Rating: IP23
• Emissions Rating: US EPA Tier 4 Final
• Country of Origin: Canada
• Warranty Length: 3 Years Parts and Labor; Engine warranted separately
