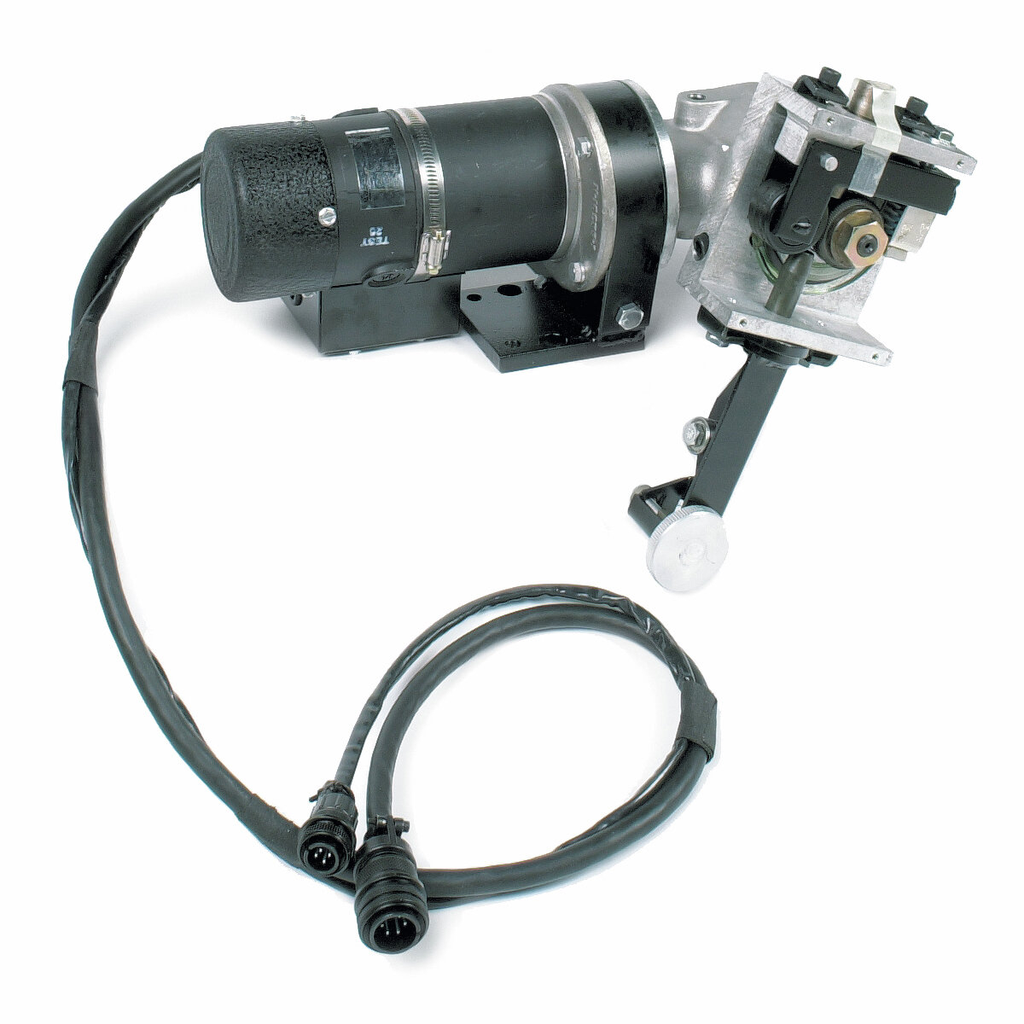

Lincoln Electric, K347A, Wire Drive, 142:1 Gear Ratio, 3/32-7/32 in Wire Diameter, 290 IPM

Wire Drive for NA-5SF automatic wire feeders. Without high frequency insulation. For 3/32 to 7/32 in (2.4-5.6 mm) solid electrode wires. 142:1 Gear ratio, 290 IPM maximum wire feed speed.

Features

• Wire Drive for NA-5SF automatic wire feeders.
• For 3/32 to 7/32 in (2.4-5.6 mm) solid electrode wires.
• 142:1 Gear ratio, 290 IPM maximum wire feed speed.

What's Included?

• K347 includes wire drive, wire straightener

• Gear Ratio: 142:1
• Maximum Wire Feed Speed: 290 ipm
• Wire Size Range: 3/32-7/32 in
• Input Voltage: 115 VAC
• Input Hertz: 50/60 Hz
• Number of Driven Rolls: 1 roll
• Feeder Type: Automatic
• Feedhead Configuration: Wire Drive Only
• Wire Configuration: Single
• Maximum Wire Thickness: 7/32 in
• Minimum Wire Thickness: 3/32 in
• Weight: 38 lb
• Product Weight: 17.24 kg
• Max Spool Diameter: Drum
• Power Source to Feeder Communication Connector Type: None
• Communication Technology: Analog
• Machines Processes: Submerged Arc (SAW)
• Warranty Length: 3 Years
• Country of Origin: United States
