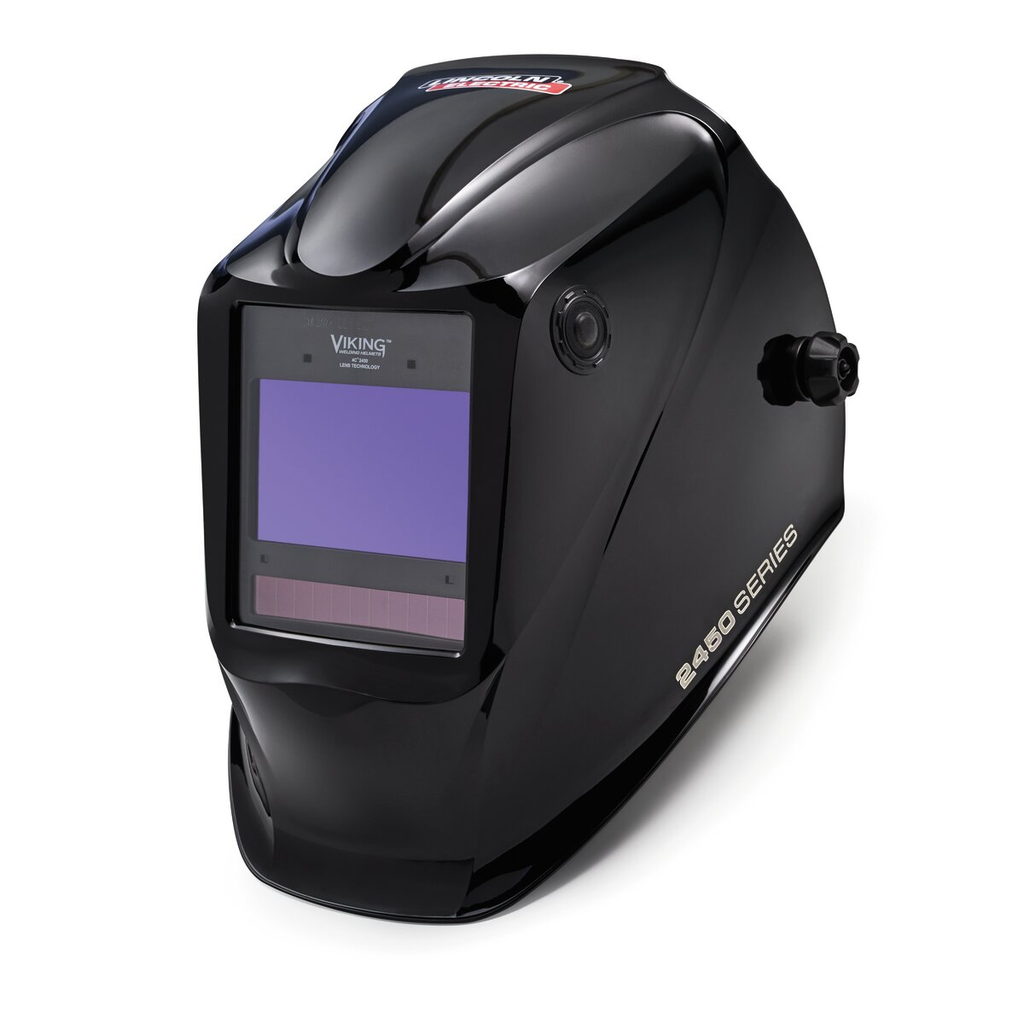

Lincoln Electric, K3028-4, Welding Helmet, VIKING 2450 Series, Auto-Darkening, 5-13 Shade, 9.3 sq. in Viewing Area

The Lincoln Electric VIKING 2450, our lightweight premium helmet series, offers an excellent blend of industry leading optics, all-day comfort & versatility. This helmet includes our exclusive 4C lens technology and 1/1/1/1 optical clarity for industry leading optics and provides an expanded variable 5-13 shade range, low profile external grind control, and large 9.3 sq. in. viewing area. The innovative X6 Headgear™ distributes weight, reduces pressure and optimizes balance.

Features

• Welding helmet is hard hat and cheater lens compatible and provides enhanced outdoor performance.
• 9.3 sq. inch (3.82 x 2.44 in.) wide viewing area
• Replaceable CR2450 batteries ensure increased battery life.
• External low profile grind control that makes switching between weld and grind modes easy, which increases productivity, prevents accidental activation and provides enhanced application versatility.
• 4C Lens Technology is Lincoln Electric's proprietary liquid crystal display (LCD) that enhances the visible color spectrum of the display, which broadens the color range & hues in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.
• 1/1/1/1 Optical Clarity that eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.
• Variable 5-13 shade range and low profile, external grind control provides an expanded versatility and consistent indoor & outdoor performance.
• X6 Headgear features an adjustable and firm-fitting top head supports, rotatable front headband, strategically positioned rear headband, an orientation adjustment pin, and easy to use forward and backward adjustments to distribute weight, reduce pressure and optimize balance.

What's Included?

• (1) Welding Helmet, (1) Helmet Bag, (1) Bandana, (5) KP2898-1 Outside Cover Lenses, (2) KP3044-1 Inside Cover Lenses, (1) Decal Sheet

• Lens Shade Rating: 5 - 13 variable
• TIG Rating: DC 2 Amp; AC 2 Amp
• ADF Viewing Area: 3.82 x 2.44 in (97 x 62 mm)
• Viewing Area: 9.3 sq. in (3.82 x 2.44 in)
• Cartridge Size: 5.25 x 4.50 in (133 x 114 mm)
• Weight: 21 oz (595 g)
• Headgear Type: X6 Headgear
• Headgear: X6 adjustable, firm-fitting
• External Controls: Grind Button
• Grind Mode: Yes
• Grind Control: External low profile
• Power Supply: 2 CR 2450 Batteries with Solar Assist
• Battery Type: Replaceable CR2450
• Communication: None
• Control Type: Analog
• Switching Speed: 1/25,000 sec
• Light to Dark Switch Time: 1/25,000 s
• Light Sensitivity Control: Continuous
• Delay Control Dark to Light: 0.1 - 1.0 sec
• Arc Sensors: 4
• Number of Sensors: 4
• Lens Technology: 4C LCD
• Optical Clarity: 1/1/1/1
• Shade Range: 5 - 13 variable
• Grind Mode Shade: 3.5
• Quick Adjust Ratchet: Yes
• Lens Compatibility: Hard hat, cheater lenses
• Cheater Lens Compatible: Yes
• Cheater Lenses: KP3046-XXX Magnifying Cheater Lenses - 1.00 MAG - 2.50 MAG
• Flip Up Lens: No
• Magnifying Lens Holder: Yes
• Shell Type: Black
• Manufacturer Color/Finish: Black
• Replacement Shells: KP4560-1 Glossy Black 2450 Replacement Shell; KP4561-1 Matte Black 2450 Replacement Shell
• Compliance: ANSI Z87.1
• Country of Origin: China
• Warranty Length: 3 Years
• Product Series: VIKING 2450 Series
• Product Types: Auto-Darkening
• Cut Mode: Yes
• Hard Hat Capable: Yes
• Hard Hat Adapters: KP3047-1 Hard Hat Adapter - Halo Style; KP3486-1 Hard Hat Adapter - Slotted Style
• Sweatband & Headgear: KP2930-1 Super Soft Knit Cotton Sweatband; KP4541-1 Soft Cotton Back Pad for X6 Headgear; KP4470-1 X6 Headgear; K3908-1 Pivot Headgear; K4100-1 Traditional Headgear
• Temperature Range Operating: -10 C to +55 C (14 F to 131 F)
• Temperature Range Storage: -20 C to +70 C (-4 F to 158 F)
