Lincoln Electric, ED037830, MIG Wire, 0.035 in; 0.9 mm, 900 lb Accu-Pak Box, GMAW, ISO 14341-A G 42 3 M20 Z

SuperArc® XLS is a MIG wire designed to minimize post-weld clean up by reducing silicate island formation and spatter generation.

Features

• Optimized for use with Rapid X® LS mode to lower silicate island formation and spatter generation
• Reduced silicates for improved paint adhesion and increased corrosion resistance
• Microguard® Ultra surface treatment for consistent, stable arc performance with little to no weld spatter
• Minimize surface silicates for exceptionally clean weld surface

What's Included?

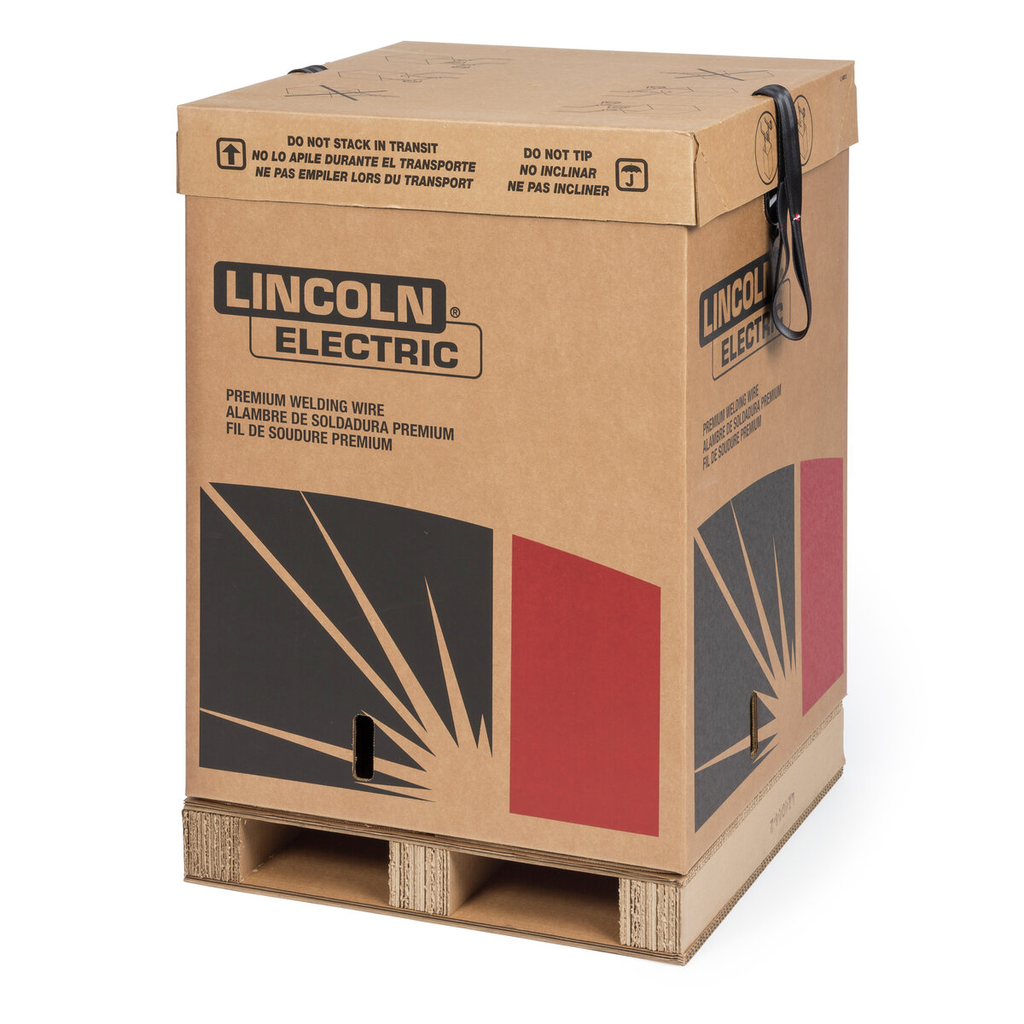

• (1) 900 lb Accu-Pak® Box

• Diameter: 0.035 in (0.9 mm)
• Welding Process: GMAW
• Material: MIG (GMAW) Wire, Mild Steel, Copper Coated
• ISO Standard: ISO 14341-A G42 3 M20 Z
• Shielding Gas: 90% Argon / 10% CO2, 80% Argon / 20% CO2
• Shielding Gas Flow Rate: 40-50 CFH
• Welding Positions: Flat, Horizontal
• Yield Strength: 420 MPa (60.9 ksi) min
• Tensile Strength: 500-640 MPa (72.5-92.8 ksi)
• Elongation: 20%
• Charpy V-Notch Impact: 47 ft lbf (34.7 J) at -30 C (-20 F)
• AWS Classification: ER70S-9
• Country of Origin: United States
• Warranty Length: 1 Year
