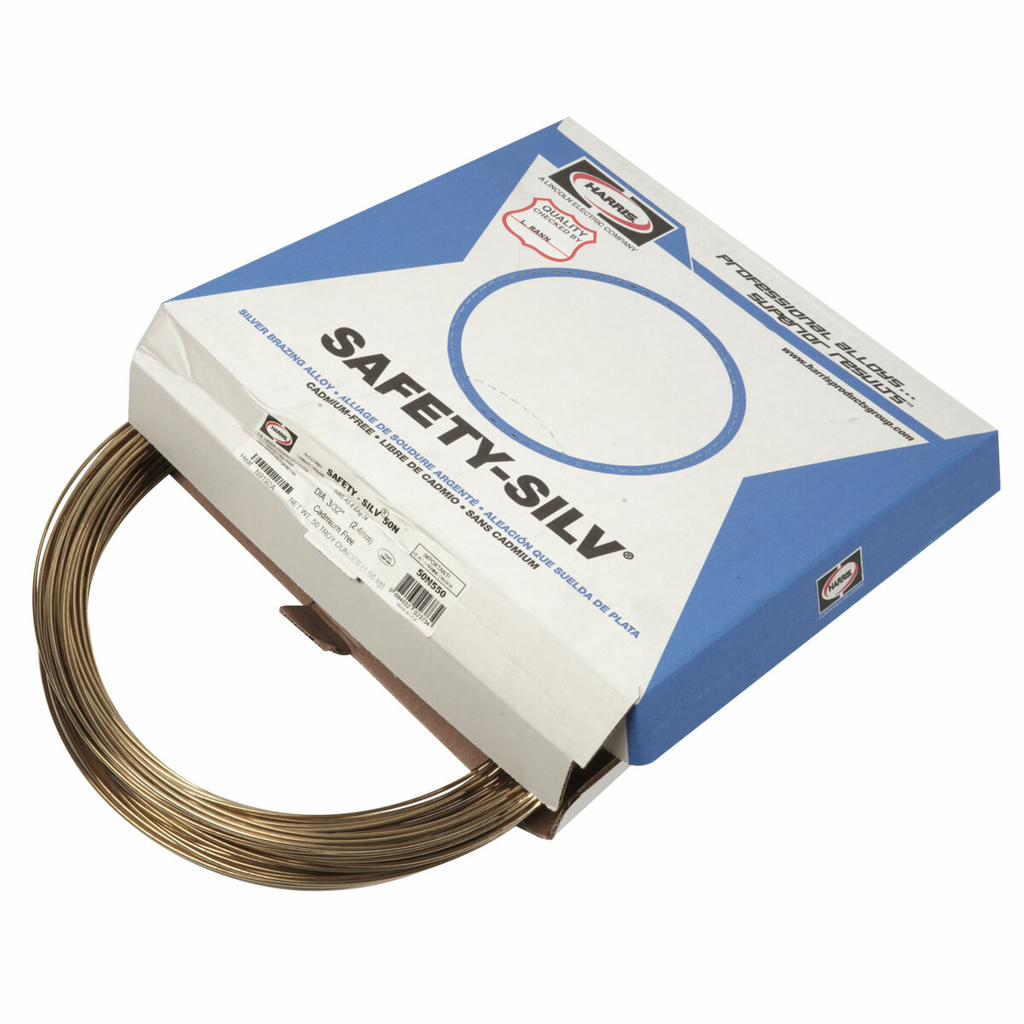

Harris Products Group, 50N318L, Silver Brazing Alloy, 50% Silver, Cadmium-Free, Low Melting Point, Improved Corrosion Resistance

Safety-Silv® 50N is a 50% silver brazing filler metal engineered for brazing copper, brass, steel, nickel filler metals, and stainless steel. It is especially helpful where low brazing temperature must be maintained. This filler metal exhibits improved corrosion resistance on stainless steel compared to other silver braze filler metal deposits. It is frequently used to braze tungsten carbide to steel and tool steel for cutting tips, drill bits, and saw blades. The 2% nickel addition improves wetting and strength. Conforms to the EU Reach & RoHS directive.

Features

• Cadmium-free brazing alloy is good replacement for cadmium-bearing alloys
• Frequently used to braze tungsten carbide to steel and tool steel for cutting tips, drill bits, and saw blades
• Low melting range of 85 degrees F (29 degrees C) provides good flow
• The 2% nickel addition improves wetting and strength
• Exhibits improved corrosion resistance on stainless steel compared to other silver braze alloy deposits
• Engineered for brazing copper, brass, steel, nickel alloys, and stainless steel
• Complies with the EU Reach & RoHS directive

• Weight: 0.08 lbs
• Silver Content: 50%
• Nickel Content: 2%
• Melting Range: 13056F - 15006F (7076C - 8166C)
• Solidus Temperature: 12206F (6606C)
• Liquidus Temperature: 13056F (7076C)
• Electrical Conductivity: 15.00% IACS
• Density: 4.89 Troy oz/cu.in.
• Material Compatibility: Copper, Brass, Steel, Nickel Alloys, Stainless Steel, Tungsten Carbide
• Corrosion Resistance: Improved on stainless steel
• Compliance: EU Reach, RoHS, ANSI/AWS A5.8, ASME SFA 5.8, Class BAg-24, AMS 4788, ISO 17672 Ag 450
• Cadmium Free: Yes
