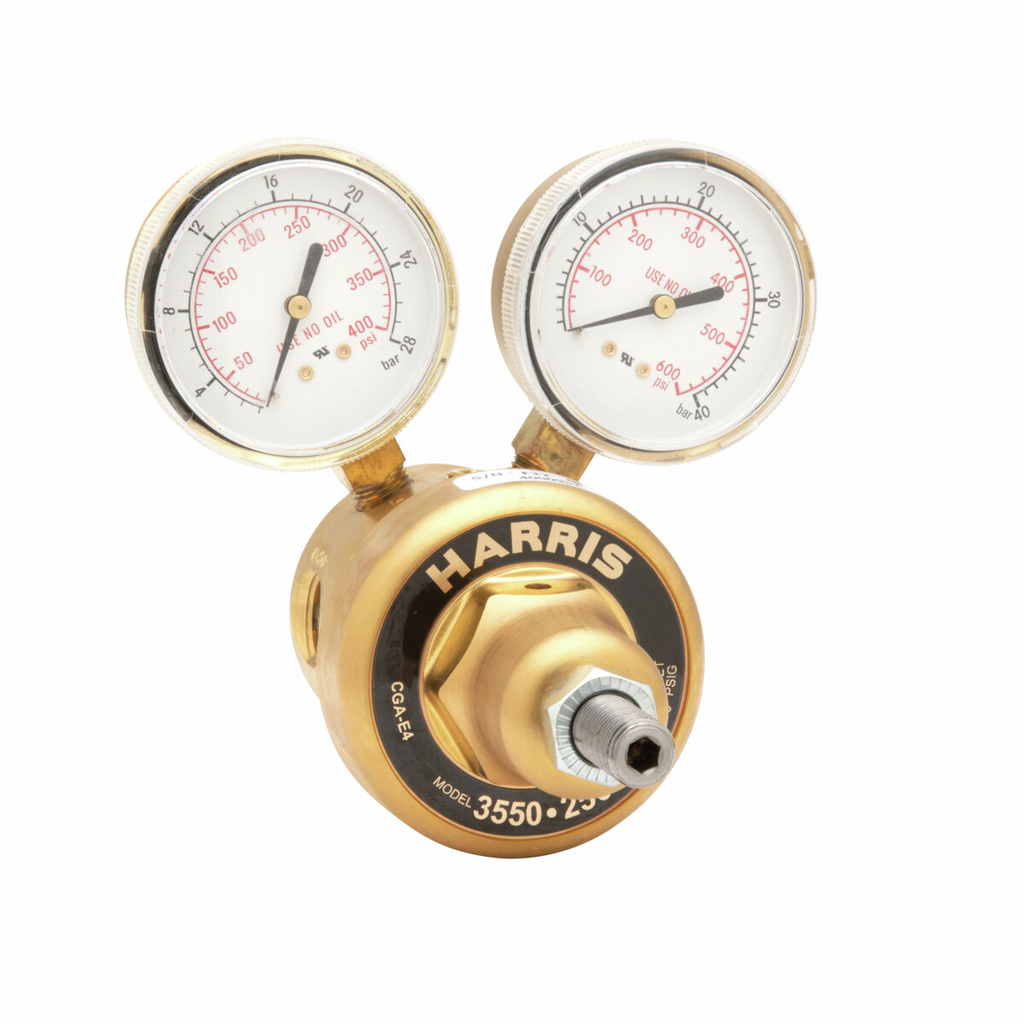

Harris Products Group, 4000957, High-Purity Brass Regulator, 250 PSIG Outlet Pressure; 500 PSIG Inlet Pressure; 1/2 in NPT

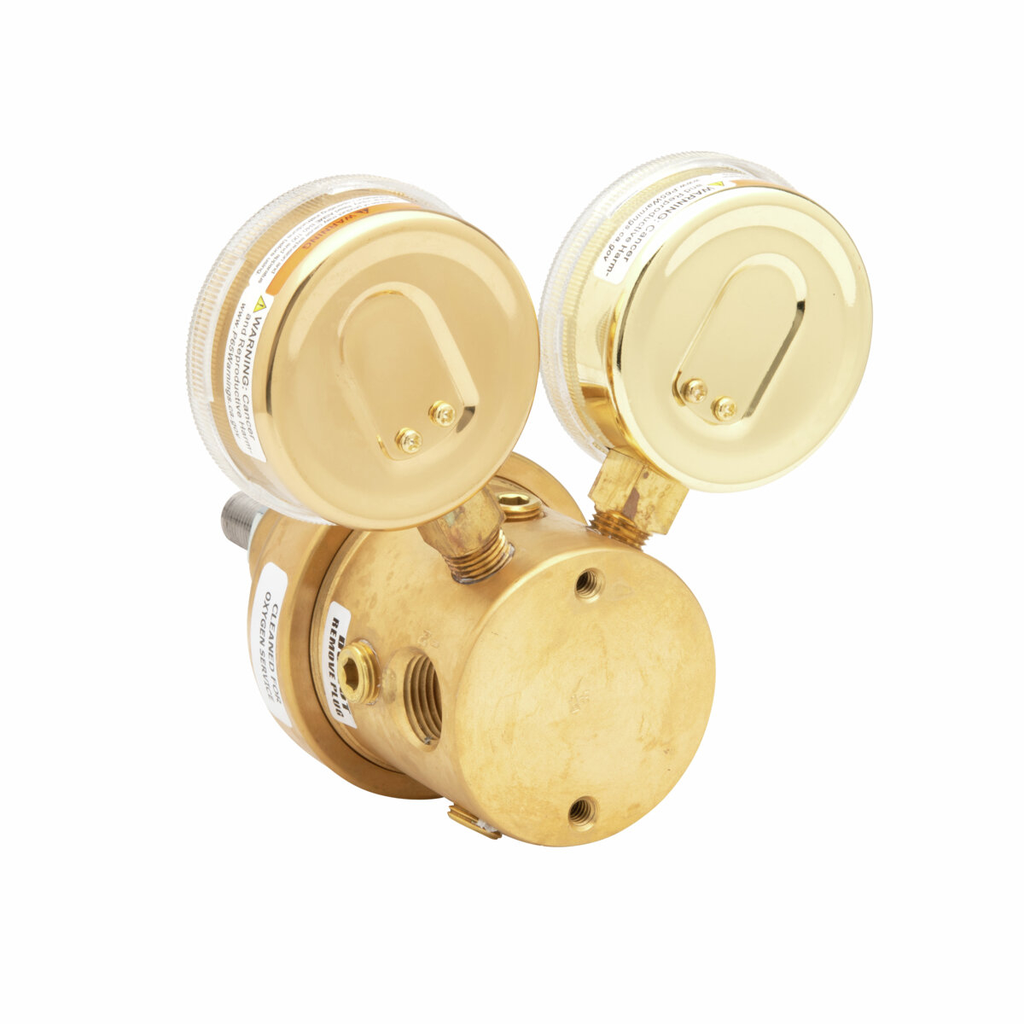

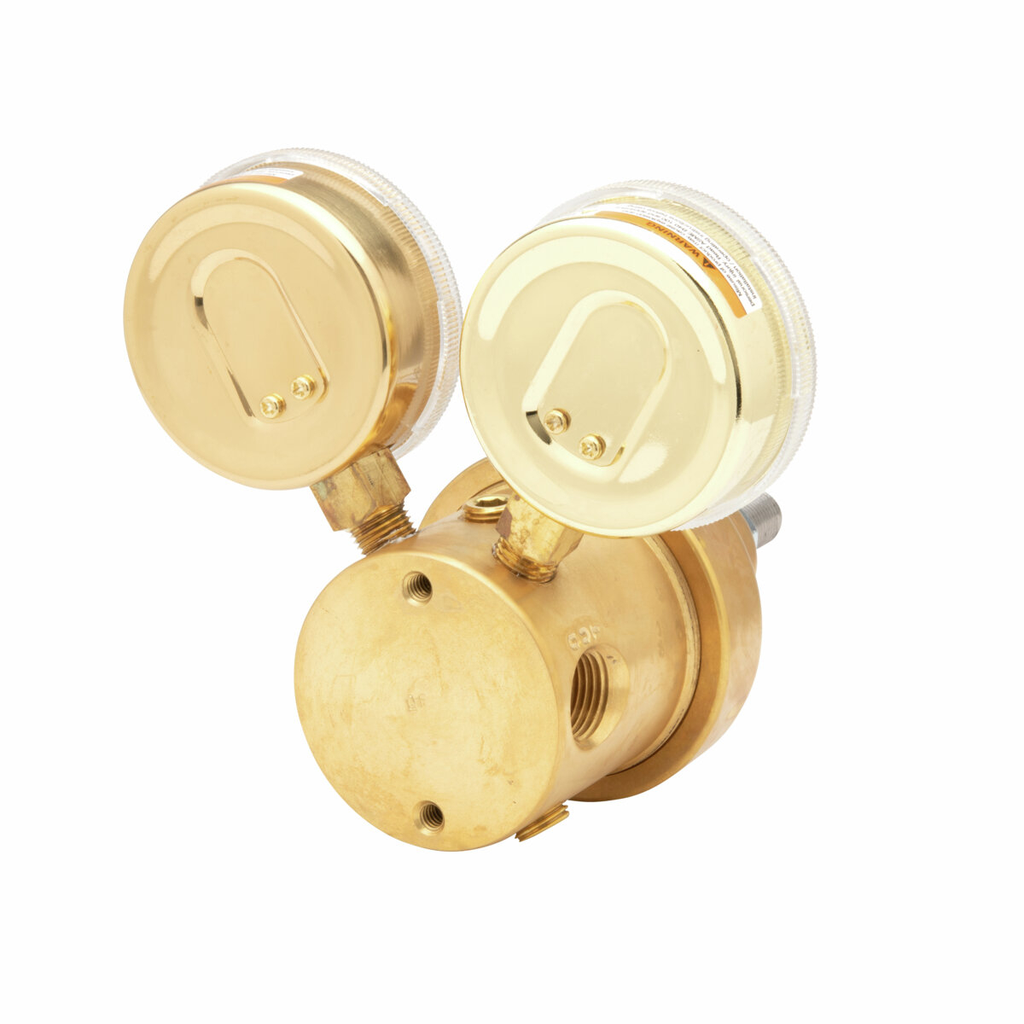

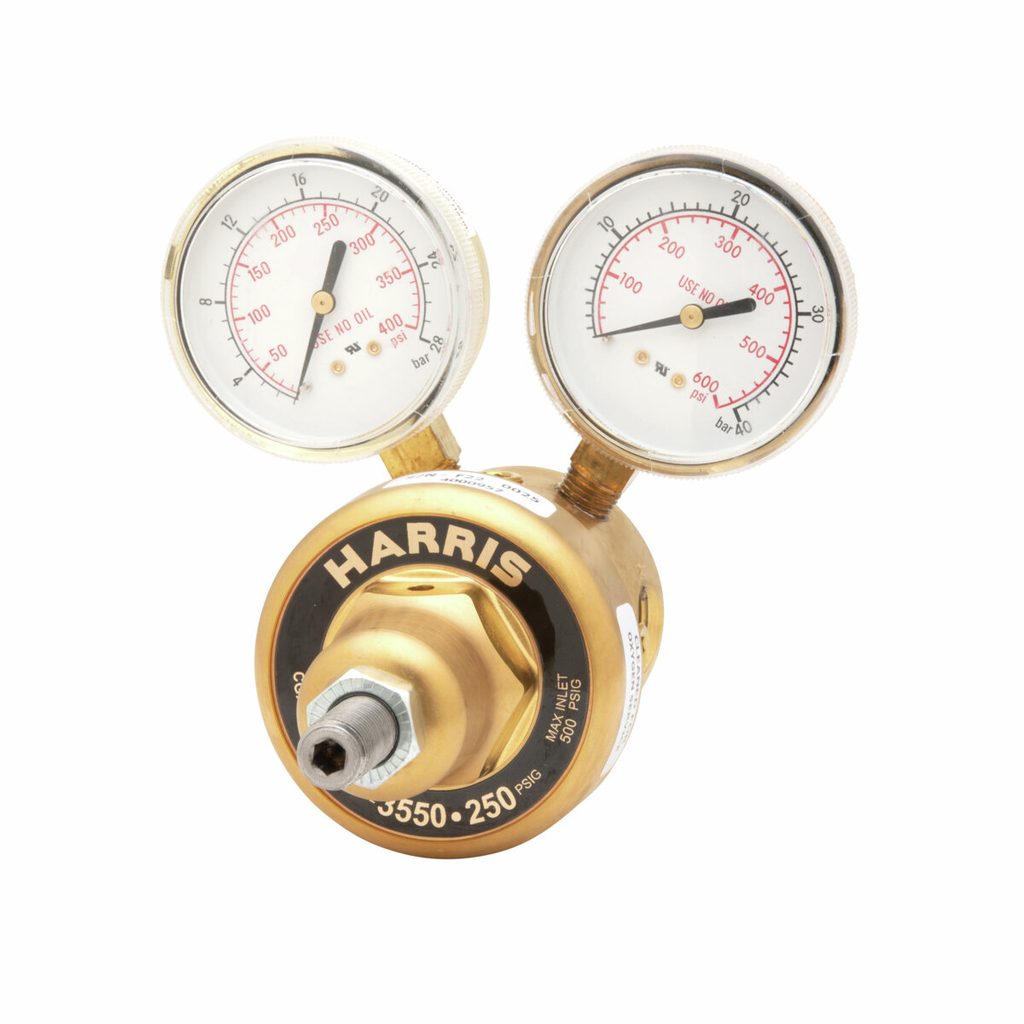

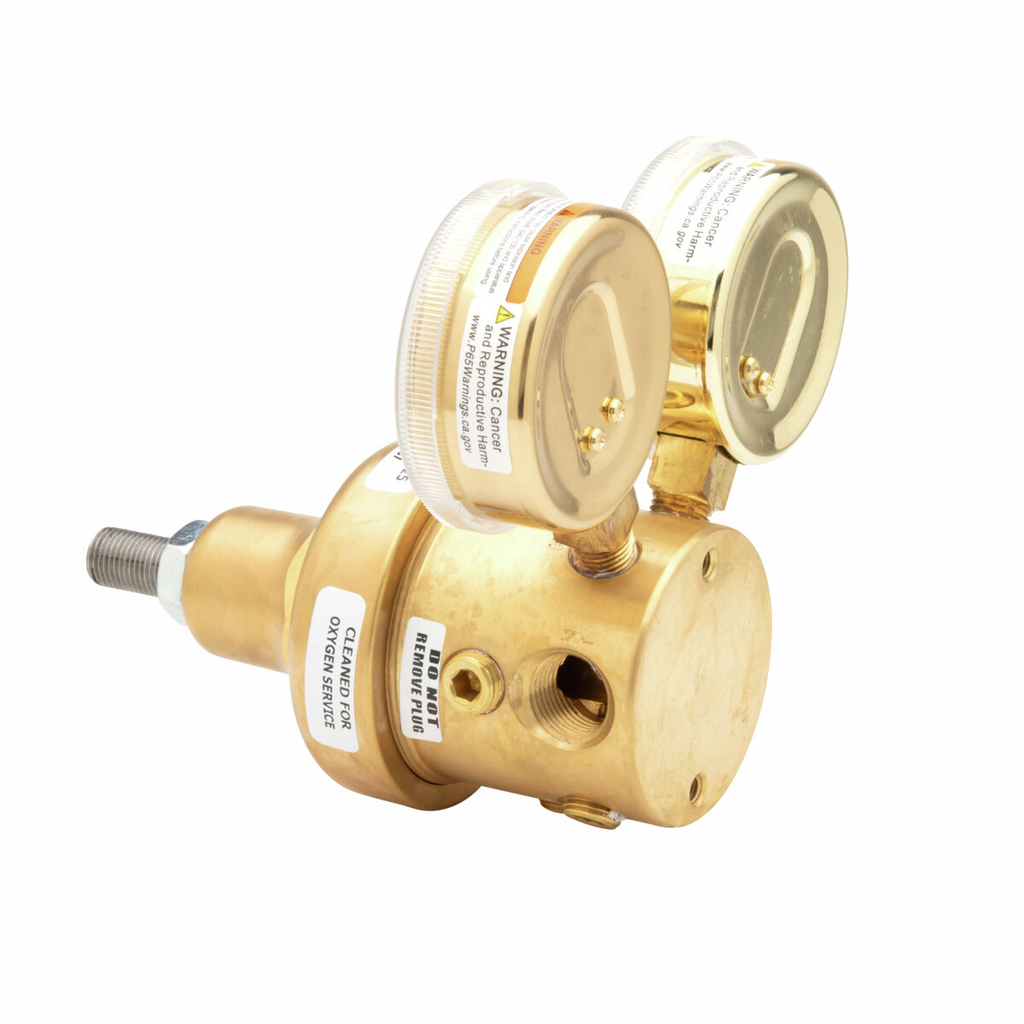

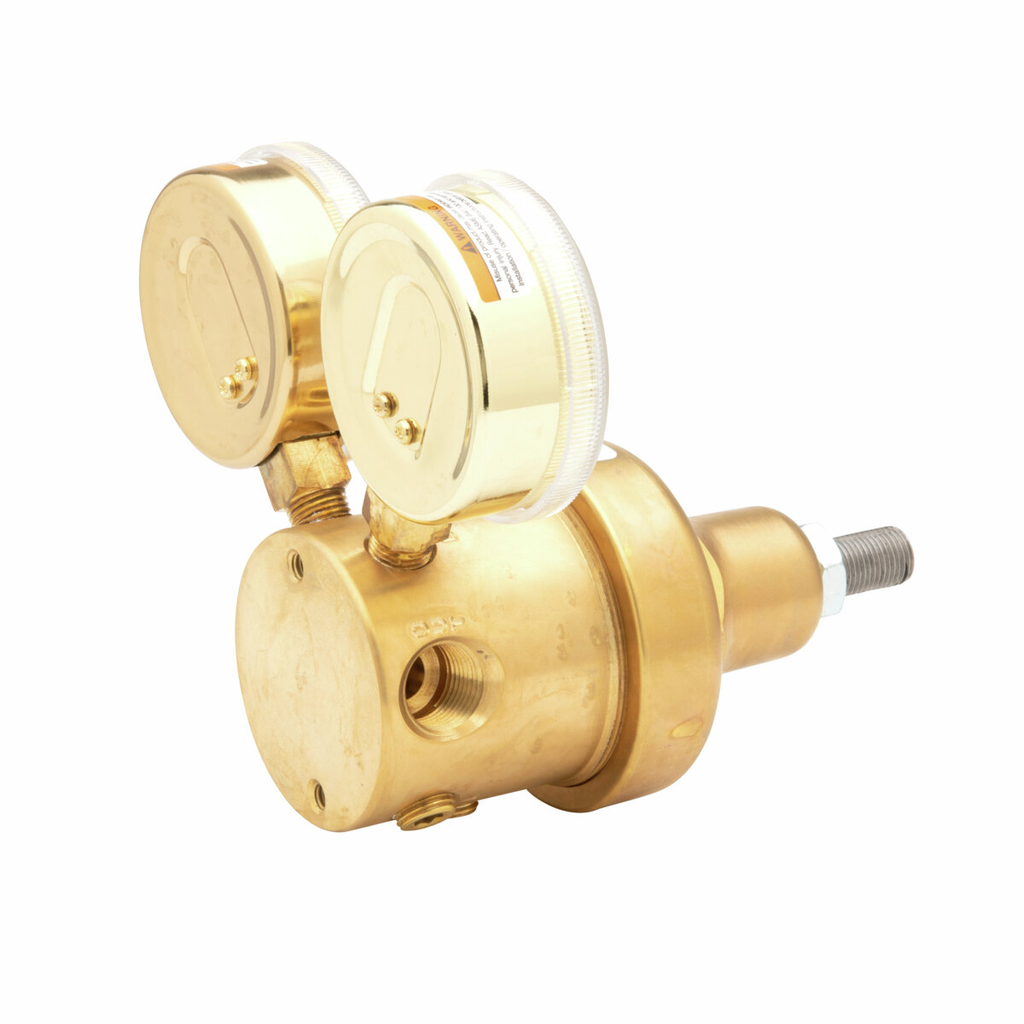

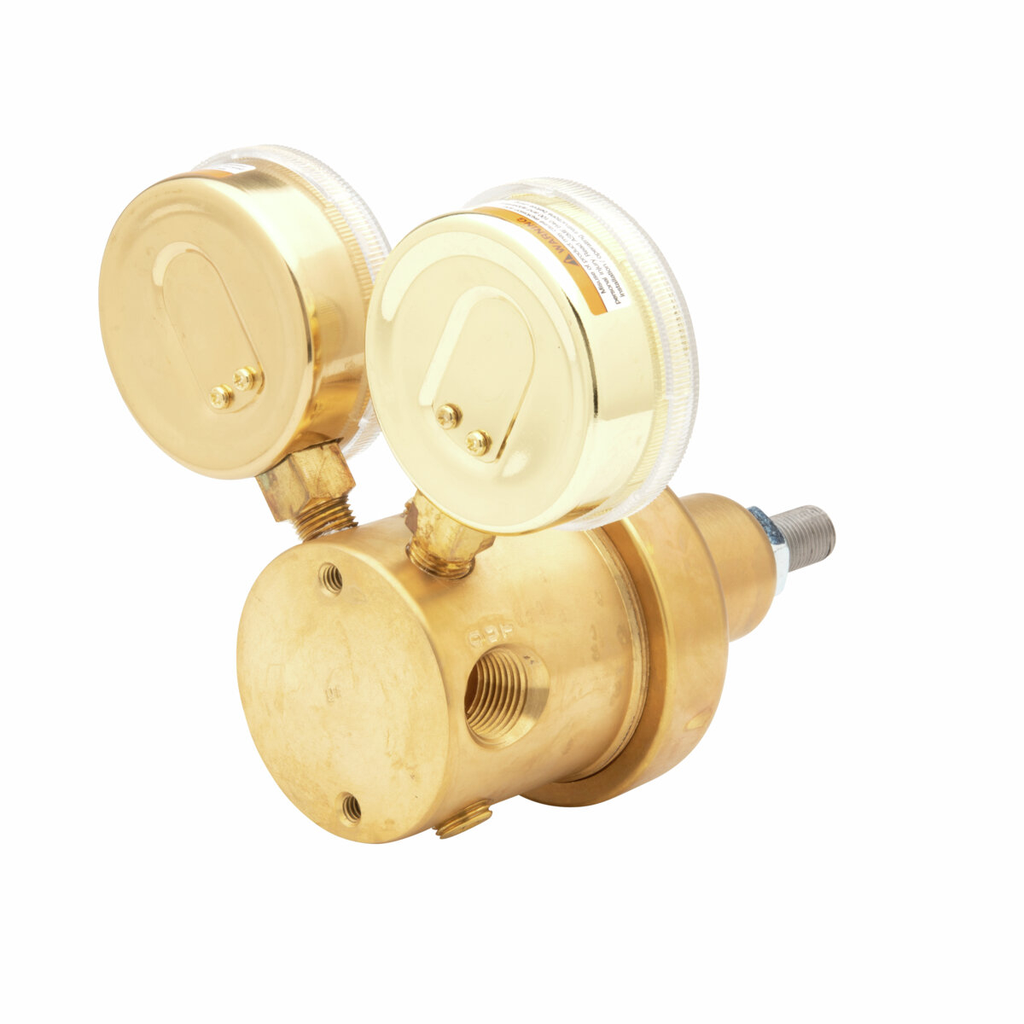

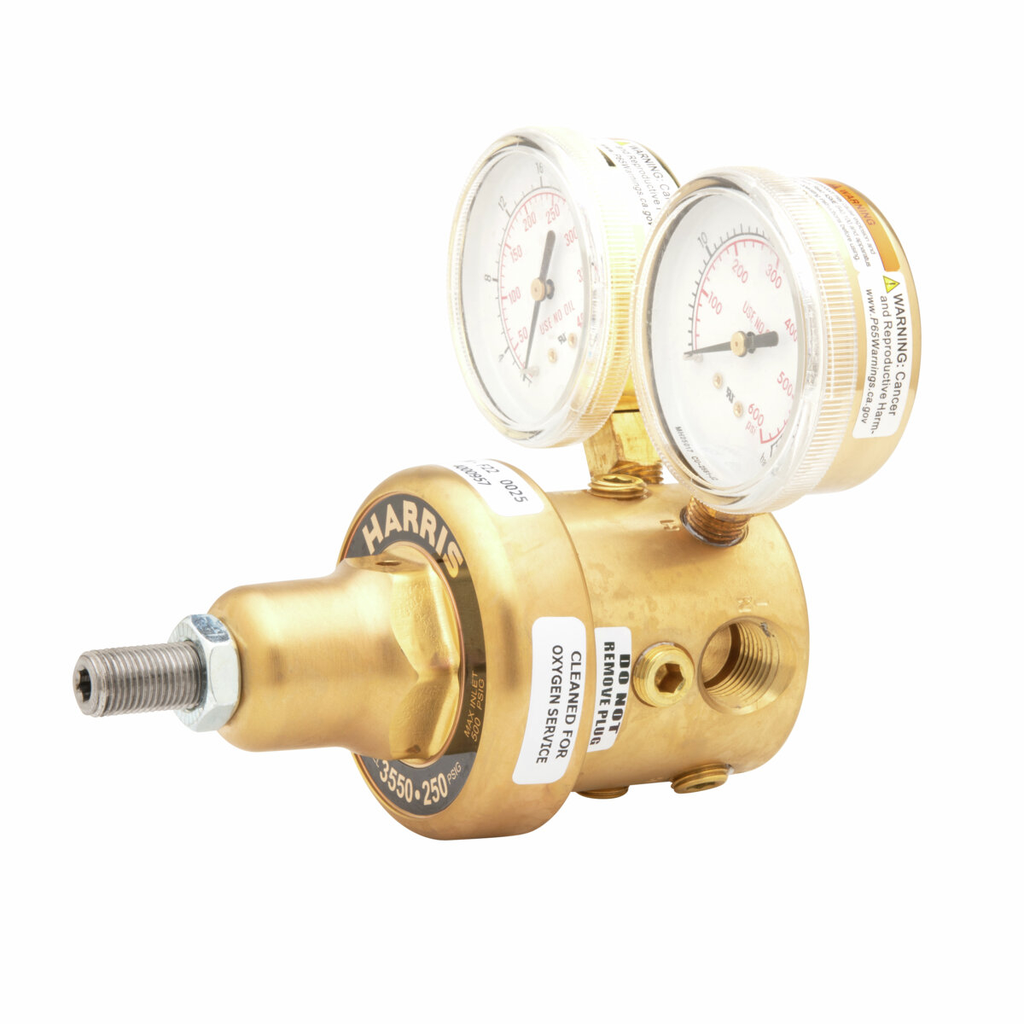

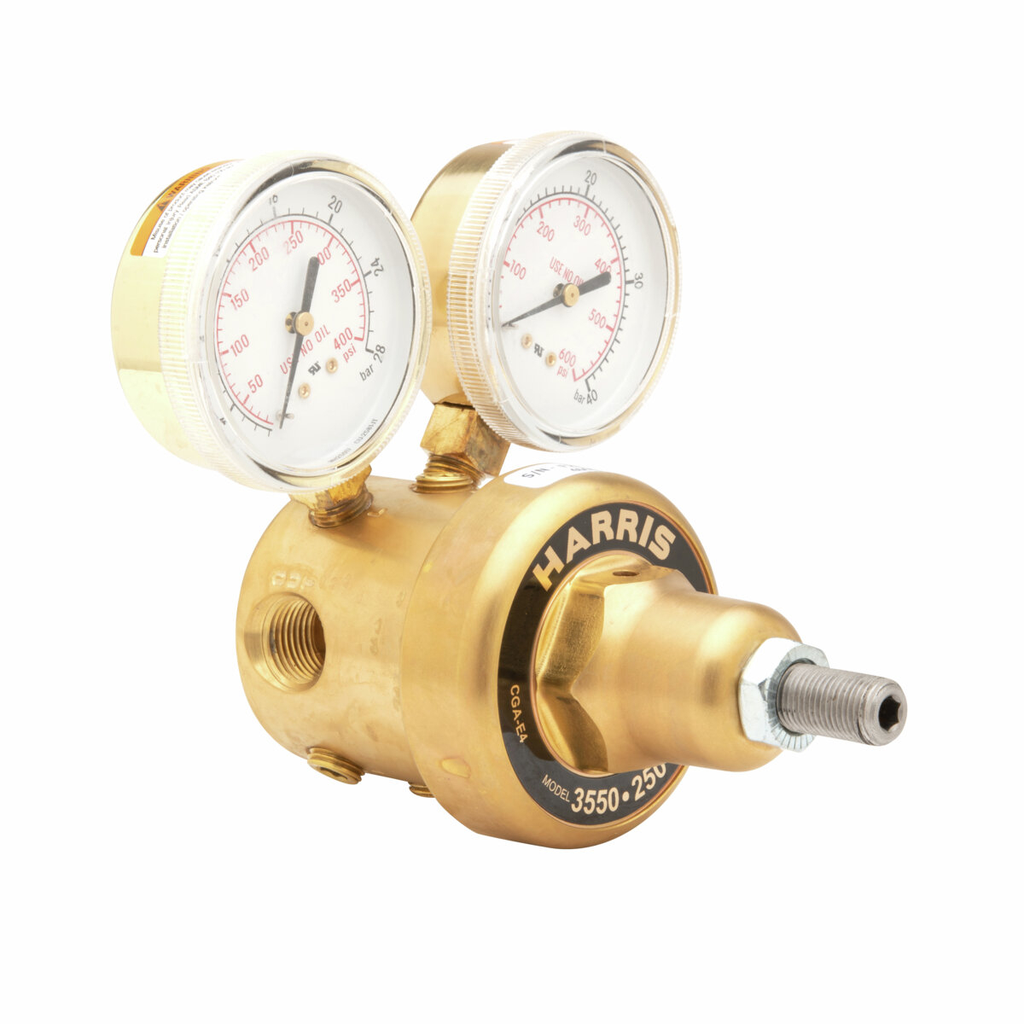

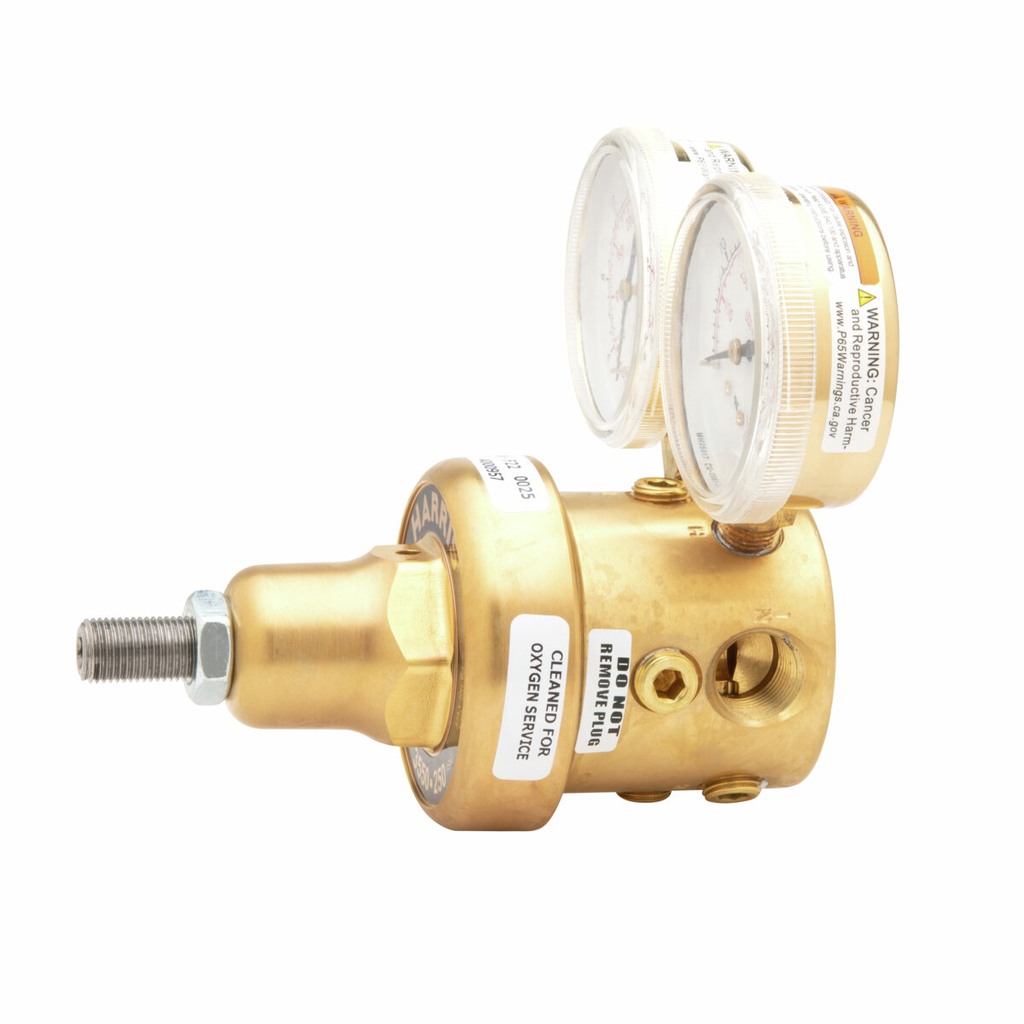

Model HP3550 is a brass barstock pipeline regulator with stainless steel diaphragm, Kel-F® seat, 4 ports and 1/2 in. NPT (F) inlet and outlet connections. The outlet pressure is preset to 250 PSIG.

Features

• 2.5 in. Brass dual scale easy-to-read gauges (psi/bar)
• Brass barstock body, bonnet and fittings
• 500 PSIG maximum inlet pressure
• Use with any non-corrosive gas, except acetylene
• Panel mountable
• 316 stainless steel diaphragm eliminates contamination from diffusion or outgassing
• Pre-set to 250 PSIG outlet pressure
• One-piece encapsulated seat design with 10 micron sintered internal filter to protect the Kel-F® seat from particulate contamination
• Equipped with 4 ports (2 low and 2 high)

• Maximum Inlet Pressure: 500 PSIG
• Outlet Pressure: 250 PSIG
• Gauge Size: 2.5 in
• Gauge Scale: psi/bar
• Inlet/Outlet Connection Size: 1/2 in NPT (F)
• Ports: 4 (2 low, 2 high)
• Material: Brass, 316 Stainless Steel
