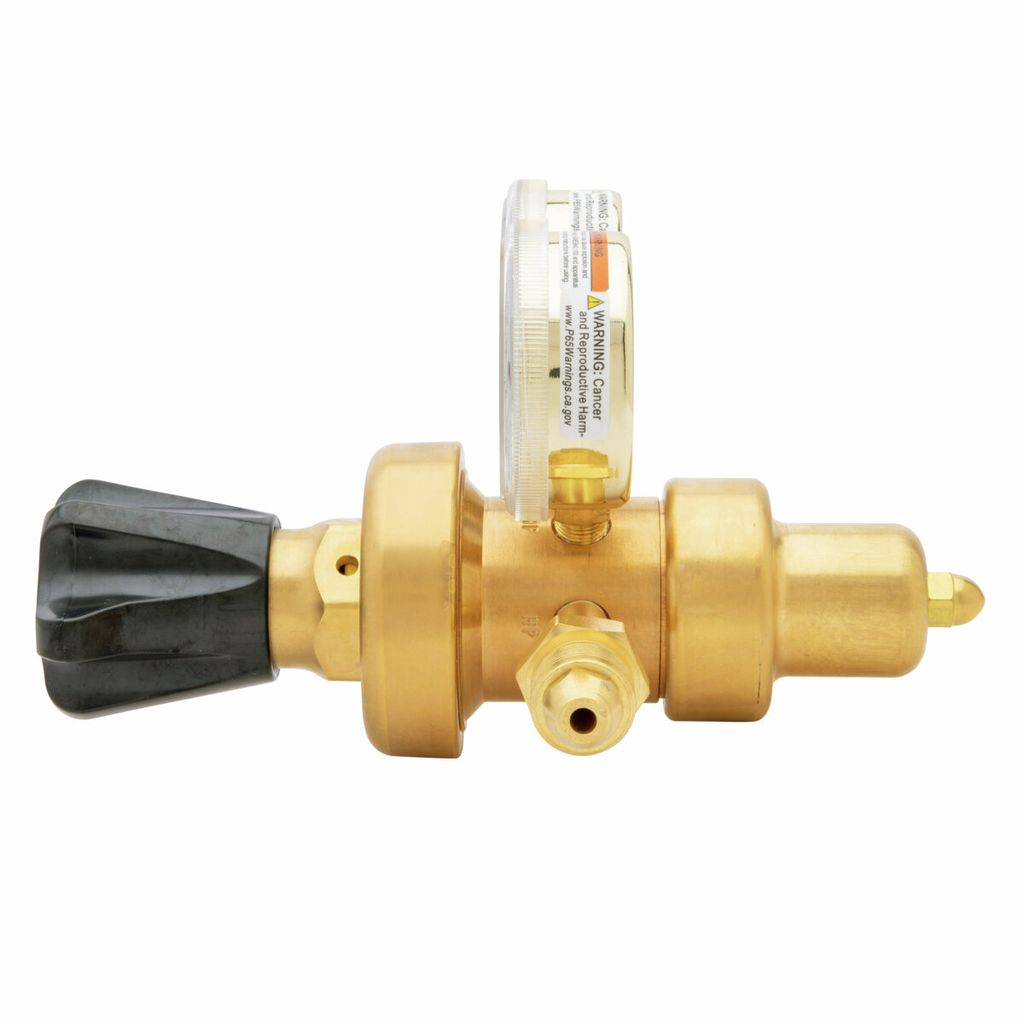

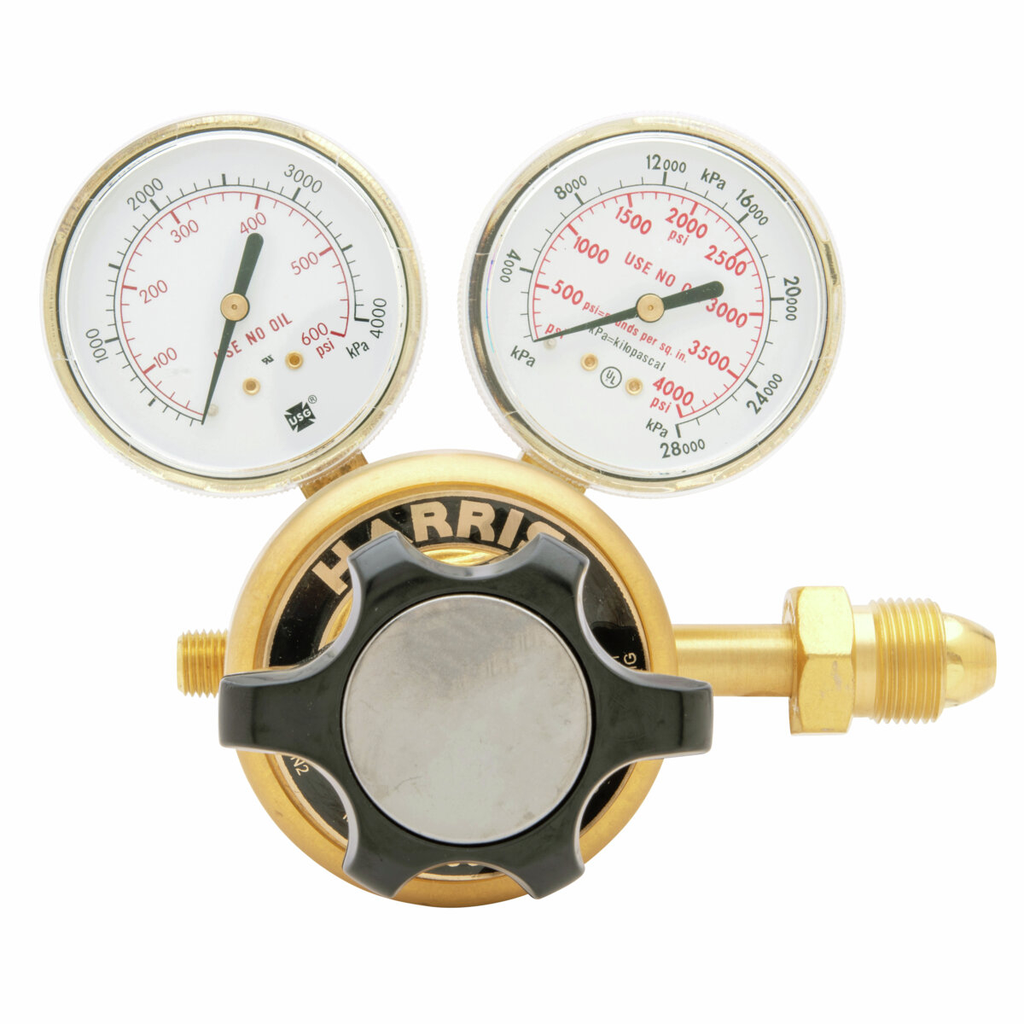

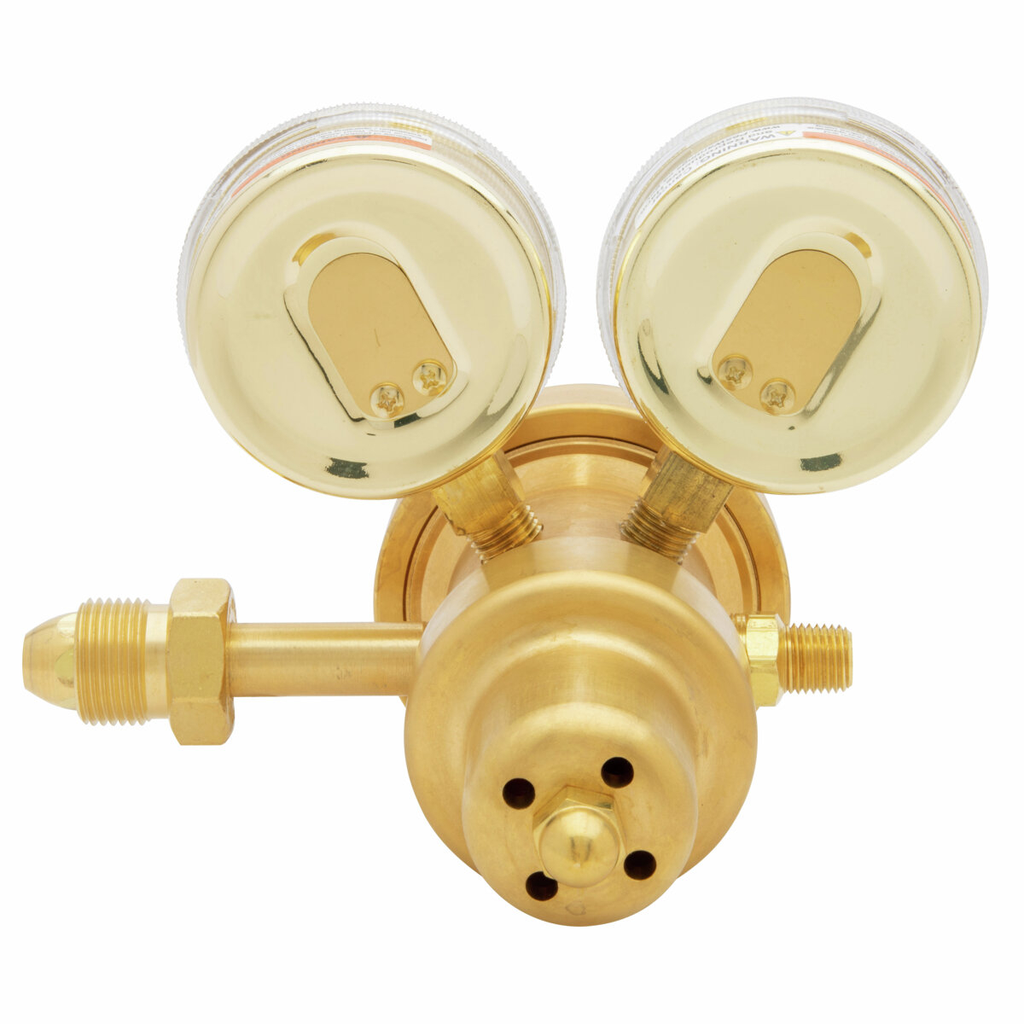

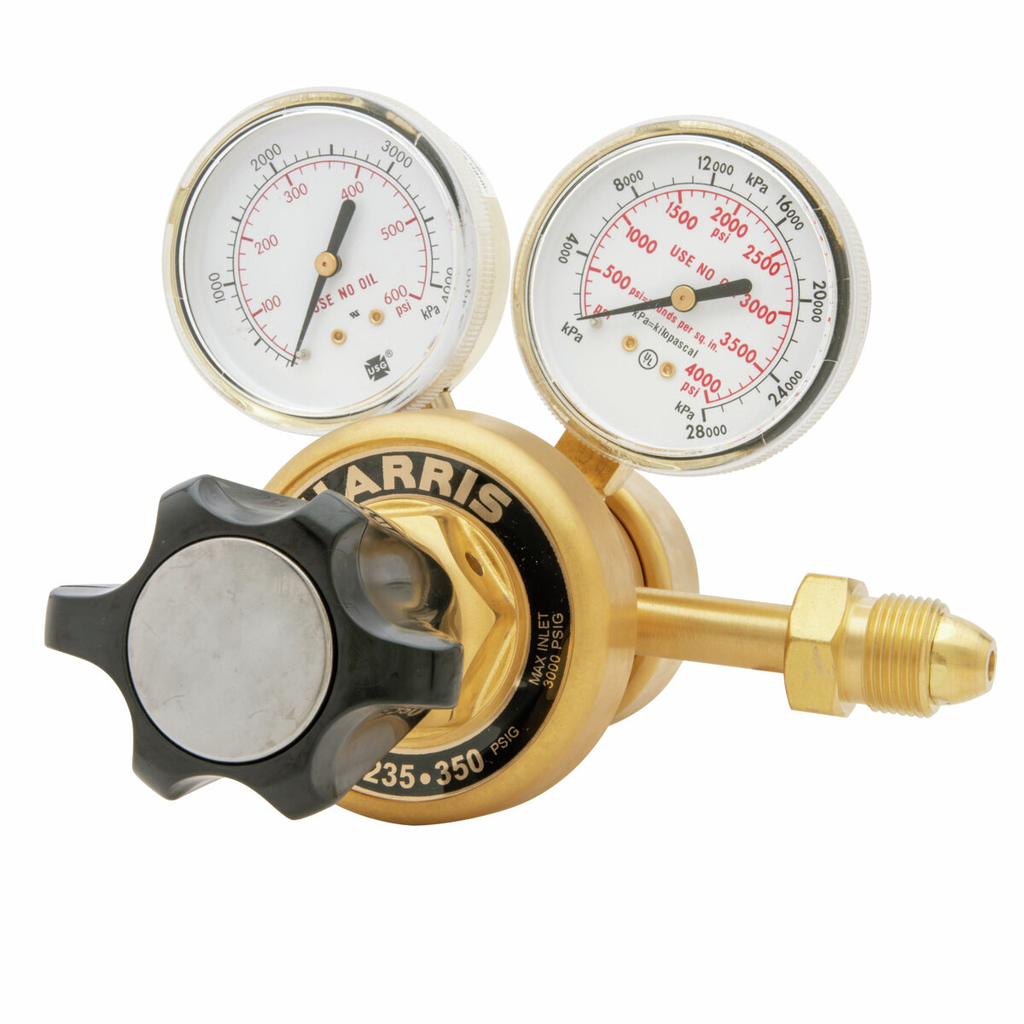

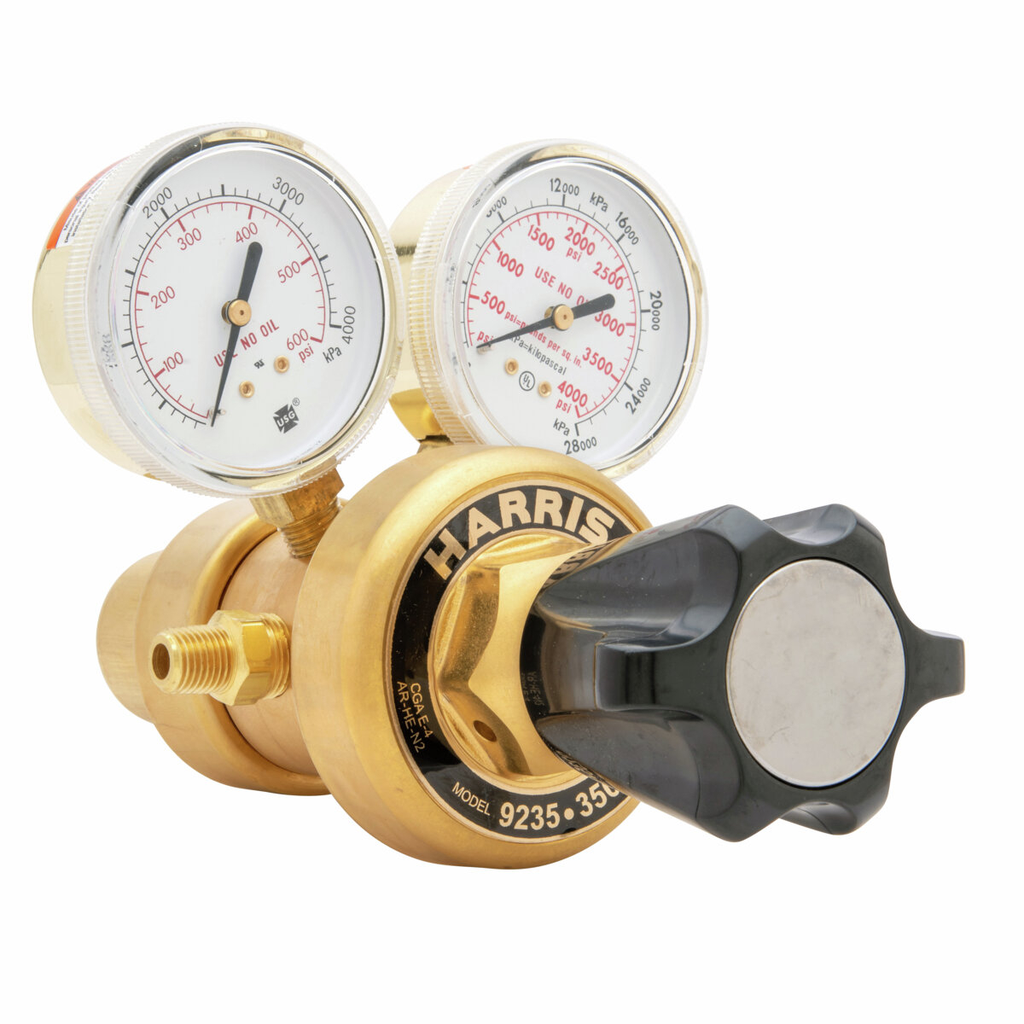

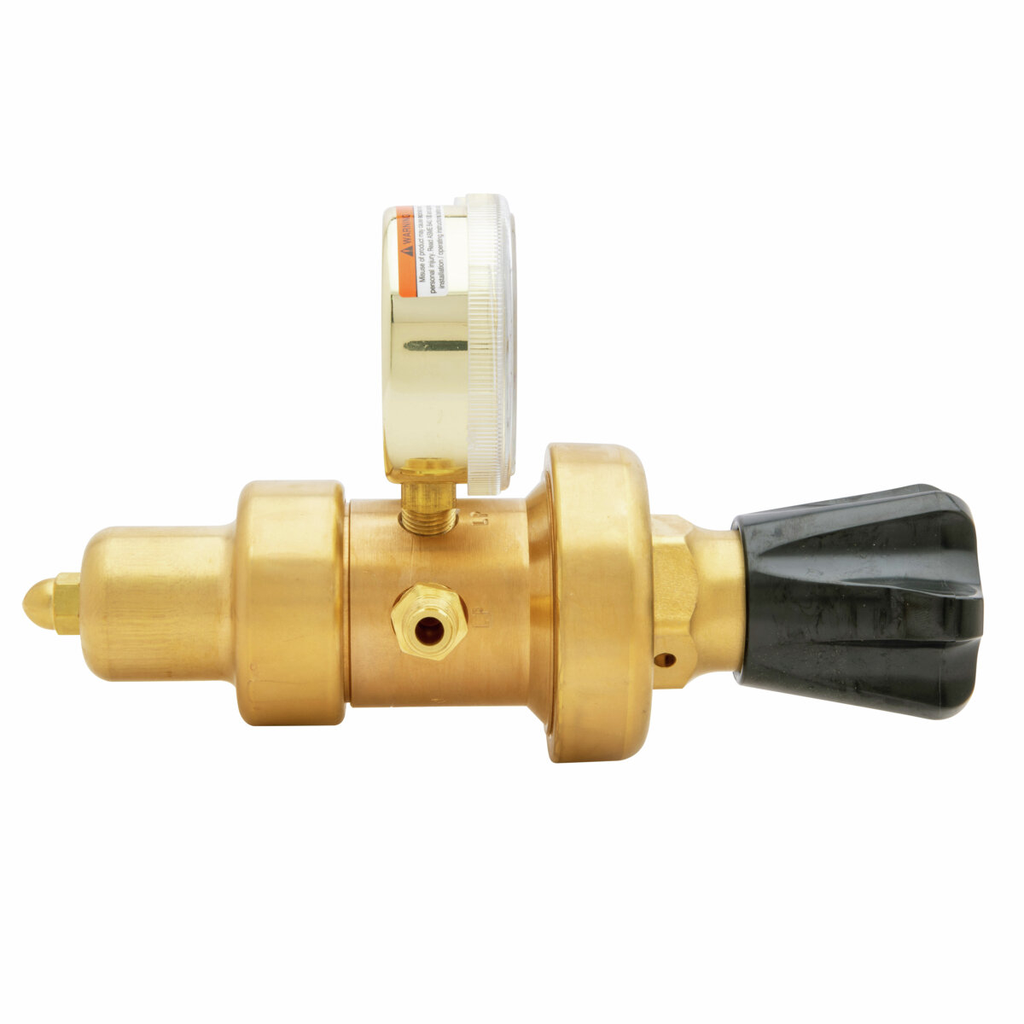

Harris Products Group, 3302302, Manifold Two-Stage Regulator, Brass Body, Max Inlet Pressure 3000 PSIG, Neoprene Diaphragms

Model 9235 manifold regulator is designed for gas purging, gas blanketing, pressure testing and other high flow applications. This heavy duty, two-stage, regulator features brass gauges, large plastic adjustment knob and one-piece encapsulated seat design with internal filter and PTFE Teflon® seat. The outlet body port is 3/8 in. NPT (F).

Features

• Brass body and painted brass bonnet for longer service life
• For applications where neoprene diaphragms are acceptable
• Designed for applications where a constant delivery pressure is required
• Maximum inlet pressure is 3000 PSIG
• 2.5 in. Brass dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Large 2.75 neoprene diaphragms for improved pressure control
• Ergonomic ABS plastic knob for easy grip and precise adjustment
• Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
• Conforms to CGA E-4 standard

• Maximum Inlet Pressure: 3000 PSIG
• Gauge Size: 2.5 in
• Diaphragm Size: 2.75 in
• Body Port Size: 3/8 in NPT (F)
• Weight: 8.35 lbs
• Material: Brass, Neoprene, PTFE Teflon
• Compliance: CGA E-4
