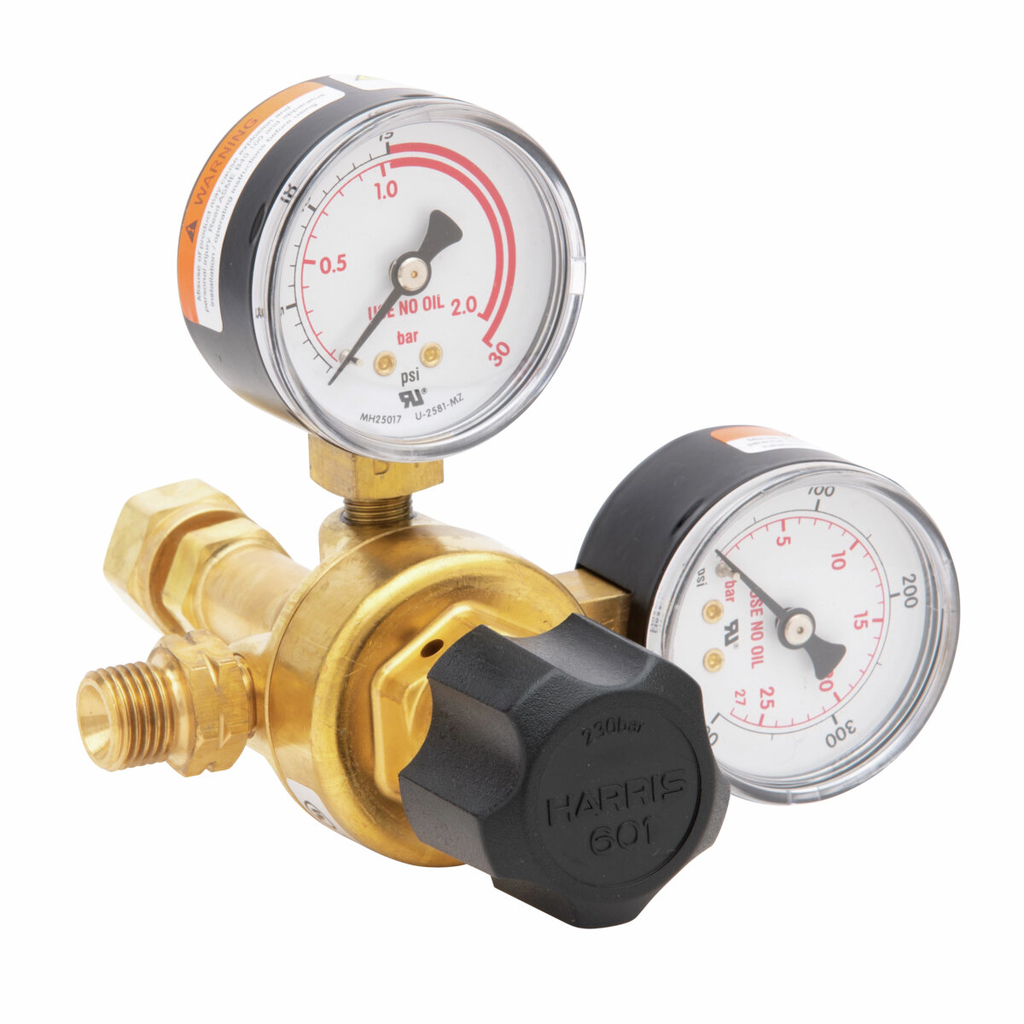

Harris Products Group, 3000331, Pressure Regulator, Compact Design, Brass Body, Dual Scale Gauges

Model 601 single-stage regulator is designed to be compact and economical, but with features typically available in more expensive models. It is used where weight, cost and size are factors. Features a brass body, 50mm ABS plastic dual scale gauges and one-piece encapsulated seat design with internal filter and PTFE Teflon® seat. This model is UL® listed.

Features

• 50mm ABS plastic dual scale easy-to-read gauges
• Neoprene diaphragm for better pressure control
• Higher end features and a lower price
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Large plastic knob for easy grip and precise adjustments
• Brass body and bonnet for longer service life
• For applications where weight, cost and size are critical factors
• UL® listed
• Compact design at an economical price

• Weight: 2.09 lbs
• Gauge Size: 50 mm
• Body Material: Brass
• Bonnet Material: Brass
• Gauge Material: ABS plastic
• Seat Material: PTFE Teflon
• Diaphragm Material: Neoprene
• Design: Single-stage
• Compliance: UL Listed
