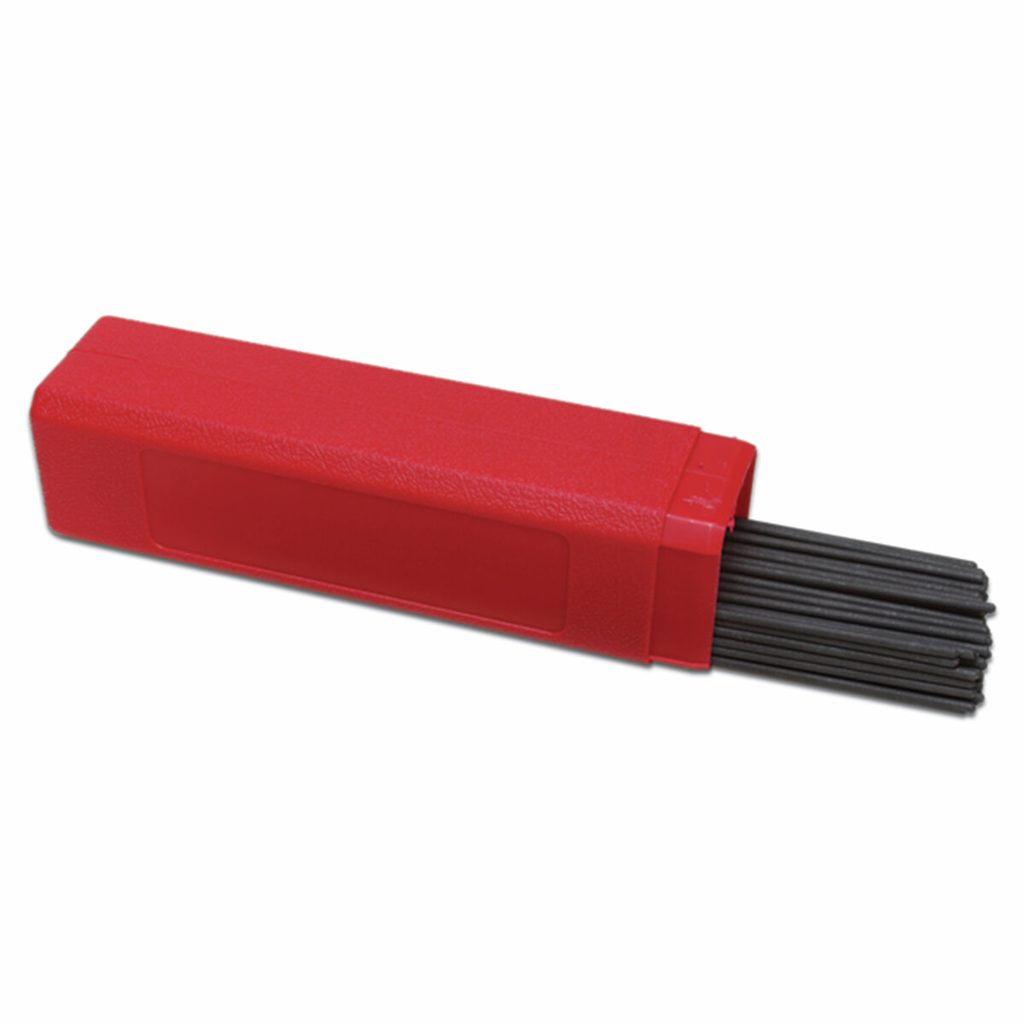

Harris® 65 nickel iron electrode is a premium nickel-iron alloy electrode (AC-DC). For gray and alloyed cast iron. Harris® 65 is for the repair of all types of cast iron. It yields dense, strong, yet totally machinable deposits. It is ideal for the repair of meehanite, nickel-resistant , ductile iron and for the joining of cast iron to steel. Typical applications embody the repair of castings, housings, gear teeth, motor, machine bases, etc.
Features
- All position welding
- Spatter-free, high-density, ductile deposits.
- Good corrosion resistance
- Premium nickel-iron electrode for welding gray and alloyed cast iron
- This premium cast alloy is ideal for repair of all types of cast iron, meehanite, nickel-resistant, ductile iron, and joining cast iron to steel
- First choice for ductility
- First choice for thick sections, but alternate choice for thin sections
- Typical applications include repairs of all types of castings, housings, gear teeth, motor blocks and machine bases, etc.
- Good machinability
- Close color match to nickel
-
Welding Current Type: AC-DC
-
Recommended Weld Settings - 3/32 in: 50-80 AMPS
-
Recommended Weld Settings - 1/8 in: 70-110 AMPS
-
Recommended Weld Settings - 5/32 in: 100-140 AMPS
-
Recommended Weld Settings - 3/16 in: 130-175 AMPS
-
Weight: 1.08 lbs
-
Material: Nickel-Iron Alloy
-
Mechanical Properties - Tensile Strength: 74,000 PSI
-
Mechanical Properties - Yield Strength: 54,000 PSI
-
Mechanical Properties - Elongation: 22%
-
Hardness: Rockwell B 88-90, Brinell 180, Vickers 189
-
Welding Positions: All
-
Application: Gray and alloyed cast iron, ductile iron, meehanite, nickel-resistant, joining cast iron to steel
