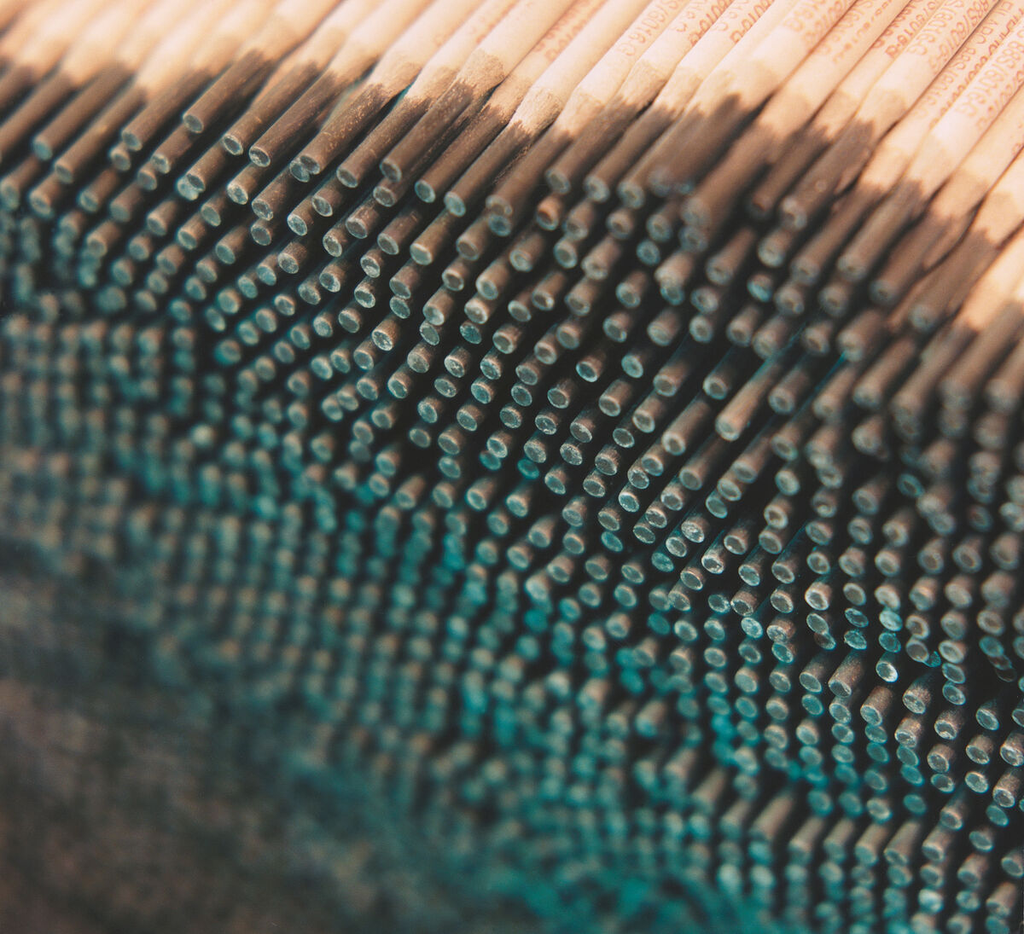

Stoody, 10243500, Hardfacing Electrode, 3/16 in; 14 in, 140-160 Amps, ERCoCr-A, 40-48 HRC

Stoodite 6 bare rod provides resistance to many forms of chemical and mechanical degradation over a wide temperature range. It is the most versatile and widely used cobalt alloy, with a good balance of abrasion and impact resistance. Particular attributes of Stoodite 6 are it's outstanding anti-galling properties, high temperature hardness, and high resistance to cavitation erosion that results in it's wide use as a valve seat material. It bonds well to all weldable grade steels and stainless.

Applications

• Zinc tanks
• Forging dies
• Chemical and steam valve trim
• Diesel engine valves
• Guide rolls
• Bearing and bushing areas
• Plastic extrusion screws
• Trimmer dies
• Trunnions

Prop 65

• Yes

Features

• Flat position

• Amperage Range: 140 Amps-160 Amps
• Diameter: 3/16 in
• Length: 14 in
• Hardness: 40-48 HRC
• AWS Classification: ERCoCr-A
• Tensile Strength: 40-48 HRC
• Process: SMAW
• Material: Cobalt Alloy
• Country of Origin: United States
