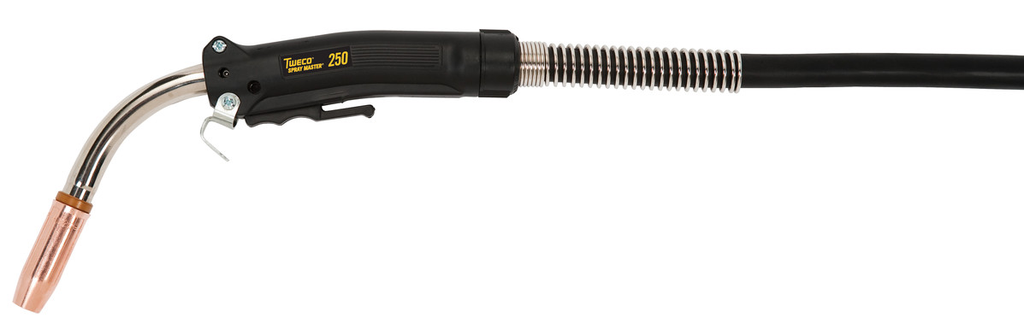

Tweco, 10231126, MIG Gun, 250 A, 12 ft, Euro-Kwik Connector, 0.035" - 0.045" Wire Size, Air Cooled

Tweco® Spray Master® Series 250 A MIG Gun with heavy-duty contact tip accommodates wires sizes of 0.035 - 0.045" and has ergonomic handle design that reduces welders fatigue. Air-cooled MIG gun is ideal for spray as well as pulse welding applications and features simplified direct rear plug for easy installation. 12' Cable MIG gun incorporating standard 60 deg conductor tube offers to swivel 360 deg around handle and can be rapidly removed and replaced without removing the conduit. MIG gun with rear Euro-Kwik connection features fully insulated Mig-Kwik connection which grant user to connect or disconnect at the wire feeder. MIG gun offers 80% duty cycle with argon/CO2 gases and has capacity to deliver under pressure. It is easy to repair and requires less maintenance. It features a diffuser for enhanced performance in high heat applications.

Applications

• Garage
• Maintenance And Repair Applications
• Hobby/DIY
• Farm
• Production
• Artistic Metal Working
• Shop Jobs

Accessories

• Miller Control Wire * Plug 2030-2075
• Euro-Kwik Nut 2040-2177
• Cablehoz Assembly - 12 ft 1720-2116
• Cablehoz Assembly - 25 ft 1720-2118
• Cablehoz Assembly - 15 ft 1720-2117
• Lincoln Rear Connect 2035-2112
• Tigger-Locking 2060-2693
• Euro-Kwik Connection Assembly 2040-2276
• Lincoln Control Wire & Plug 2060-2137
• Tweco Dual Schedule Control Wire & Plug 2060-2138
• Tigger Blade Assembly 2060-2671
• Cablehoz Assembly Euro-Kwik 25 ft 1720-2109
• Tweco Control Wire 2060-2139
• Cablehoz Assembly Euro-Kwik 12 ft 1720-2107
• Tweco Rear Connector 2035-2110
• Trigger- Standard & Dual Schedule 2060-2647
• Miller Rear Connector 2035-2111
• Cablehoz Rear Euro-Style Mechanical Connector Replacement Kit 2040-2181
• Handle Locking Triffer 2060-2127
• Cablehoz Front Mechanical Connector Replacement Kit 2060-2132
• Spray Master Handle 2060-2130
• Cablehoz Assembly Euro-Kwik 15 ft 1720-2108
• Cablehoz Reat Mechanical Connector Replacement Kit 2060-2134
• Euro-Kwik Connector Case 2060-2006

Features

• Wide welding applications: Spray transfer mode and pulse welding straight co2 or mixed gases
• Durable metal jacketed conductor tube
• Compact, ergonomic handle design
• Optional dual schedule and locking trigger
• Extended trigger length to keep hand away from the arc to reduce radiated heat
• Thick-walled, three-layer conductor tube for higher electrical conductivity, act as heat sink and durable
• Lower heat in the handle and conductor tube: Heavy wall conductor tube and front Cablehoz® connection (crimped) for improved electrical conductivity and lower heat in the front end
• Steel spring strain relief provides support to the Cablehoz® coming out the rear of the handle to minimize wire feed issues
• Heavy-duty thick-walled contact tip and diffuser increases tip life and decreases downtime with tip changes
• Field repairable mechanical cable connections for Cablehoz® spare trigger leads in Cablehoz®
• Patented, extended life consumables
• Field repairable: Split-half handle case provides access for ease of repair
• Optional mechanical locking trigger - Identified with "LC" Part No. suffix
• Balanced to pivot at the center of the handle for ease of use in different welding positions, reduces operator fatigue
• Lower inventory carrying costs: Interchangeable front end consumables between Tweco® classic no. Series and Tweco® spray master series
• Standard gun configurations options: Standard trigger on/off operation
• Front and rear spring strain relief and cable support
• Rated at 80% duty cycle using mixed gases
• Heavy-duty contact tip and diffuser for improved performance in high heat applications

• Amperage: 250 A
• Cable Length: 12 ft
• Wire Size: 0.035 - 0.045 in
• Cooling Method: Air Cooled
• Welding Type: Spray, Pulse
• Physical Size: 14.3 x 23 x 3.2 in
• Wire Type: Solid, Flux Cored Gas Shielded, Flux Cored Self-Shielded, Aluminum
• Connector Type: Euro-Kwik Style Connector
• Country of Origin: Mexico
