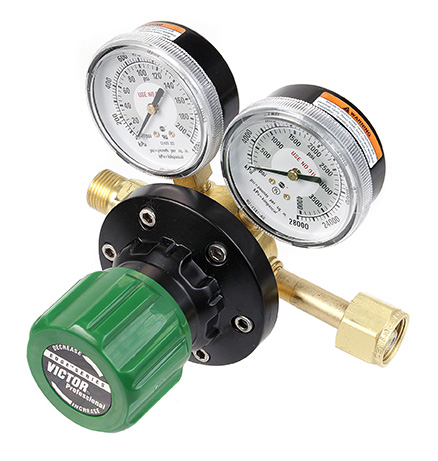

Victor, 0781-5181, High Flow Regulator, CGA-540, 5-125 psig, Oxygen, Forged Brass, 2-1/2 in Gauge

Victor® ESS7 EDGE™ Series Single Stage Extra High Capacity Oxygen Regulator offers 5 - 125 psig delivery range and provides reliable, superior quality gas control technology. Regulator with maximum inlet pressure of 3000 psig features forged brass body, stainless steel bolts and zinc-aluminum housing cap with almost twice the yield strength of brass. Regulator designed for high flow applications like heavy cutting has 2 1/2" ga with updated artwork, 4000 inlet gauge range and 400 outlet gauge range. Regulator with 540 CGA inlet connection has 7/8"-14 RH(M) outlet connection. It features advanced design making them compact industrial regulator. Regulator with easy to read gauges featuring enhanced graphics has color-coded knobs to allow quick gas identification. It provides natural as well as safe hand/body positioning to adjust delivery pressure. Regulator with 0.488 Cv flow coefficient provides uniform flow performance over various range of cylinder pressures with high sensitivity and accuracy in delivery pressure. It comes with color-coded SLAM™ impact absorbing safety knob for added strength, safety as well as protection of the regulator internals. It can be used for replacing SR 700 series. Long lasting regulator meets or exceeds CGA E-4, UL 252 standards.

Features

• Zinc aluminum housing cap
• High impact ABS gauge guard
• Sintered inlet filter bronze
• UL 252 Listed
• External self reseating relief valve
• Color coded SLAM ™ impact absorbing safety knob
• Three stage crumple zone
• Conforms to CGA E-4
• Stem type seat mechanism
• Forged brass bodies

• Pressure Range: 5 - 125 psig
• Maximum Inlet Pressure: 3000 psig
• Flow Coefficient: 0.488 Cv
• Inlet Connection: CGA-540
• Outlet Connection: 7/8 in - 14 RH Male
• Gauge Size: 2.5 in
• Physical Size: 8.1 x 8.6 x 8.8 in
• Material: Forged Brass
• Regulator SubType: High Flow Regulator
• Regulator Type: Single Stage Regulator
• Workload: Extra High Capacity
• Fuel Gas: Oxygen
• Country of Origin: Mexico
• Model: ESS7-125-540
• Trade Name: EDGETM
• Compliance: CGA E-4, UL 252 Listed
