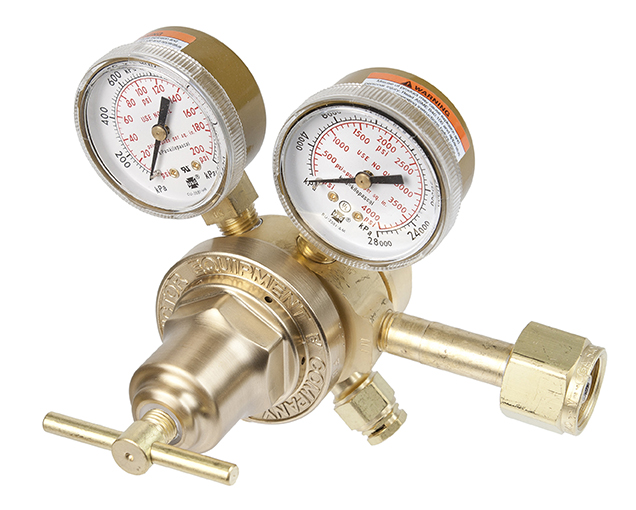

Victor, 0781-3574, Two Stage Regulator, CGA-320, 2 in Gauges, CO2, 4 - 80 psig

Victor® VTS 250 Series Two Stage Medium Duty Carbon Dioxide has a delivery pressure 80 psig and feature 2" steel gauges. Regulator measuring 6 1/2" X 5.63" X 6.13" has a maximum inlet pressure of 3000 psig and 1.3" diaphragm, 1 3/4" fabric reinforced neoprene. Carbon dioxide regulator is perfectly suited for the wide variety of medium to high capacity general-purpose applications that requires precise and constant outlet pressures.

Features

• Sintered inlet filter
• CGA E-4
• 2" gauges
• Diaphragm 1-1/8" and 1-3/4"
• Forged brass body and housing cap
• UL Listed
• Stem type seat mechanism
• Delrin cap bushing for smooth adjustments

Applications

• Laboratory

• Workload: Medium Duty
• Fuel Gas: Carbon Dioxide (CO2)
• Delivery Pressure: 4 - 80 psig
• Maximum Inlet Pressure: 3000 psig
• Gauge Size: 2 in.
• Diaphragm Size: 1.3 in
• Inlet Connection: CGA-320
• Outlet Connection: 5/8" - 18 (RH Female)
• Physical Size: 6.3 x 7.4 x 7 in.
• Material: Brass
• Diaphragm Material: Fabric Reinforced Neoprene
• Regulator Type: Two Stage Regulator
• Country of Origin: Mexico
• Model: VTS253C-320
• Compliance: UL Listed
