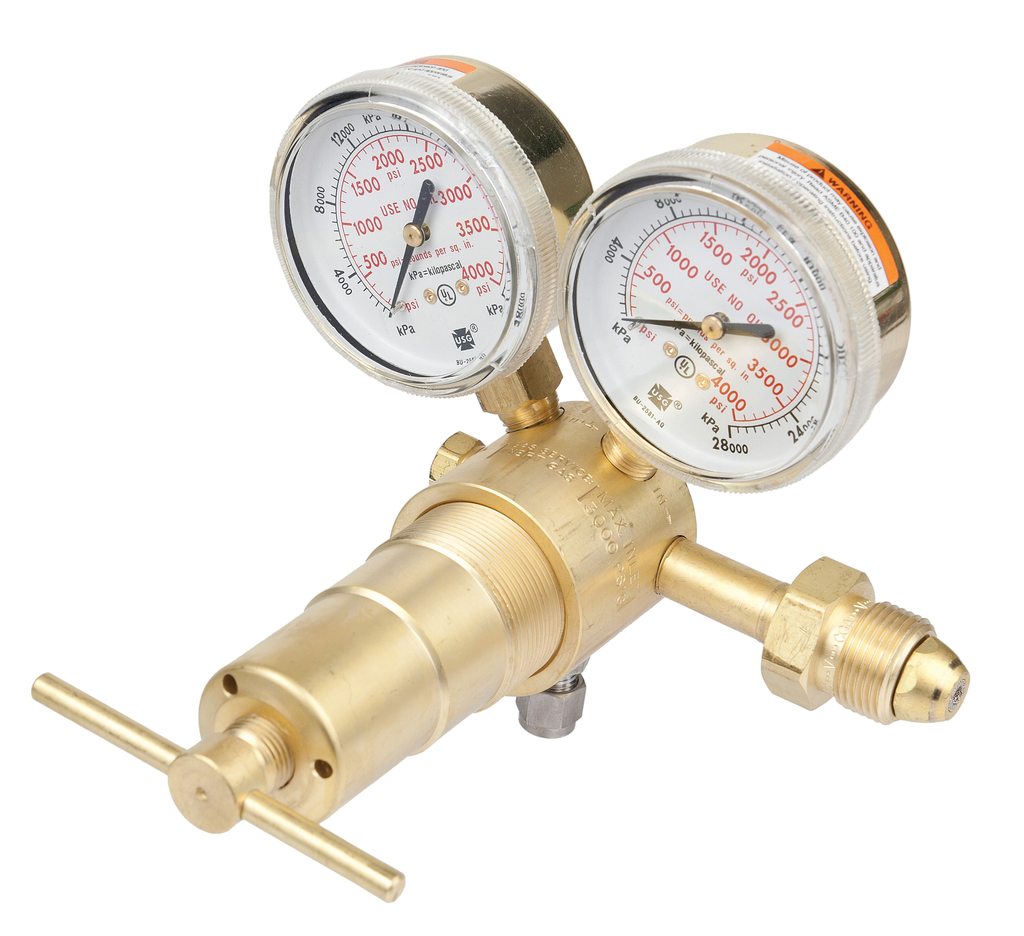

Victor, 0781-1453, Regulator, Single Stage, 200 - 3000 psig, Inert Gas, 1/4" Swaglok , CGA-677

Victor® SR4J Single Stage Heavy-Duty High Pressure Inert Gas Piston Regulator offers 200 - 3000 psig of delivery that is perfect for pressure vessel and dead-end testing. Regulator with maximum inlet pressure of 7500 psig features a machined brass body with housing cap and has 2 1/2" brass gauges having brass piston with Delrin cap bushing for smooth adjustments. Regulator comes with 677 CGA inlet connection having bronze sintered filter and 1/4" Swagelok outlet connection with 1/4' stainless tube fitting. 6" X 6 1/4" X 6 1/2" Regulator features a cartridge type seat assembly with PCTFE seat and an external adjustable relief valves.

Applications

• Pressure Vessel Testing

Features

• Hydrogen models have ventable relief valves (J Series does not)
• Sintered inlet filter bronze
• Machined brass body and housing cap
• Delrin cap bushing for smooth adjustments
• Cartridge type seat assembly with PCTFE seat
• External adjustable relief valve on F and G range model
• Piston type actuation brass

• Pressure Range: 200 - 3000 psig
• Maximum Inlet Pressure: 7500 psig
• Delivery Rate: 200 - 3000 psig
• Outlet Connection: 1/4 in Swagelok (Female)
• Inlet Connection: CGA-677
• Gauge Size: 2 1/2 in
• Physical Size: 7.5 x 8.8 x 6.2 in
• Material: Brass, Bronze, PCTFE, Stainless Steel, Delrin
• Valve Type: External adjustable relief valve
• Filter Type: Sintered bronze inlet filter
• Fuel Gas: Inert Gas
• Regulator SubType: Single Stage Regulator
• Workload: Heavy Duty, High Capacity
• Country of Origin: Mexico
