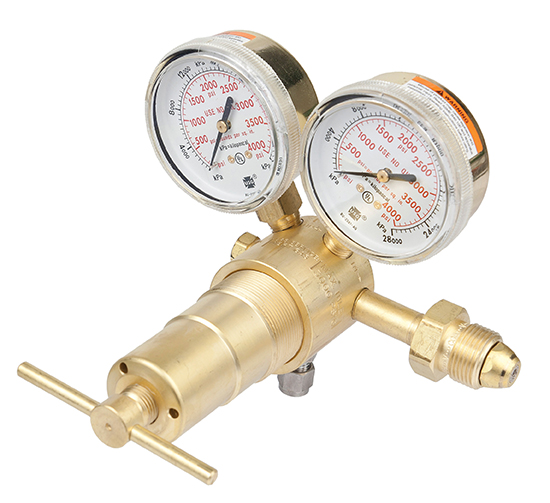

Victor, 0781-1410, Single Stage Regulator, CGA-680, 50 - 750 psig, Brass Body, 2-1/2 in Gauge

Victor® SR4F Single Stage Heavy-Duty High Pressure Inert Gas Piston Regulator offers 50 - 750 psig of delivery that is perfect for pressure vessel and dead-end testing. Regulator with maximum inlet pressure of 5500 psig features a machined brass body with housing cap and has 2 1/2" brass gauges having brass piston with Delrin cap bushing for smooth adjustments. Regulator comes with 680 CGA inlet connection having bronze sintered filter and 1/4" Swagelok outlet connection with 1/4' stainless tube fitting. 6" X 6 1/4" X 6 1/2" Regulator features a cartridge type seat assembly with PCTFE seat and an external adjustable relief valves.

Features

• Hydrogen models have ventable relief valves (J Series does not)
• Sintered inlet filter bronze
• Machined brass body and housing cap
• Piston type actuation brass
• Delrin cap bushing for smooth adjustments
• Cartridge type seat assembly with PCTFE seat
• External adjustable relief valve on F and G range model

Applications

• Pressure Vessel Testing

• Max Inlet Pressure: 5500 psig
• Delivery Pressure Range: 50 - 750 psig
• Gauge Diameter: 2.5 in
• Inlet Connection: CGA-680
• Outlet Connection: 1/4 in Swagelok (Female)
• Physical Size: 8.6 x 7.5 x 6.1 in
• Material: Brass, Bronze, PCTFE, Delrin, Stainless Steel
• Model: SR4F-680
• Country of Origin: United States
• Regulator Type: Single Stage Regulator
• Fuel Gas: Argon, Nitrogen
