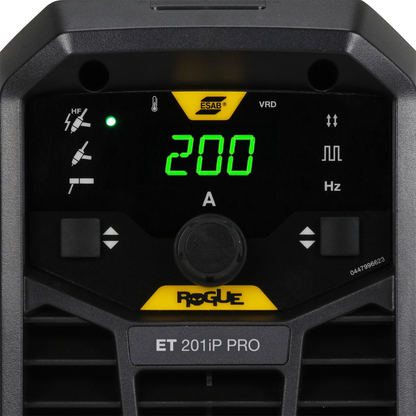

Rogue ET 201iP Pro is a powerful high frequency start TIG machine. This easy to use welder is designed with a robust and durable housing that is IP23S rated. Weighing only 9.6 kg (21.2 lbs) this lightweight welder features an ergonomic handle, carrying strap and long extension cables for maximum portability. Rogue ET offers exceptional arc characteristics, both in TIG and Stick mode. Want more control over your welder? Rogue ET provides several TIG parameters that can be easily adjusted including gas pre flow, start current, ramp up time, ramp down time, finish current and post flow. All of which can be programmed using 2 or 4 stroke mode for greater arc control. Additionally, Rogue ET 201iP PRO offers a pulse feature with background current control and frequency adjustments up to 500 Hz for better heat input control. In Stick mode, Hot Start or Arc Force can be adjusted according to individual welding preferences or applications. New Pulse SMAW functionality enhances Rogue's performance and improves the heat input control, to minimize thin gauge materials distortion , facilitate out-of-position welding with no undercuts and reduces spatter, thus helping to effectively avoid a number of welding defects.

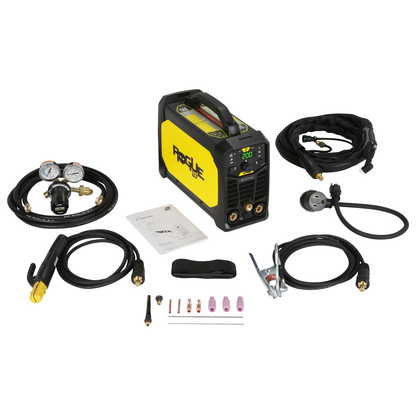

Accessories
- TIG Torch SR-B 26 with Flexible Neck and Potentiometer 4 m (13 ft) 0700025557
- Ground Clamp 200 A and Lead Assembly, 3 m (10 ft), 50 mm WS200G10
- Electrode Holder 200 A and Lead Assembly, 4 m (13 ft), 50 mm WS200E13
- TIG Torch SR-B 26 with Flexible Neck and Potentiometer 8 m (26 ft) 0700025591
- Shoulder strap 0700500086
- TIG Foot Control, 4.5 m (15 ft) cable and 8-pin connector W4014450
- Victor Argon Flow Gauge Regulator GF-250-50-580 0781-9411
- MMA 4 Analogue Remote Control incl. 10 m (32 ft) cable and 8-pin connector 0700500084
Features
- High Frequency TIG start, prevents contamination of weld surface and improves weld quality
- Easy to Use – set the welding current and adjust a wide range of arc parameters for more control over your weld, also suitable for use with compliant generators
- Robust Housing – IP23S designed for both fabrication floor or site applications
- Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)
- Pulse SMAW functionality - improves heat input control, minimizes distortion of thin materials and helps reduce spatter for higher quality welds
- Advanced TIG parameter control to match every application and pulse feature up to 500 Hz for for better heat input control
- Compatible with current adjusting foot pedal (sold separately)
Applications
- Industrial and General Fabrication
- Food & beverage
- Agricultural Equipment
- Civil Construction
- Repair and Maintenance
-
Amp Range: 10 - 200 A
-
Output Amps (Max): 200 A
-
Duty Cycle: Stick 120V: 70 A / 22.8 V @ 60%, 230V: 129 A / 25.2 V @ 60%; TIG 120 V: 90 A / 13.6 V @ 60%, 230 V: 129 A / 15.2 V @ 60%
-
Pulse Frequency: up to 500 Hz
-
Input Voltage: 115/230 VAC
-
HZ: 50/60 Hz
-
Phase: Single
-
Weight: 9.6 kg (21.2 lbs)
-
Physical Size: 15.7 x 6 x 10.4 in.
-
Cable Length: 10 ft.
-
Lead Cord Length: 10 ft.
-
Extension Cable Length: up to 100 m (328 ft)
-
Ground Clamp Cable Length: 3 m (10 ft)
-
Electrode Holder Cable Length: 4 m (13 ft)
-
TIG Torch Cable Lengths: 4 m (13 ft), 8 m (26 ft)
-
TIG Foot Control Cable Length: 4.5 m (15 ft)
-
Ground Clamp Amperage: 200 A
-
Electrode Holder Amperage: 200 A
-
Cooling Method: Air-Cooled
-
Process: STICK (SMAW), TIG (GTAW)
-
Ingress Rating: IP23S
-
Country of Origin: China
