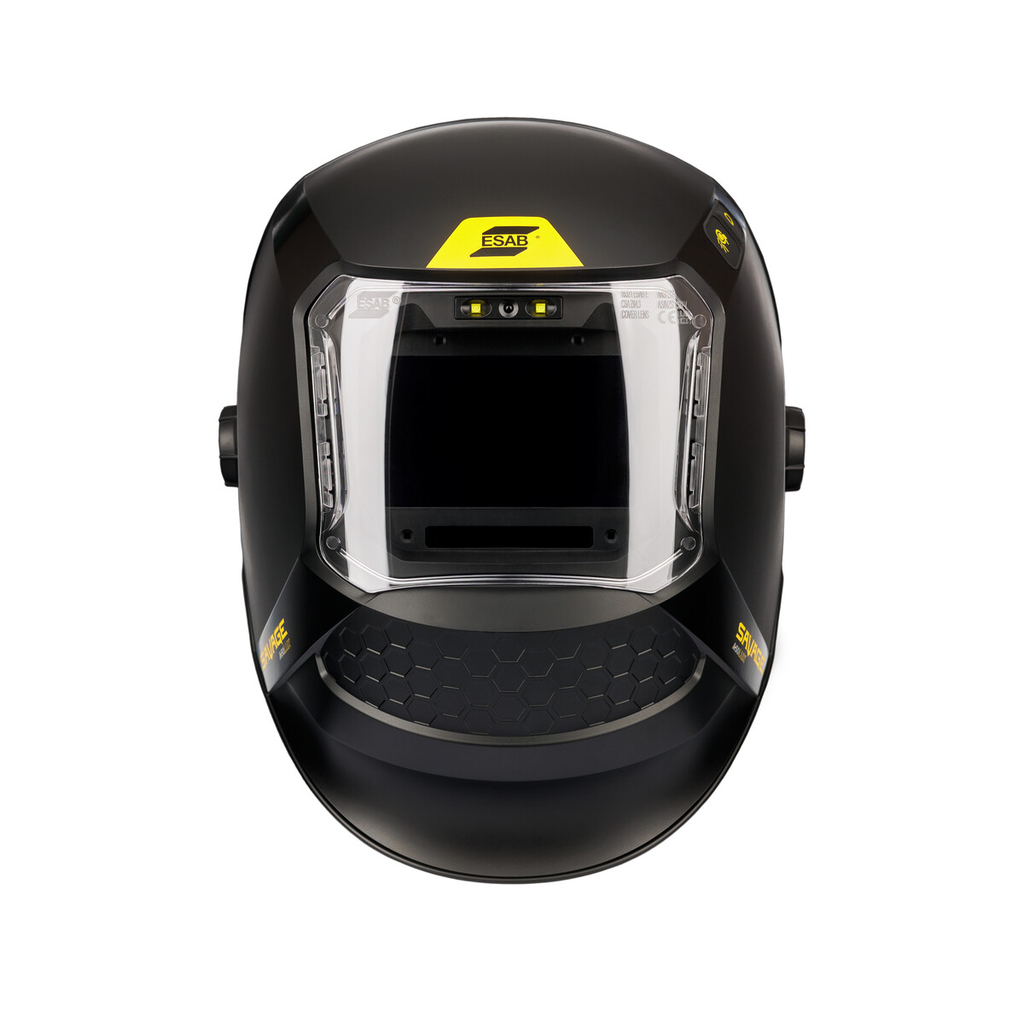

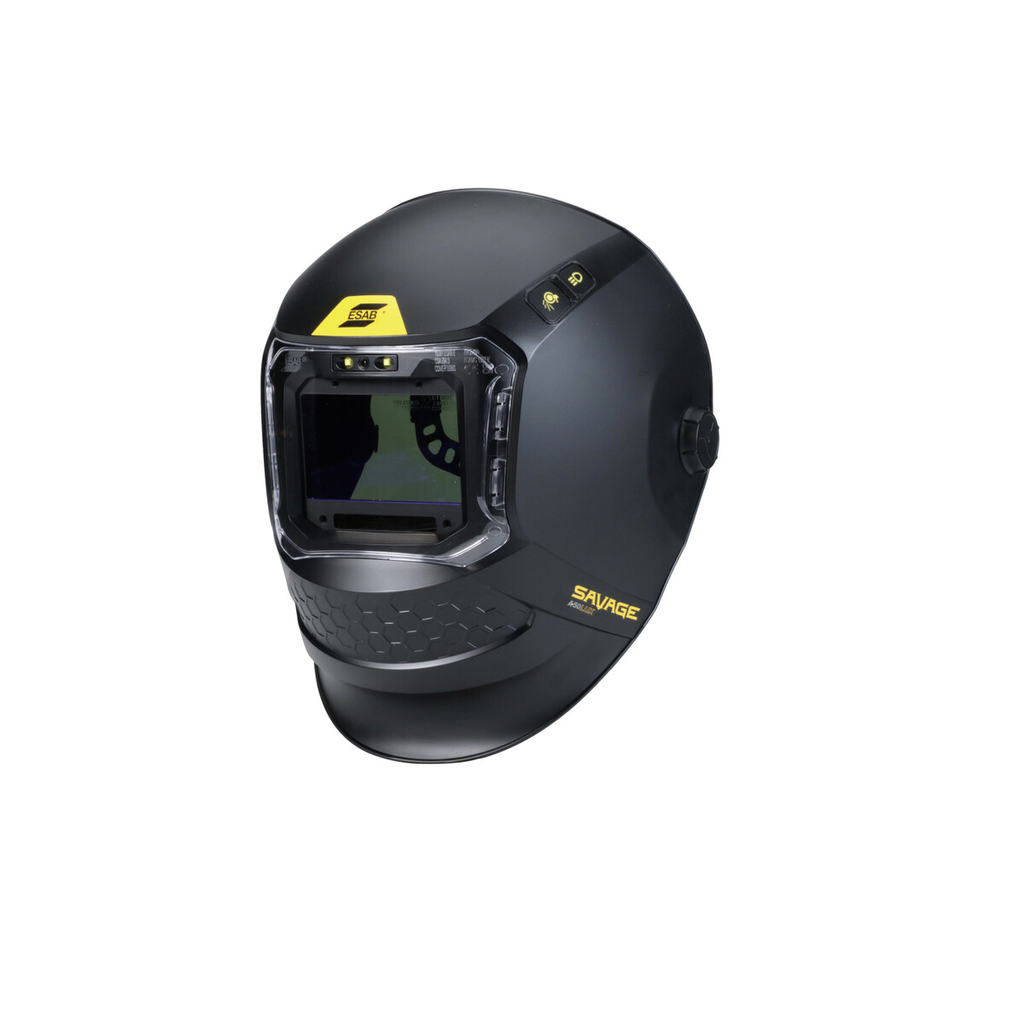

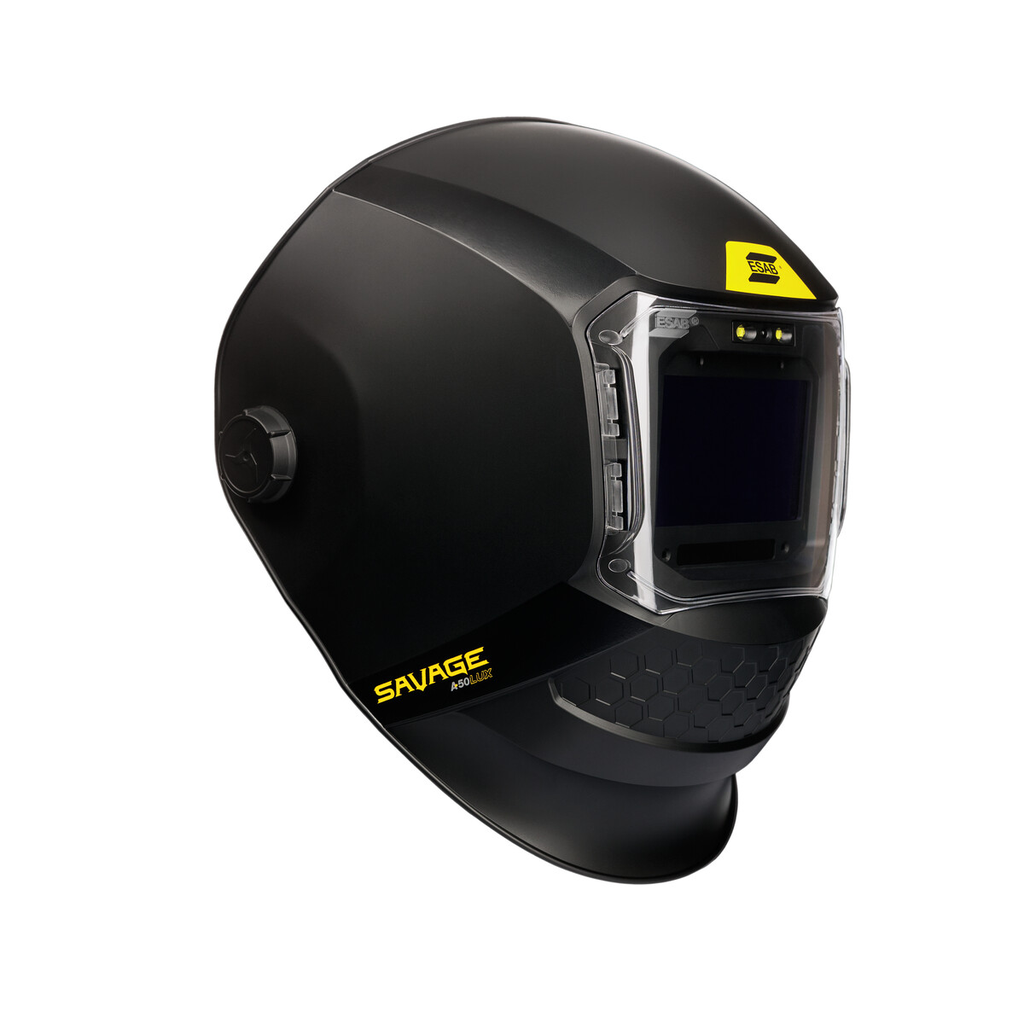

ESAB, 0700500950, Welding Helmet, Shade 3/5 13, 100 x 60 mm Viewing Area, 4 Arc Sensors, OpTCS True-Color Technology

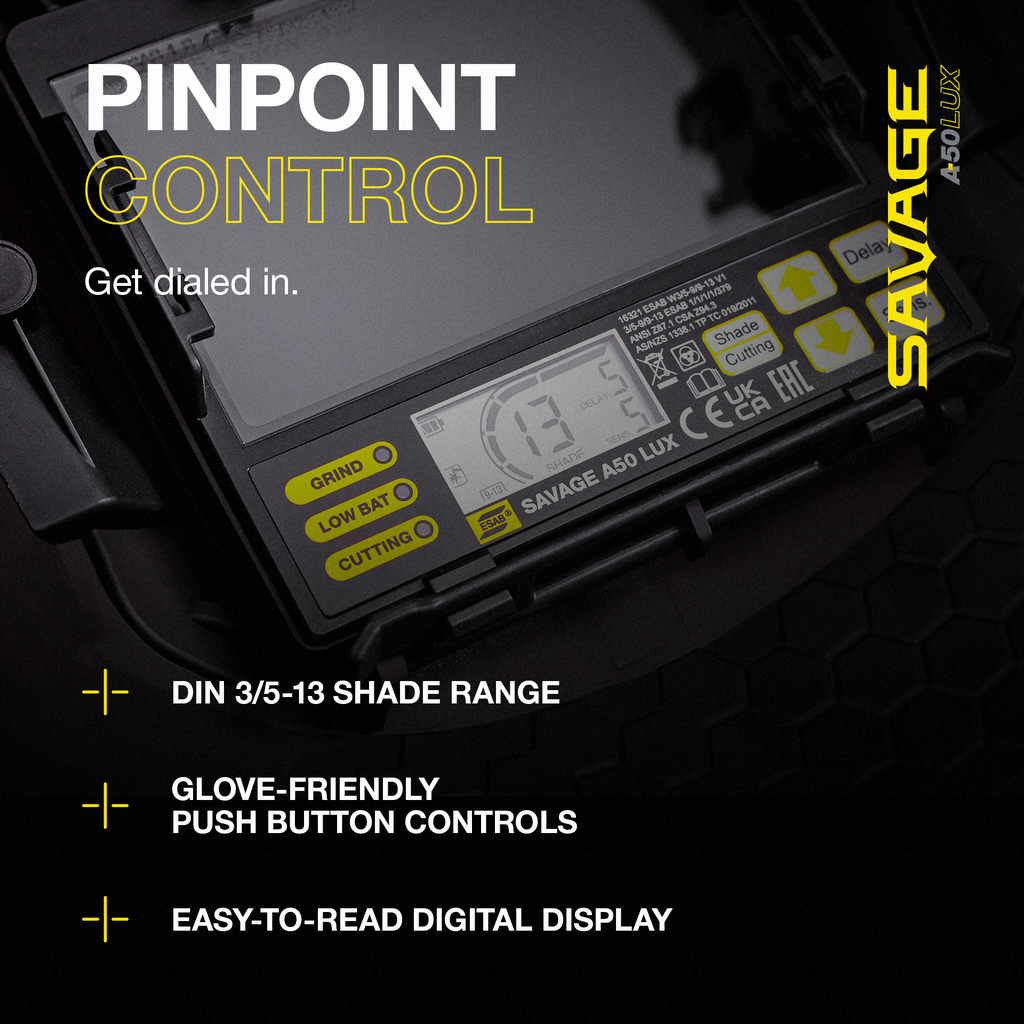

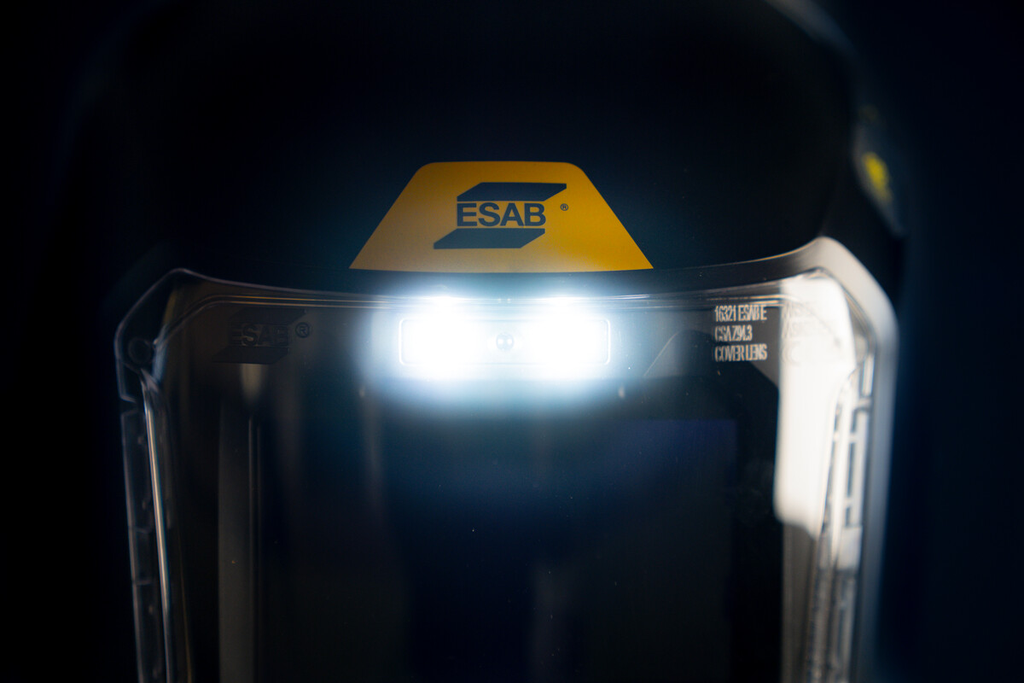

The Savage A50 LUX borrows from proven Sentinel A60 welding helmet performance to deliver advanced OpTCS true-color viewing at a flawless EN 1/1/1/1 optical level. The ADF features a simple,intuitive control panel that offers control over the most critical features related to all types of welding: wide shade selection; 5-steps of delay and sensitivity. Adding to the Savage A50 LUX’s versatility, is a 50-lumen, dual LED work-light, integrated behind the moulded front cover lens. The work-light is powered by it’s own “AA” battery, which offers long life using the integrated arc sensor, shutting the light off only when an arc or intense light is detected. The Halo headgear found in the Savage A50 LUX, is the same 5-point adjustable solution offered in the Sentinel A60.

Applications

• Welding, GMAW (MIG/MAG)
• Plasma Cutting
• Grinding
• Welding, SMAW/MMA (Stick)
• Welding, GTAW (TIG)
• Oxy Fuel Cutting
• Welding, PAW -Plasma Arc Welding

Accessories

• Savage A50 LUX Magnifying Lens +2.0 diopter ** 0700500963
• Savage A50 LUX Magnifying Lens +2.5 diopter ** 0700500964
• Savage A50 LUX / Sentinel A60 Universal Hard Hat Adapter 0700600871
• Savage A50 LUX Magnifying Lens +1.0 diopter ** 0700500961
• Sentinel A60 Front Sweat band 0700600869
• Savage A50 LUX Grind / LED Light Pushbuttons 0700500957
• Savage A50 LUX / Sentinel A60 Halo Headgear 0700600867
• Savage A50 LUX Front Cover Lens – Clear 0700500953
• Savage A50 LUX Auto Darkening Filter (excl. batteries) 0700500952
• Savage A50 LUX Helmet Shell 0700600958
• Savage A50 LUX
• Savage A50 LUX Magnifying Lens +1.5 diopter ** 0700500962
• Savage A50 LUX LED Work Light Assembly 0700500956
• Savage A50 LUX Front Cover Lens - Clear HC* 0700500954
• Savage A50 LUX Inside Cover Lens 0700500955

Features

• Replaceable CR2450 battery
• Viewing Area 100 x 60 mm (3.94 x 2.36 in.)
• Arc Sensors 4
• Advanced LED work-light with dedicated arc sensor and power supply
• Active Lens Shade 5–13 (Adjustable in 0.5 shade increments)
• Shade range: DIN 3/5–13
• ESAB OpTCS True-Color Lens Technology
• Switch Time (Dark to Light) Digitally adjustable from 0.1 to 0.9 second
• Easily-accessed LED work-light power button and separate external grind button
• Switch Time (Light to Dark) 0.07 ms
• Low battery and grind mode LEDs
• Passive Lens Shade 3
• Fast switching time of 0.07 millisecond

• Viewing Area: 100 x 60 mm (3.94 x 2.36 in) with internally-adjustable push-button controls
• Active Lens Shade: 5 13
• Passive Lens Shade: 3
• Shade Range: DIN 3/5 13
• Arc Sensors: 4
• Switch Time (Light to Dark): 0.07 ms
• Switch Time (Dark to Light): 0.1 to 0.9 second (digitally adjustable)
• Power Supply: 1 CR2450 battery / AA alkaline battery
• Work Light Power Supply: AA battery
• Work Light Output: 50 lumens
• CE Optical Classification: 1/1/1/1
• Standards and Certifications: CE EN175, EN379, EN166; ANSI Z87.1; CSA Z94.3; AS/NZS 1338.1; ISO 16321 + TIG
• Weight: 575 g (1.27 lbs)
• Process: Oxy Fuel Cutting, Plasma Cutting, Grinding, Welding GMAW (MIG/MAG), GTAW (TIG), PAW, SMAW/MMA (Stick)
• Lens Trade Name: ESAB OpTCS
• Trade Name: Savage
• Country of Origin: China
