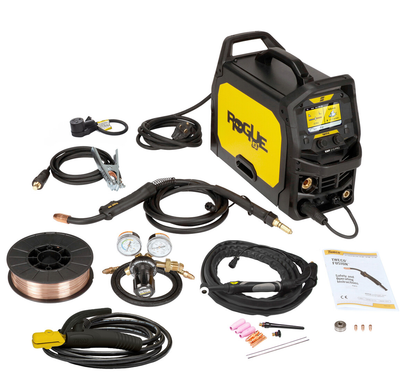

ESAB, 0700301085, Multi-Process Welder, 10 - 210 A, 120/230 V, Wire Feed Speed 75 - 650 ipm, Includes MIG Gun; Regulator

ESAB Rogue EMP 210 PRO is an inverter-based multiprocess welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding. With a weight of only 16.9 kg (37.3 lbs), dual voltage 120/230V single-phase input and compatibility with 11kVA (10 kW) generators, this system provides maximum flexibility and portability, both in the shop and in the field.

Features

• Jobs – 10 memory save/recall function
• Arc Dynamics – fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
• Power Factor Correction (PFC) – ensures a stable arc,resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)
• Energy Save Mode – after 2 minutes of inactivity the unit will enter this state to reduce power consumption
• IP23S rated for indoor/outdoor use
• Multi-language display – configure the display to 1 of 29 languages
• Intuitive 5.0 in TFT screen offers clear views with direct interaction
• Synergic Weld Programs – full range of welding parameters, 0.5 – 10.0 mm (0.020 – 0. 375 in.) with single knob control
• Unique rugged industrial design – supporting multiple lift points and cable management
• Spool Gun Ready – Rogue automatically configures set up when spool gun is connected (Spool gun sold separately)

Accessories

• Victor GRF400-320 Flowmeter Regulator, for CO2 0781-2703
• Tweco Fusion 180A MIG Gun, 3 m (10 ft) 1017-1338
• SR-26V, 8 m, gas cooled, OKC 50, Rmt.8, gas hose 3.8 m, 5/8-18 0700026633
• Victor GF-250-50-580, Flow Gauge Regulator, for Ar/CO2 0781-9411
• Basic Utility Cart (Single cylinder) 1444-0900
• Trolley 2-wheel with cylinder support 0460330882
• Work Clamp Leadset, 3 m (10 ft), 16 mm2, 35-50 OKC 0700006901
• Gas hose with 5/8 in. 18 RH fittings, 3 m (10 ft) 0700400858
• Tweco Spool Gun 160A, 3.6 m (12 ft) 1027-1397
• SR-17V, 8 m, gas cooled, OKC 50, Rmt.8, gas hose 3.8 m, 5/8-18 0700026631
• SR-26V, 4 m, gas cooled, OKC 50, Rmt.8, gas hose 3.8 m, 5/8-18 0700026632
• Electrode Holder Leadset, 3 m (10 ft), 16 mm2, 35-50 OKC 0700400852
• Power Adapter, 230 V to 120 V, 15 A W4014000
• MMA 4 Analogue Remote-Control incl. 10 m (33 ft) cable and 8-pin connector 0700500084
• TIG Foot Control, 4.5 m (15 ft) cable and 8-pin connector W4014450
• SR-17V, 4 m, gas cooled, OKC 50, Rmt.8, gas hose 3.8 m, 5/8-18 0700026630
• Tweco Spool Gun 200A, 3.6 m (12 ft) 1027-1398

Applications

• Agricultural Equipment
• Mechanical Contractors
• Repair and Maintenance
• Automotive Bodies
• Automotive
• Civil Construction
• Light Fabrication

• Amp Range: 10 - 210 Amps
• Wire Feed Speed: 75 - 650 ipm
• Input Voltage: 120/230 V single-phase
• Duty Cycle: MIG/MAG - 120 V: 100 A @ 25%, 82 A @ 60%, 63 A @ 100%; 240V: 210 A @ 25%, 136 A @ 60%, 105 A @ 100%; Stick- 120 V : 80 A @ 25%, 52 A @ 60%, 40 A @ 100%; 240V: 180 A @ 25%, 116 A @ 60%, 90 A @ 100%; TIG- 120 V: 125 A @ 25%, 81 A @ 60%, 63 A @ 100%; 240V: 210 A @ 25%, 136 A @ 60%, 105 A @ 100%
• Torch Amperage: 180 A
• Wire Size: 0.023 - 0.045 in.
• Maximum Plate Thickness: 3/8 in.
• Wire Type: Mild Steel, Stainless Steel, Aluminum, Flux Cored
• Process: MIG/MAG (GMAW), Stick (SMAW), TIG (GTAW)
• Weight: 16.9 kg (37.3 lbs)
• Physical Size: 24 x 18 x 18 in.
• Lead Cord Length: 10 ft.
• Cable Length: 10 ft.
• Remote Control Cable Length: 10 m (33 ft)
• Foot Control Cable Length: 4.5 m (15 ft)
• Gas Hose Length: 3.8 m (12.5 ft)
• Gas Hose Fitting: 5/8 in. 18 RH
• Input Voltage: 120/230 V single-phase
• Phase: Single
• Power Factor Correction: Yes
• Wire Spool Size: 4 in, 8 in
• Country of Origin: China
• Display Size: 5.0 in TFT
• Ingress Protection: IP23S
