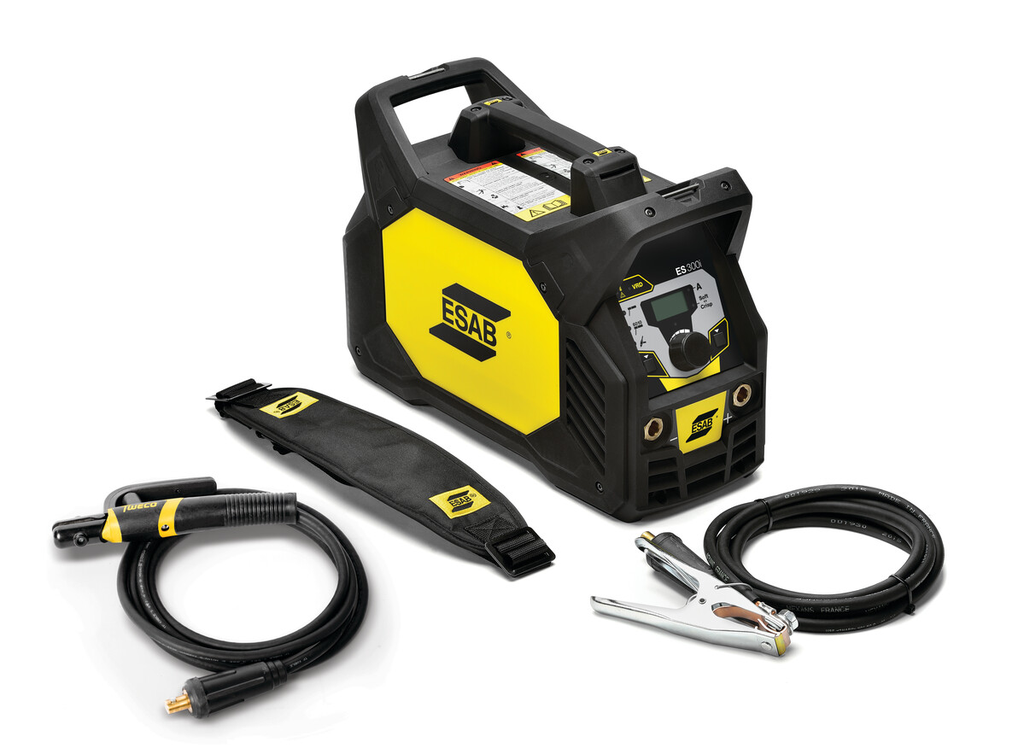

ESAB, 0445100881, Stick/TIG Welder, 230 V; 460 V, 5 - 300 A, Single/Three Phase

ESAB® A small but stout 33-pound (15 kg) unit, Renegade™ ES 300i is a groundbreaking combination of PORTABILITY and POWER. It has the highest power to weight ratio in its class designed to virtually go anywhere on the job site. Renegade ES 300i handles single- and three-phase power from 208V to 460V automatically, and puts out 5 to 300 Amps.

Accessories

• Remote control cable, 30 ft. (10 m) for ER 1 0445450881
• OKC 50 male cable plug 13733936
• TIG Torch Adapter QDA-26R
• Remote control cable, 15 ft. (5 m) for ER 1 0445450880
• Work Cable GC-500 15 ft. (5 m) 4/0 0558102318
• Electrode Cable T316 15 ft. (5 m) 2/0 0558102319
• Remote control cable, 30 ft. (10 m) for ER 1 F 0445451881
• ER 1 Remote Control incl. 15 ft. (5 m) cable 0445536880
• ER 1 F Remote Foot Control 15 ft. (5 m) 0445550880
• Remote control cable, 15 ft. (5 m) for ER 1 F 0445451880
• 26V-12R TIG Torch 12.5 ft. (3.8 m) Q26V-12R

Applications

• Maintenance And Repair
• Civil Construction
• Agricultural Equipment
• Industrial And General Fabrication
• Training Schools
• Mechanical Contractors
• Industrial Production And Manufacturing

Features

• Intuitive interface – the machine’s digital readout display, along with large buttons with excellent feedback and controls, make it easy to set parameters and read them from a distance.
• Highest power to weight ratio in its class weighing in at 33 lbs. (15 kg) and producing 300 A at 40% duty cycle. Combined with its rugged case, Renegade is ideal for the most extreme environments in the industry.
• IP23
• Small, lightweight system can virtually go anywhere on the jobsite. Its three handle design makes it easy for transportation and maneuvering through manholes and other hard to reach areas.
• Cable management – an integrated latch system helps control cables so they can be secured to the machine, making it easy to pack up and go
• Excellent performance on 6010 (cellulosic) electrodes and additional functionally to tailor Arc Force for a softer or crisper arc. With an excellent TIG operational range from 5 to 300 A, you’ll have the confidence to tackle a broad range of material thicknesses.

• Voltage: 230 V, 460 V, Single or Three Phase
• Output Amps (Max): 300 A
• Amp Range: 5 - 300 A
• Duty Cycle: Stick 3ph: 40% @ 300 A, 60% @ 250 A, 100% @ 200 A; TIG 3ph: 60% @ 300 A, 100% @ 250 A; Single or 3ph 100% @ 200 A
• Input Current Draw: 10 A (400-460 V), 11 A (380 V), 20 A (230 V)
• Power Factor at Max Current: 0.96
• Efficiency at Max Current Stick: 89%
• Efficiency at Max Current TIG: 85%
• Energy Save Mode: 91 W
• Open Circuit Voltage (VRD): 48 V (32 V)
• Dimensions (LxWxH): 18.1 x 7.9 x 12.6 in (460 x 200 x 320 mm)
• Weight: 33 lbs (15 kg)
• Lead Cord Length: 10 ft.
• Phase: Single or Three Phase
• Process: TIG, Stick
• Output Mode: CC
• Material: Not specified
• Protection Class: IP23
• Compliance: CSA, CE
• Country of Origin: Poland
• Trade Name: RenegadeTM | RenegadeTM ES 300i
