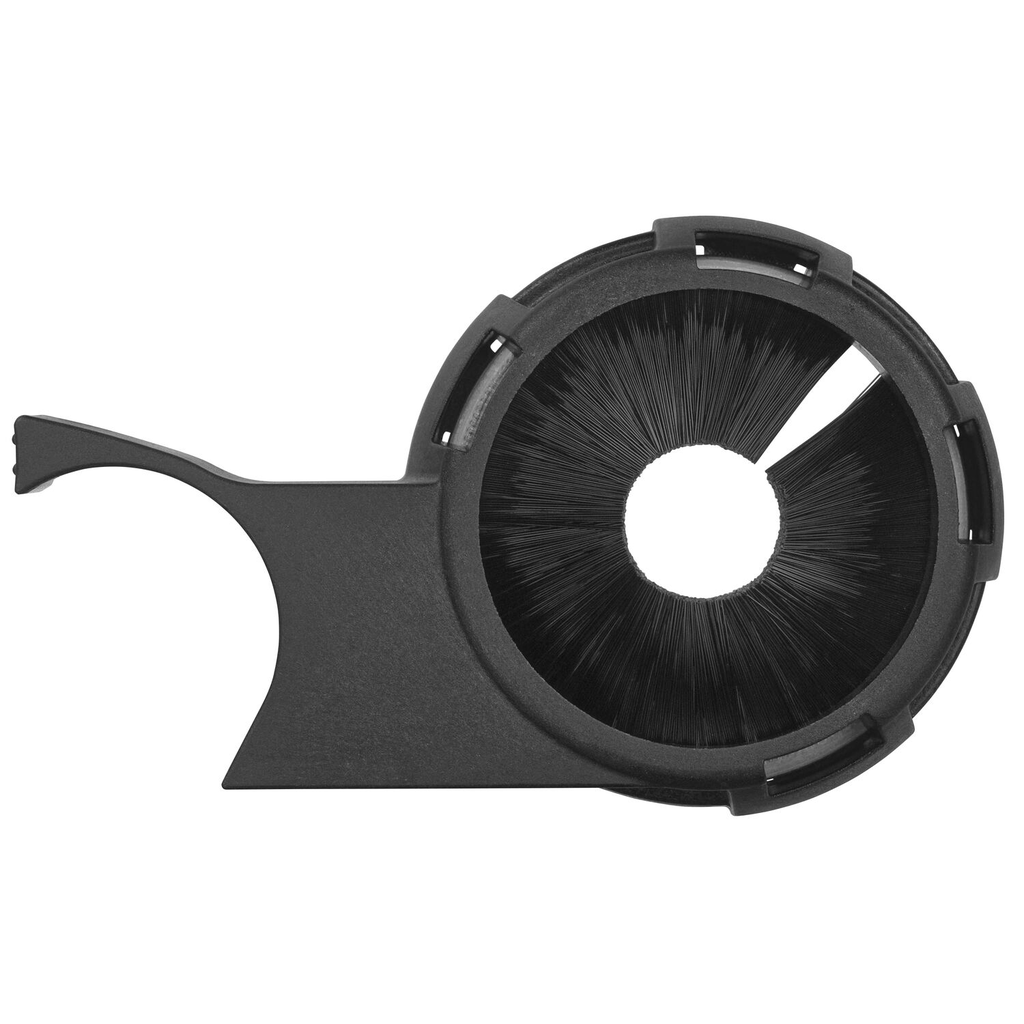

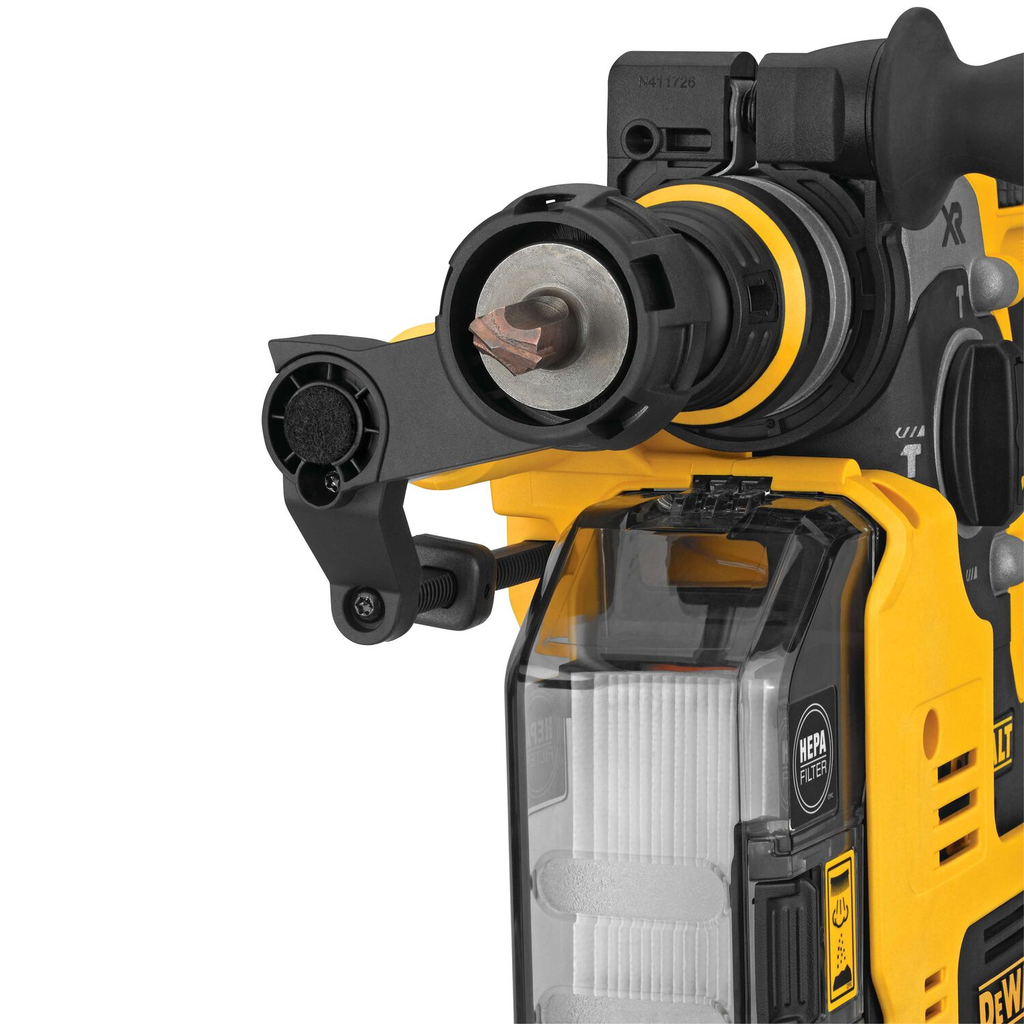

These Stop Bit Head Replacements for our Onboard Dust Extractors feature tool-free attachment. Easily change or replace in seconds. When a Bit Head wears out, just remove it, snap on a new one, and keep working. Use them with our DEWALT DWH303DH or D25303DH Onboard Dust ExtractorS as part of an OSHA Table-1 compliant solution when installing virtually any concrete anchor system, including MINI-UNDERCUT+ and Smart DI+.

Includes

  • (3) Standard Drill Bit Head

Features

  • Use with Onboard Dust Extractors for OSHA Table-1 compliant solution while drilling holes with up to 1-1/2 in. diameter shouldered stop bits
  • Easy installation and removal to help users save time when changing or replacing Drill Bit Head

Disclaimer

  • The Stop Bit Head can be used with bit diameters up to 5/8 in. with a 1-1/2 in. wide shoulder. | NOTE: This head is intended for use only with stop bits that meet the above specifications.
  • Width: 2.559 in
  • Length: 3.622 in
  • Height: 4.016 in
  • Weight: 0.270 lbs
  • Shoulder Width: 1-1/2 in
  • Compatible Bit Diameter: up to 5/8 in
  • Battery Included: No
  • Country of Origin: China
