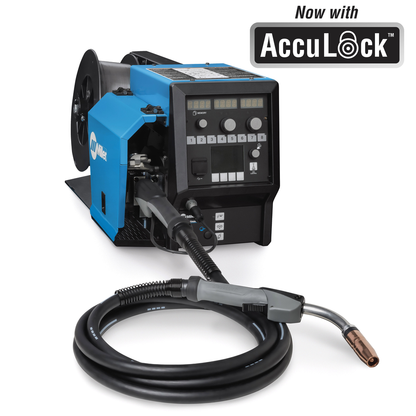

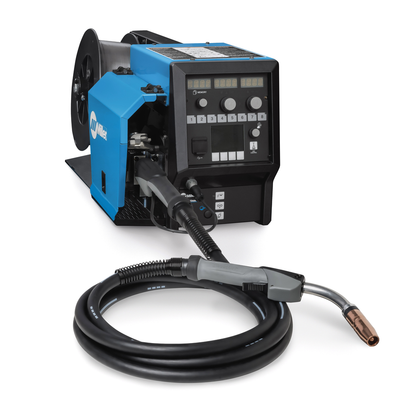

Miller Electric, 951631001, MIG Wire Feeder, Continuum Series, Tru-Feed Technology, Tool-less Drive Roll Adjustment

Advanced, industrial wire feeder with Tru-Feed™ technology improves productivity through weld quality, ease of use and system flexibility. Designed for use with a Continuum power source.

Features

• Balanced-pressure drive-roll design and tensioners: Feed wire in its truest and straightest form for better feedability, resulting in better welding performance.
• AccuLock S Consumables: AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
• Tool-less lockable rotatable drive: Allows operator to rotate the drive, eliminate severe bends in the wire feeding path Extends gun-liner life Aids in feeding difficult wires
• Spring-loaded Accu-Mate™ connection: Aligns gun perfectly in the drive-roll carrier — preventing the gun from being pulled loose and providing consistent wire feeding.
• Quick-change dual-bearing drive rolls: Provide more consistent wire feeding.
• New low-inertia motor: Provides faster response for the best arc starts with the least amount of spatter.
• Drive rolls and guides: Common with other Miller industrial feeders (use existing, not new parts). Inlet guide installation is tool-less.

• Input Welding Circuit Rating: 500 A at 100% duty cycle
• Wire Feed Speed: 50 1000 ipm (1.27 25.4 m/min)
• Wire Diameter Capacity: .035 5/64 in. (0.9 2.0 mm)
• Maximum Spool Size: 18 in. (457 mm), 60 lb. (27 kg)
• Input Power: 50 VDC
• Dimensions: H: 13.81 in. (351 mm), W: 16.31 in. (414 mm), D: 29.69 in. (754 mm)
• Net Weight: 43 lb. (19.5 kg)
• Drive Design: Balanced-pressure drive-roll design and tensioners
• Motor Type: Low-inertia motor
• Drive Features: Tool-less lockable rotatable drive, Quick-change dual-bearing drive rolls
• Connection Type: Spring-loaded Accu-Mate connection
• Installation: Tool-less inlet guide installation
• Country of Origin: United States
• Series: ContinuumTM
