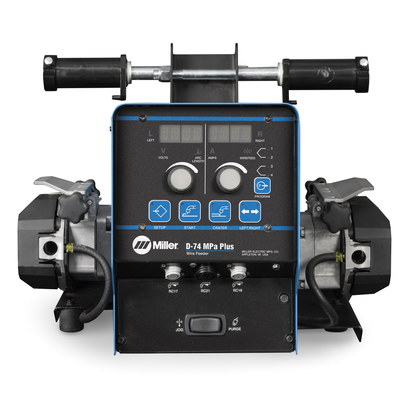

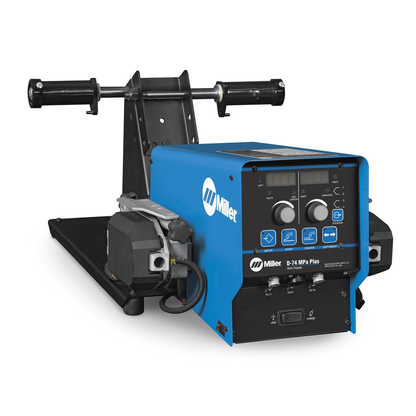

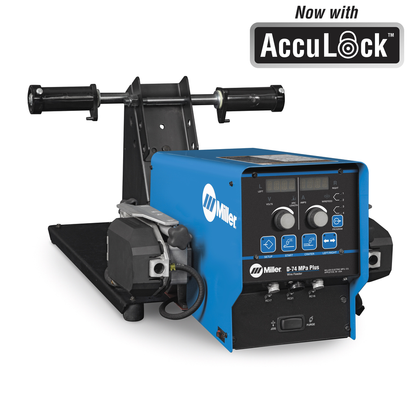

Miller Electric, 951292001, Wire Feeder, Bench, 50-780 IPM, Aluminum; Solid Wire; Flux Cored

Expanded capabilities from 74D, adds push-pull aluminum capabilities. Optimized with Invision™ MPa or XMT® MPa power sources.

Features

• Synergic Pulsed MIG. As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments. Profile Pulse™ provides TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.
• Ensure accuracy when presetting and reading actual voltage, amperage and wire feed speed.
• Gives you the ability to use the extended reach of a push-pull system for consistent, versatile and dependable aluminum wire feeding.
• Remote wire feeder control boxes and wire drive assemblies are available for non-Miller boom applications.
• Dedicated XR™-Pistol Plus and XR-Aluma-Pro™ Plus guns work with this feeder to coordinate wire feed speed of the gun and the feeder. This provides optimized aluminum feeding and welding performance.
• Allows you to set both voltage and wire feed speed at the feeder, saving time and increasing weld quality because optimal weld parameters are easy to set.
• Properly seats the MIG gun power pin for best feeding performance.
• AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
• Save time when switching between two weld settings by simply tapping gun trigger.

Includes

• BTB 400A Gun, Qty 2
• D-74 MPa Plus (Dual)
• .035-.045 reversible dual V drive rolls, 2 sets

• Input Circuit Welding Rating: 750A at 100% duty cycle
• Amperage: 400A
• Wire Diameter Range (in): 0.023-0.094
• Wire Feed Speed Range (IPM): 50-780
• Wire Feeder Type: Bench
• Material Type: Aluminum, Solid Wire, Flux Cored
• Input Frequency: 50/60 Hz
• Welding Power Source Type: CV, DC
• Power Source Compatibility: CV, Invision MPa, XMT MPa
• Welding Process: Synergic Pulsed MIG
• Drive Rolls: Dual V drive rolls, 2 sets
• Gun Type: BTB 400A Gun, Qty 2
• Feeding System: Push-pull aluminum capable
• Min Wire Diameter - Aluminum (in): 0.03
• Max Wire Diameter - Aluminum (in): 0.0625
• Min Wire Diameter - Flux Cored (in): 0.023
• Max Wire Diameter - Flux Cored (in): 0.094
• Country of Origin: United States
