Miller Electric, 301619, Wire Feeder, Portable, up to 60 lb spool, Max Wire Diameter 3/32 in, 780 IPM

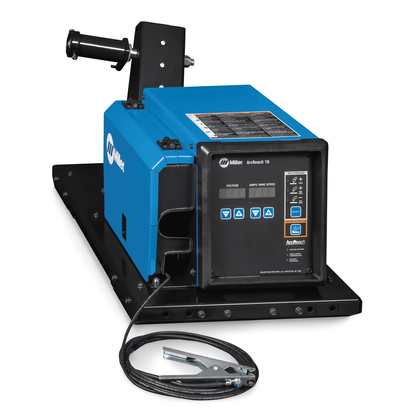

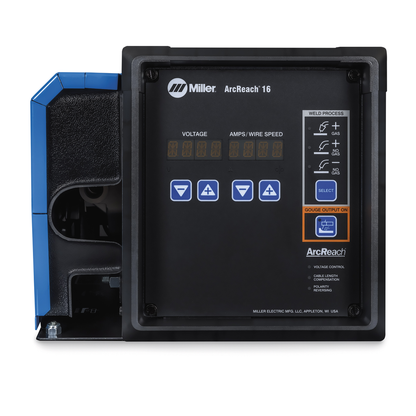

The ArcReach® 16 wire feeder base model is equipped with a simple interface that allows operators to adjust parameters at the point of use with no control cords. Switch between welding and gouging with a push of a button with no need to swap leads or disconnect. It can also handle large-diameter wire (3/32).

Features

• Isolated gouging stud allows easy connection for gouging at point of use, eliminating the need to disconnect the wire feeder and to swap leads.
• The elimination of feeder control cords and field assembly IP23 rating provides a solid solution to last in harsh environments.
• Simply connect the ArcReach 16 wire feeder to your weld lead and you are ready to go. Switch between welding and gouging with a push of a button with no need to swap leads or disconnect the wire feeder with isolated outputs.
• Weld with up to 60-pound spools and large diameter (3/32 in.) wire to minimize downtime and maximize productivity.

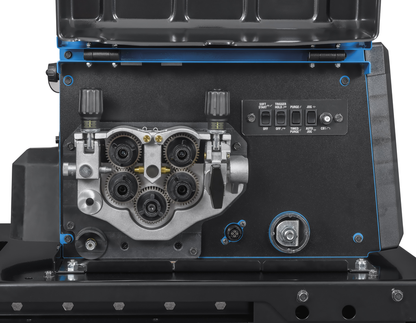

• Heavy-duty drive motor with tachometer control provides wire feed speed that is accurate and consistent from the start of the weld to the finish and from one weld to the next, providing consistent arc quality. Wide voltage range for small and large wires with no contactor chatter or arc outages.

• Wire Feed Speed: 50 to 780 IPM
• Max Wire Diameter - Solid Wire: 0.078125 in
• Max Wire Diameter - Flux Cored: 0.09375 in
• Min Wire Diameter - Solid Wire: 0.035 in
• Min Wire Diameter - Flux Cored: 0.045 in
• Rated Carbon Diameter: 3/8 in (9.5 mm)
• Spool Capacity: up to 60 lb
• Weight: 101 lb
• Length: 32.8 in
• Width: 16.7 in
• Height: 15.3 in
• Welding Power Source Type: CC/CV
• Wire Feeder Type: Portable
• Ingress Rating: IP23
• Country of Origin: United States
