Miller Electric, 301552, Wire Feeder, Boom-Mounted, 360-Degree Rotation, 8- to 16-ft Boom

Swingarc boom-mounted wire feeders bring an extra dimension of flexibility and efficiency to weld stations dealing with large weldments, or wherever operator mobility is required.

Features

• In-boom cable routing organizes hoses and cables for a cleaner work environment.
• Counterbalance design makes it easy to position boom and 360-degree rotation and 60-degree lift angle maximizes work area
• EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
• Single- and dual-wire models with 8-, 12- or 16-foot booms are sized to accommodate a variety of weld cell layouts (16-, 24- or 32-foot diameter work area).

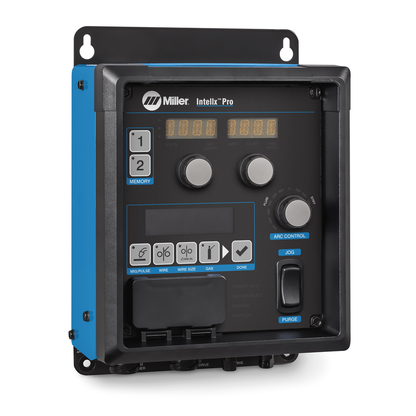

• Pulsed MIG-capable Deltaweld with Intellx Pro feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker. Make your move.

• Boom Length: 8 ft, 12 ft, or 16 ft
• Work Area Diameter: 16 ft, 24 ft, or 32 ft
• Rotation: 360 degrees
• Lift Angle: 60 degrees
• Welding Process: Pulsed MIG
• Width: 9.2 ft
• Length: 5.2 ft
• Height: 13.3 ft
• Weight: 15.3
• Country of Origin: United States
