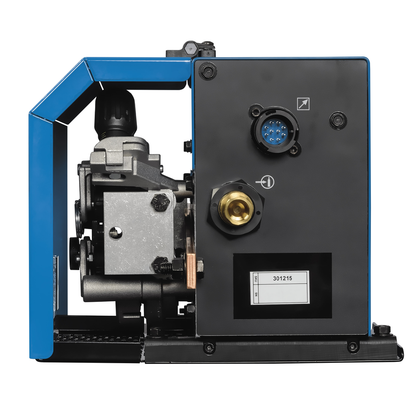

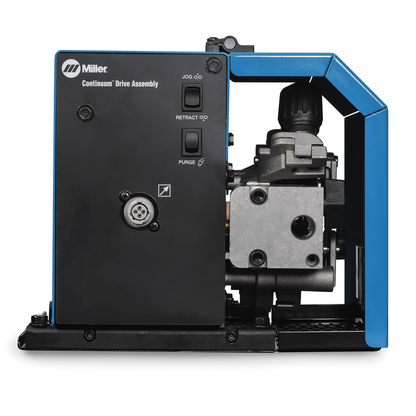

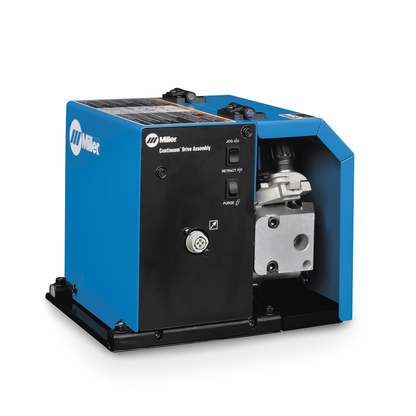

Miller Electric, 301215, Wire Feeder, Continuum Series, 9.2 in Length, Tool-less Lockable Rotatable Drive

Advanced, industrial wire feeder with Tru-Feed™ technology improves productivity through weld quality, ease of use and system flexibility. Designed for use with a Continuum power source.

Features

• Balanced-pressure drive-roll design and tensioners: Feed wire in its truest and straightest form for better feedability, resulting in better welding performance.
• Drive rolls and guides: Common with other Miller industrial feeders (use existing, not new parts). Inlet guide installation is tool-less.
• Spring-loaded Accu-Mate™ connection: Aligns gun perfectly in the drive-roll carrier — preventing the gun from being pulled loose and providing consistent wire feeding.
• Quick-change dual-bearing drive rolls: Provide more consistent wire feeding.
• Tool-less lockable rotatable drive: Allows operator to rotate the drive, eliminate severe bends in the wire feeding path Extends gun-liner life Aids in feeding difficult wires
• New low-inertia motor: Provides faster response for the best arc starts with the least amount of spatter.

• Length: 9.2 in.
• Height: 6 in.
• Width: 10 in.
• Weight: 18 lb
• Mounting Type: Tool-less lockable rotatable drive assembly
• Connection Type: Spring-loaded Accu-Mate connection
• Drive Roll Design: Balanced-pressure, dual-bearing, quick-change
• Motor Type: Low-inertia motor
• Installation: Tool-less inlet guide installation
• Series: ContinuumTM
• Country of Origin: United States
