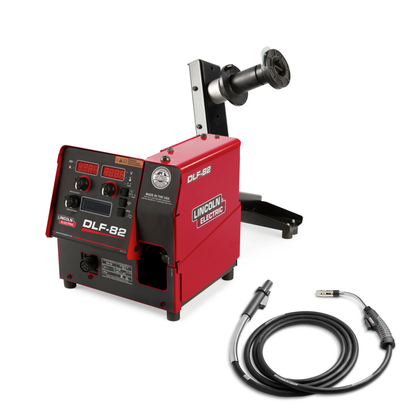

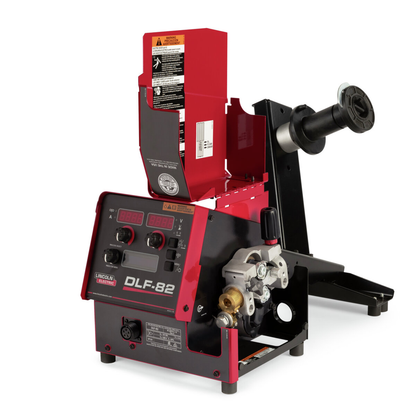

Lincoln Electric, K5282-3, Wire Feeder, Bench Model, Max Wire Diameter 5/64 in, Rated Output 600A, Max Spool Size 60 lb

The DLF-82 wire feeder is the ideal feeder to pair with Flextec power sources for Pulsed MIG as well as CV-MIG welding applications. Designed to combine the latest welding innovation with easy, operator-focused control features, this wire feeder/power source solution delivers the benchmark of simplicity and performance.

Features

• Memories – up to four stored weld schedules for easy changes between different welds. Easily configurable from 1-4 memories.
• Simple to Use – For synergic setup, choose desired weld process, wire type, wire diameter and gas type.
• Limits/Lockouts – reduces chance of accidental welding out of procedure
• Simple System Configuration – Includes integrated 5-pin ArcLink control cable, .035/.045 drive rolls, wire reel stand for up to 60-lb spools, Magnum 350 HDE weld gun.
• Synergic weld modes – one knob control. Set higher wire feed speeds for thicker materials and lower wire feed speeds for thinner materials. Voltage is automatically adjusted. (requires synergic compatible Flextec)
• Pulsed MIG Support – with pulse supporting Flextec power source – lower spatter, greater puddle control. (requires pulse compatible Flextec)
• MaxTrac Wire Drive – proven performance, consistent and reliable wire feeding
• Customizable Start and Crater Settings – greater control over weld profile at start and end of weld.
• Auto Settings – run-in speed, pre-flow, post-flow, burn-back are auto-set based on setup configuration. (requires auto-settings compatible Flextec)

What's Included?

• (1) K5282-1 DLF-82 Wire Drive, (1) Integrated ArcLink Control Cable 8 ft, (1) K5284-1 DLF-Feeder Wire Reel Stand, (1) KP1696-1 Drive Roll Kit 0.035/0.045 in, (1) K4532-2-10-45 Magnum PRO Welding Gun 0.045 in - 15 ft

• Input Voltage: 40 VDC
• Rated Output Current: 600A @ 60%
• Wire Feed Speed Range: 50 - 800 ipm (1.3 - 20.3 m/min)
• Solid Wire Diameter Range: 0.023 - 1/16 in (0.58 - 1.6 mm)
• Max Wire Diameter (Cored): 5/64 in (2 mm)
• Process Compatibility: MIG (GMAW); Pulsed MIG (GMAW-P); Flux-Cored Self-Shielded (FCAW-S); Flux-Cored Gas-Shielded (FCAW-G)
• Length: 25.6 in (320 mm)
• Width: 12.0 in (305 mm)
• Height: 15.9 in (403 mm)
• Weight: 43 lb (19.5 kg)
• Drive Roll Sizes: 0.035 in, 0.045 in
• Welding Gun Length: 15 ft
• Max Spool Size: 60 lb
• Control Cable Length: 8 ft
• Feedhead Configuration: Single
• Feeder Type: Bench
• Number of Driven Rolls: 2 rolls
• Gun Bushing: Tweco #2-#4
• Ingress Protection Rating: IP2X
• IEC Rating: 60974-10
• Communication Technology: ArcLink
• Country of Origin: United States
• Warranty Length: 3 Years
